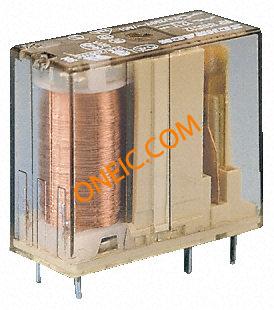

RP820012
| Manufacturer | |
| Description | General Purpose Relays DPDT 8A 12VDC PLUGIN RELAY GEN PURPOSE DPDT 8A 12V RELAY RPII 12V/8A 2RT Electromechanical Relay DPDT 14A 12VDC 270Ohm Through Hole Electromechanical Relay DPDT 14A 12VDC 270Ohm Through Hole Product Highlights:RPII/2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAYRPII12V/8A2RT TE Connectivity 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 12V dc |
| Category |
Business
| Lead Time | 94 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 9-1393234-0 | Product Category | General Purpose Relays |
| Standard Package | 500 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Coil Type | Monostable | Coil Power | 500 mW |
| Coil Current | 44.4mA | Release Time | 3ms |
| Voltage Rating | 12Vdc | Coil Resistance | 270 Ohms |
| Voltage - Supply | 12VDC | Switching Voltage | 400VAC - Max |
| Power - Peak Pulse | 2 kVA | Vgs(th) (Max) @ Id | 1.2 VDC |
| Current Rating (Max) | 8A | Power - Output Surge | 2 kVA |
| Power - Average Forward | 500 mW | Vce(on) (Max) @ Vge, Ic | 8.4 VDC |
| Contact Rating (Current) | 8A | ||
Mechanical
| Depth | 12.6mm | Width | 12.6 mm |
| Height | 25.5 mm | Length | 29 mm |
| Packaging | Tube | Termination | ThroughHole |
| Contact Form | 2 Form C (DPDT-BM) | Mounting Type | Through Hole |
| Terminal Type | Through Hole | Mounting Style | PCB |
| Contact Material | Silver Cadmium Oxide | Size / Dimension | 29 x 12.6 x 25.5mm |
| Termination Style | PC Pin | Contact Termination | Pin |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Power Relay | Series | RPII/2 |
| Features | Sealed - Fully | Function | ACSwitching |
| Relay Type | General Purpose | Application | 电源 |
| Manufacturer | RPIISeries | Industry Aliases | 9-1393234-0, RP820012 |
| Application Specifics | Power | ||
Environmental
| Operate Time | 9ms | Operating Temperature | -40°C ~ 70°C |
| Maximum Temperature Limit | +70°C | ||
