点击放大查看
PT78742
| Manufacturer | |
| Description | Relay Sockets & Hardware Premium sckt 4 pole screwless clamps SOCKET W/SCREW FOR DINRAIL 4P Relay Socket For Use With PT5 Series Conn Relay Socket SKT 4 POS Screw ST SOCKET, FOR PT5 DIN LOGICAL Socket,Relay;DIN-rail,4Pole,In/OutArrangement,ScrewTypeTerminals |
| Category |
Business
| Part # Aliases | 1-1415526-1 | Product Category | Relay Sockets & Hardware |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :VDE | ||
Electrical
| Voltage Rating | :240V | Number of Poles | 4 |
| Voltage - Breakdown | :2500VAC | Current Rating (Max) | :6A |
Mechanical
| Depth | :61mm | Width | :27.2mm |
| Length | :77mm | Weight | :60g |
| Packaging | Tray | Wire Gauge | :2.5mm² |
| Mounting Type | DIN Rail | Terminal Type | :Screw |
| Connector Type | :Screw | Mounting Style | DIN Rail |
| Termination Style | Screw | Number of Positions | 14 |
| Wire Gauge or Range - mm2 | :4mm² | ||
Product Info
| Type | Socket | Series | PT5 Mini Relays |
| Accessory Type | Sockets | For Use With/Related Products | PT, PTH and KHA Series |
Environmental
| NEMA Frame Size | :IP20 | Operating Temperature | :70°C |
Similar Parts

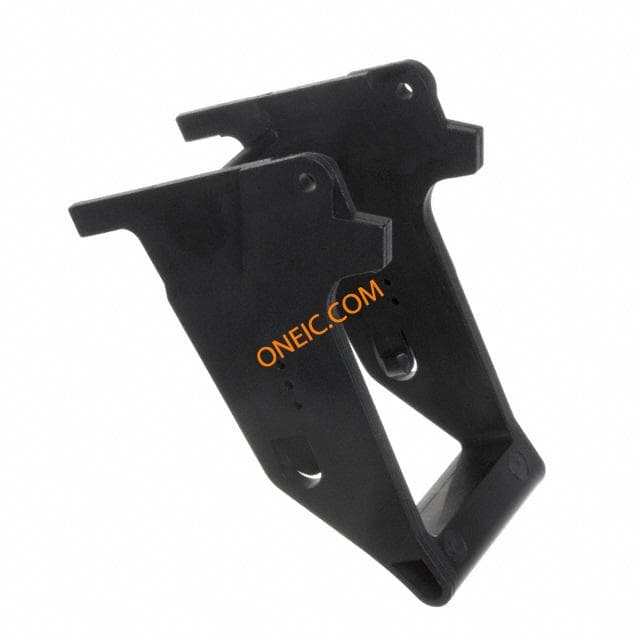

PT17021
TE Connectivity / Schrack
Relay Sockets & Hardware Plastic retaining clip RETAINING CLIP FOR 29MM PT78 Retaining clip for PT series Connector Accessories Relay Socket Plastic Retaining Clip Strip PlasticRetainingClip,RelayHeight29mm
PT570524
TE Connectivity / Schrack
General Purpose Relays 4P SLDR TST BTN 24AC RELAY GEN PURPOSE 4PDT 6A 24V 4PDT plug-in relay,6A 24Vac coil Electromechanical Relay 4PDT 12A 24VAC 192Ohm Plug-In Electromechanical Relay 4PDT 12A 24VAC 192Ohm Plug-In Product Highlights:PT SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 6 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC RELAY, PLUG-IN, 24VAC 4PDTplug-inrelay,6A24Vaccoil PT570524
PT17040
TE Connectivity / Schrack
Relay Sockets & Hardware MARKING TAG PT78722 PT78742 MARKING TAG FOR PT78 Marking tags for PT sockets MARKING TAG, FOR DIN PT SCCKET Acessory;Markingtag,PTSeries

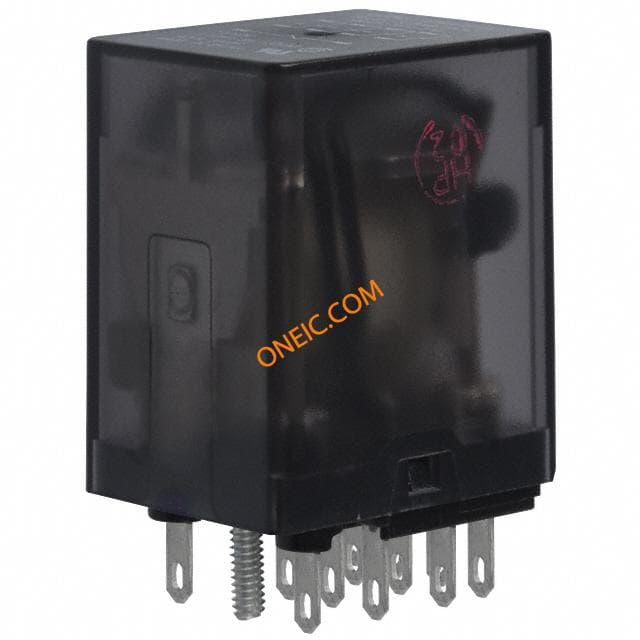

KHAU-17D18-24
TE Connectivity / P&B
General Purpose Relays 4PDT 3A 24VDC 650Ohm Relay Socket RELAY GEN PURPOSE 4PDT 3A 24V Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 24VDC, 3A, PLUG IN KHAU-17D18-24=KH
PT52AS15B
TE Connectivity
General Purpose Relays 4 Form C plug-in 115VAC LED RELAY GEN PURPOSE 4PDT 6A 115V Electromechanical Relay 4PDT 6A 115VAC 4.845KOhm Socket RELAY,MINIATURE,115VAC,PLUG-IN,4PDT,LED
KHAU-17D11-12
TE Connectivity / P&B
General Purpose Relays 4PDT SCKT MT 12VDC RELAY GEN PURPOSE 4PDT 3A 12V Relay,E-Mech,GenPurp,4PDT,Cur-Rtg3A,Ctrl Electromechanical Relay 4PDT 5A 12VDC 160Ohm Socket Electromechanical Relay 4PDT 5A 12VDC 160Ohm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 12VDC, 3A, PLUG IN Relay;E-Mech;GenPurp;4PDT;Cur-Rtg3A;Ctrl-V12DC;Vol-Rtg120/28AC/DC;SocketMnt TE Connectivity 4 刀双掷 插入式 非闭锁继电器, 12V KHAU-17D11-12=KH
PT580615
TE Connectivity / Schrack
General Purpose Relays 4PDT 6A 115VAC MINIATURE PWR RELAY RELAY GEN PURPOSE 4PDT 6A 115V Industrial Relays (General Purpose) Industrial Relays (General Purpose) Product Highlights:PT SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 6 Amps.Monostable Coil Magnetic SystemInput Voltage = 115 VAC PT580615

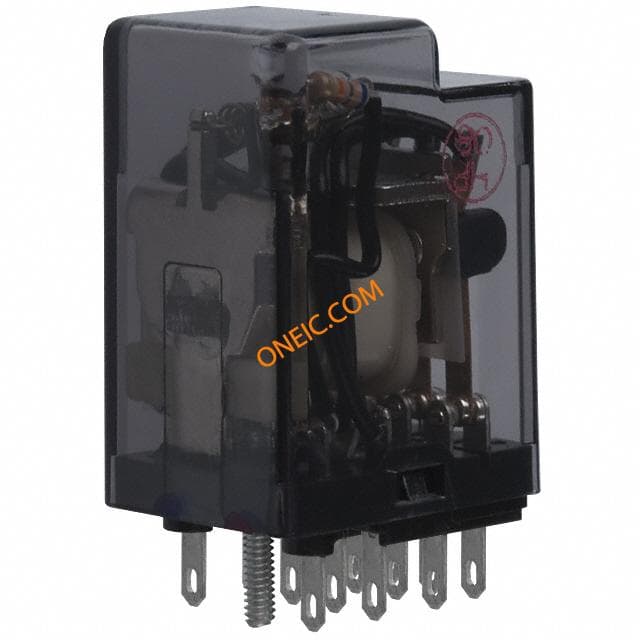

KHAU-17A12N-120
