5-1393122-8
| Manufacturer | |
| Description | Electromechanical Relay 4PDT 5A 48VDC 2.6KOhm Socket RELAY GEN PURPOSE 4PDT 5A 48V Electromechanical Relay 4PDT 5A 48VDC 2.6KOhm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | ||
Electrical
| Coil Type | Non Latching | Coil Power | 900 mW |
| Coil Current | 18.75mA | Release Time | 6ms |
| Coil Resistance | 2.6 kOhms | Voltage - Supply | 48VDC |
| Switching Voltage | 240VAC - Max | Vce(on) (Max) @ Vge, Ic | 36 VDC |
| Contact Rating (Current) | 5A | ||
Mechanical
| Packaging | Bulk | Contact Form | 4PDT (4 Form C) |
| Mounting Type | Socketable | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Termination Style | Plug In | ||
Product Info
| Features | Insulation - Class B | Relay Type | General Purpose |
Environmental
| Operate Time | 13ms | Operating Temperature | -45°C ~ 70°C |
Similar Parts
1860000-1
te connectivity / p&b
Conn Relay Socket SKT 14 POS Solder ST PT7874P SOCKET RELAY 4P DIN SCREWLESS Conn Relay Socket SKT 14 POS Solder ST Search Keywords:relay connectors Relay socket, 1860000-1, TE Connectivity
PT78600
TE Connectivity / Axicom
Relay Sockets & Hardware SCKT 4POLE SLD TERM SOCKET 4POLE SLD TERM PT Relay Socket For Use With PT Series Conn Relay Socket SKT 14 POS Solder ST Panel Mount Socket,Relay;PCBMount,4Pole,SolderTerminals
PT78604
TE Connectivity / Axicom
Relay Sockets & Hardware SOCKET 4POLE PCB SOCKET 4POLE PCB PT Relay Socket For Use With PT Series Conn Relay Socket SKT 15 POS Solder ST Thru-Hole SOCKET, PCB, PT SERIES Socket,Relay;PCBMount,4Pole,PCBTerminals
27E007
TE Connectivity / P&B
Relay Sockets & Hardware PC MT KH/KHA-S U SOCKET PC MOUNT FOR KHA SERIES Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Product Highlights:SocketKHA Series, KHS SeriesNumber of Poles = 4Terminal Type = PCTerminal Length = 5.54 mm RELAY SOCKET Socket,Relay;PC;4;PotterandBrumfieldBrand 27E007=SOCKET,KH,14,PC,PHEN,BL
PT78740
TE Connectivity / Schrack
Relay Sockets & Hardware PT DIN-rail socket w/screw typ terminal SOCKET FOR PT5 MINI RELAYS Relay Socket For Use With PT5 Series Conn Relay Socket SKT 14 POS Screw ST Panel Mount SOCKET, FOR PT5, DIN, SCREW TERMINAL Accessory;DIN-railsocketwithscrewtypeterminals,4pole
27E166
TE Connectivity / P&B
Relay Sockets & Hardware 4PDT SMT KH/KHA RELAY SOCKET CHASSIS MOUNT 4P Conn Relay Socket SKT 4 POS Screw ST Panel Mount Conn Relay Socket SKT 4 POS Screw ST Panel Mount Product Highlights:SocketKHA Series, KHS SeriesNumber of Poles = 4Terminal Type = ScrewWith Grounding Provision RELAY SOCKET, 14, 5A, 240VAC Socket,Relay;Screw;4;PotterandBrumfieldBrand 27E166=SOCKET,KH,14,SCW,PLES
PT78742
TE Connectivity / Schrack
Relay Sockets & Hardware Premium sckt 4 pole screwless clamps SOCKET W/SCREW FOR DINRAIL 4P Relay Socket For Use With PT5 Series Conn Relay Socket SKT 4 POS Screw ST SOCKET, FOR PT5 DIN LOGICAL Socket,Relay;DIN-rail,4Pole,In/OutArrangement,ScrewTypeTerminals
27E006
TE Connectivity / P&B
Relay Sockets & Hardware 2 4-POLE SLDR SOCKET SOCKET RELAY 4PDT SOLDER Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Product Highlights:SocketKHA Series, KHS Series, PT SeriesSocket Type = Panel Mount4 PolesTerminal Configuration = Solder RELAY SOCKET Socket,Relay;Solder;4;PotterandBrumfieldBrand 27E006=SOCKET,KH,14,SLG,G/T,PH
PT78741
TE Connectivity / Schrack
Relay Sockets & Hardware Conn Relay Scket SKT 4 POS Screw ST SOCKET W/SCREW FOR DINRAIL DIN-railsocketwithscrewtypeterminals,4pole,withprotectiondiodemodule
27E023
te connectivity / p&b
Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Relay Sockets & Hardware 4PDT PC TERM KH/KHA SOCKET PCB TERMINAL KH SERIES Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Product Highlights:SocketKHA Series, KHS Series, PT SeriesNumber of Poles = 4Terminal Type = PCTerminal Length = 5.54 mm RELAY SOCKET Socket,Relay;PC;4;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E023=SOCKET,KH,14,PC,PHEN,BL

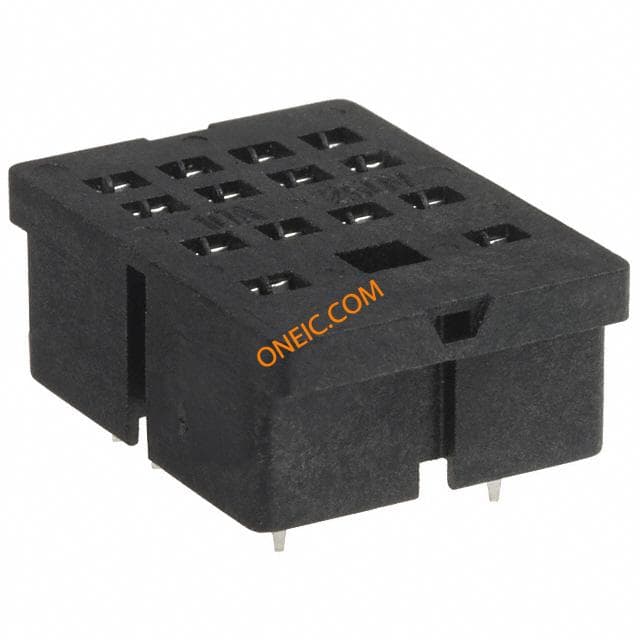

3-1415043-1
te connectivity / p&b
Conn Relay Socket SKT 15 POS Solder ST Thru-Hole Relay Sockets & Hardware PT78604 SOCKET 4POLE PCB PT Relay socket, 3-1415043-1, TE Connectivity PT78604

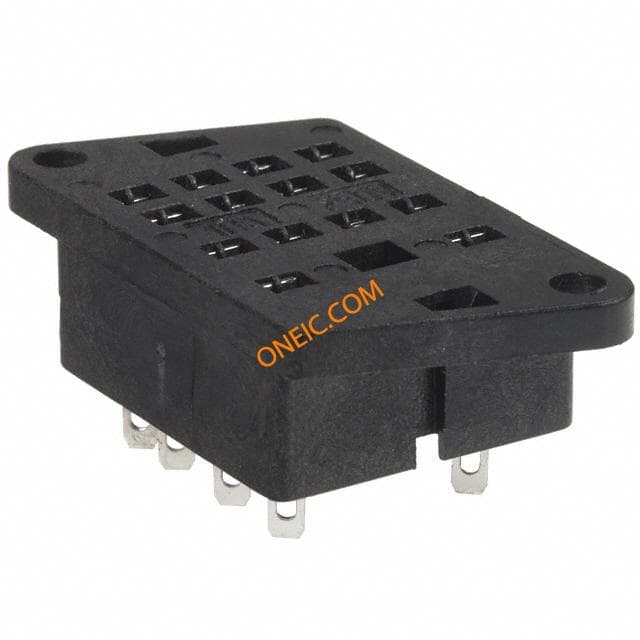

4-1415043-1
te connectivity / p&b
Conn Relay Socket SKT 14 POS Solder ST Panel Mount General Purpose / Industrial Relays PT78600 SOCKET 4POLE SLD TERM PT PT78600
27E894
te connectivity / p&b
Conn Relay Socket SKT 4 POS Screw ST Panel Mount Relay Sockets & Hardware 4PDT DIN MT KH/KHA RELAY SOCKETS RAIL MOUNT Socket; Screw; 4; Potter and Brumfield Brand Conn Relay Socket SKT 4 POS Screw ST Panel Mount Product Highlights:SocketKHA Series, KHS Series, PT SeriesNumber of Poles = 4Terminal Type = ScrewWithout Grounding Provision Socket,Relay;Screw;4;PotterandBrumfieldBrand 27E894=SOCKET,KH,14,SCW,POLY,N
5-1415034-1
te connectivity / p&b
PT78741 SOCKET W/SCREW FOR DINRAIL

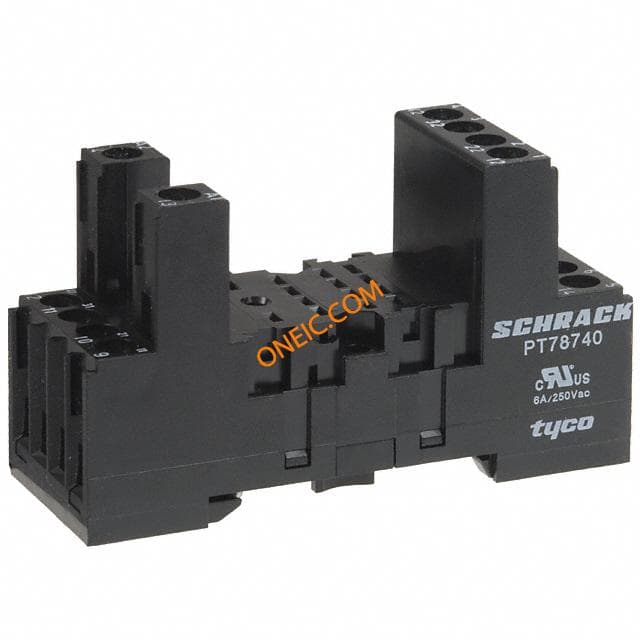

4-1415033-1
