点击放大查看

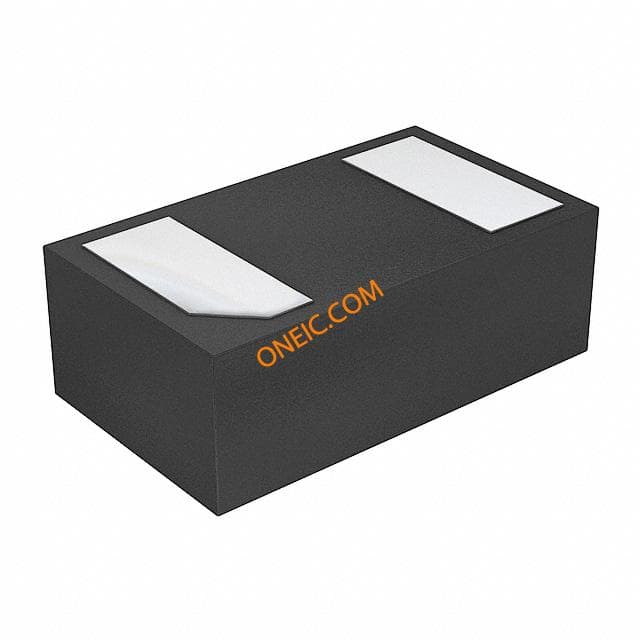

SESD0402Q2UG-0020-090
| Manufacturer | |
| Description | ESD Suppressors 2-CH 0402 9V Uni-Di .20pF 20kV SESD TVS DIODE 7VWM 9.2VC SMD TVS Diode Uni-Directional SESD0402Q2UG-0020-090 9.2V, XDFN 2-Pin ESD Suppressor Diode Arrays 20KV 3-Pin DFN ESD SUPPRESSOR, 0.2PF, 2 CH TE Connectivity 单向 TVS 二极管, 9.2V, 2针 XDFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Subcategory | Not Specified |
| Standard Pack | 10,000 | Part # Aliases | RF2196-000 |
| Standard Package | 10,000 | Factory Pack Quantity | 10000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85354000 |
| ESD Protection | Yes | ||
Electrical
| Channels | 2 Channels | Capacitance | 0.2 pF |
| Current - Output | 1mA | Voltage - Supply | 7V (Max) |
| Number of Elements | 2 | Voltage - Clamping | 9.18 V |
| Diode Configuration | :0402 | Voltage - Breakdown | 9 V |
| Power Line Protection | No | Voltage - Input (Min) | 7V |
| Voltage - Supply (Min) | 9 V | Capacitance @ Frequency | 0.2pF @ 1MHz |
| Unidirectional Channels | 2 | Current - Peak Pulse (8/20us) | 2A |
| Current - Reverse Leakage @ Vr | 50nA | Current - Peak Pulse (10/1000us) | 2A (8/20µs) |
Mechanical
| Width | 0.65mm | Height | 0.38mm |
| Length | 1.05mm | Weight | 0.000088 |
| Packaging | Reel | Mounting Type | Surface Mount |
| Number of Pins | :3 | Package / Case | 0402 (1005 metric) |
| Package Cooled | XDFN | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 1.05 x 0.65 x 0.38mm | Termination Style | SMD/SMT |
| Number of Positions | 2 | Supplier Device Package | 3-XDFN (0.60x1) |
Product Info
| Type | Zener | Diode Type | :ESD Protection |
| Applications | HDMI | Configuration | Single |
| Port Direction | Uni-Directional | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | - 55 C to + 125 C |
Documents & Media
PDF Document
PDF Document
