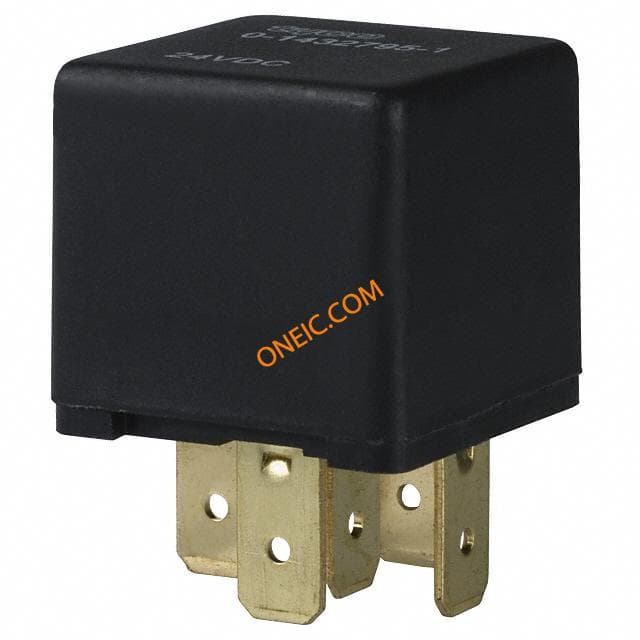

1432795-1
| Manufacturer | |
| Description | Electromechanical Relay SPDT 35(NO)/20(NC)A 24VDC 360Ohm Plug-In Automotive Relays SPDT 24VDC w/ diode Mini ISO dust cover General Purpose / Industrial Relays SPDT 24VDC w/ diode Mini ISO dust cover RELAY AUTOMOTIVE SPDT 30A 24V Relay, MINI-ISO, 24V, Form C, AgSnO RELAY, AUTOMOTIVE, SPDT, 24VDC, 40A Relay,MINI-ISO,24V,FormC,AgSnO,Diode TE Connectivity 单刀双掷 插入式 非闭锁继电器, 24V |
| Category |
Business
| Product Category | Automotive Relays | Standard Package | Bulk |
| Factory Pack Quantity | 400 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | Non Latching | Coil Power | 1.6 W |
| Coil Current | 66.7 mA | Release Time | 13ms |
| Voltage Rating | 14VDC | Coil Resistance | 360 Ohm |
| Voltage - Supply | 24 V | Switching Voltage | 28VDC - Nom |
| Vgs(th) (Max) @ Id | 2.4 VDC | Current Rating (Max) | 35(NO)/20(NC) A |
| Current - Max/Contact | :40A | Voltage - Switching DC | 14V dc |
| Vce(on) (Max) @ Vge, Ic | 15.6 VDC | Contact Rating (Current) | 30A |
| Voltage - Supply (Vcc/Vdd) | :16V | Drive Voltage (Max Rds On, Min Rds On) | 24VDC |
Mechanical
| Depth | :26.5mm | Width | 26.5 mm |
| Height | 24.5 mm | Length | 26.5 mm |
| Weight | 0.027 | Packaging | Bulk |
| Contact Form | 1 Form C (SPDT-BM) | Height (Max) | :24.5mm |
| Mounting Type | Plug-In | Mounting Style | Socket |
| Number of Pins | 5 | Contact Material | Silver Tin Oxide |
| Termination Style | Plug In, QC - 0.250" (6.3mm) | Contact Termination | Plug In |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | General Purpose Relay | Features | Diode |
| Function | Automotive | Relay Type | Automotive |
| Manufacturer | MiniIso | Application Specifics | Automotive |
Environmental
| Operate Time | 10ms | Operating Temperature | -40 to 85 °C |
