926307-3
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 6POS 94V-0 UNI-MATE Housing,cap,Mate-n-lok,1 row,6Way,Natrl Pin & Socket Connectors 6 P IN-LINE CAP Conn Housing RCP 6 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Housing,UniversalMATE-N-LOK,6Position,PositiveLock,BrickRed Receptacle housing Pitch6.35 mm Poles 6 Single row / for panel mount MATE-N-LOK Universal, 926307-3, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 母 压接连接器外壳 6P UN-MNL AUFN-GEH |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94 V-2 | ||
Electrical
| Voltage - Test | 5000 | Voltage Rating | 600 V |
| Number of Poles | 6 | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 600VDC/600VAC | ||
Mechanical
| Color | Red | Depth | 27.4mm |
| Pitch | 6.35 mm | Width | 17mm |
| Height | 17 mm | Length | 44.5mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Gauge | 10-30 AWG | Orientation | 直 |
| Size - Body | .76 – 2.29 mm [ .76 – 2.29 in ] | Contact Type | Male or Female |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | Without |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging, Panel |
| Number of Rows | 1 | Package / Case | Receptacle |
| Connector Style | Single row | Housing Material | Nylon |
| Length - Overall | 39.4 mm | Package Quantity | 1200 |
| Panel Mount Type | 带有 | Primary Material | InterconnectSystem |
| Termination Style | Quick Connect | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Compatible Shell Size | 通用 MATE-N-LOK 插头 |
| Contact Layout, Typical | 直插式 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Receptacle Housings | Connection Method | Wire-Board |
| Assembly Configuration | Without | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55C to 85C |
Documents & Media
Similar Parts
350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
640581-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE Housing,plug,Mate-n-lok,1 row,6 Way Pin & Socket Connectors 6 P IN-LINE PLUG Conn Housing PL 6 POS 6.35mm ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, 6WAY CONNECTOR,SOFTSHELL,UNIVERSALMATE-N-LOK,6POSITION,FREEHANGING,WHITE Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 640581-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG
350552-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² Pin & Socket Connectors PIN 20-14 AWG AU/PHBZ L/P Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Mate-n-Lok,Contact,pin,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 AU/PHBZ L/P
350570-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board UMNL SOK 24-18 AUPHB Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SOK 24-18 AUPHBZ
350687-7
te connectivity / amp

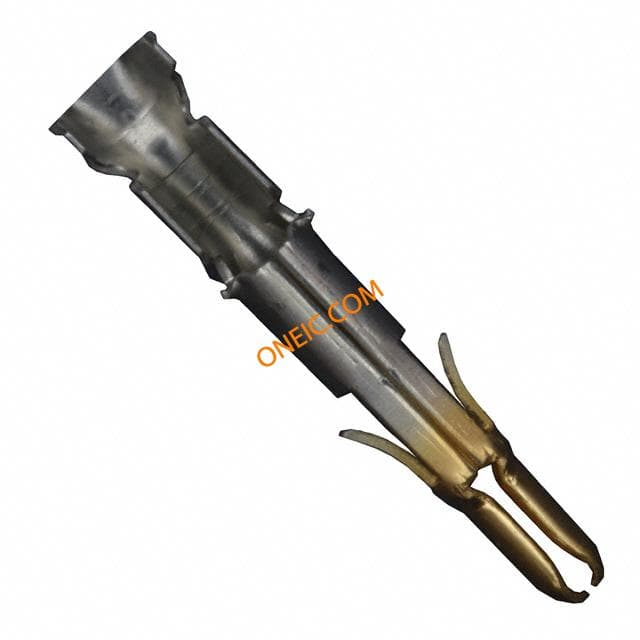

Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board UMNL SPLIT PIN 20000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNLSPLITPINAUNI/BR UMNL SPLIT PIN AUNI/BR
