87977-4
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings 12 MODIV HSG DR MRKD Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MODIV HSG DR MRKD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 250 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 0.100" (2.54mm) | Height | 6.096 mm [ .24 in ] |
| Length | 15.4 mm [ .61 in ] | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 铍铜 | Housing Material | Nylon |
| Length - Overall | 15.24 mm | Package Quantity | 250 |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | Mounting Hole Diameter | 带有 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | Other Specifications | 是 |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
102618-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headervert12way2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 12 MODII HDR DRST SHRD .100CL

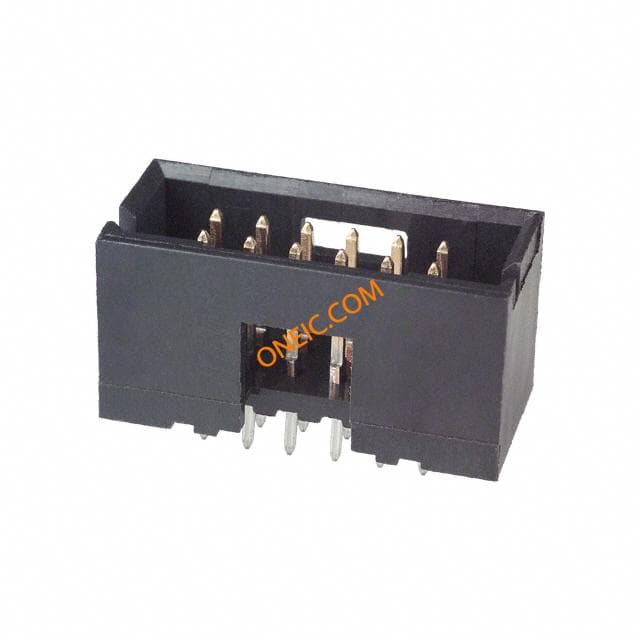

5-102619-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU Headers & Wire Housings 12P HDR DRST SHRD 12 MODII HDR DRST SHRD .100CL 12 MODII HDR DRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
826634-6
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 12POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 12Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 2X6R/APINHEADERGOLD TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直角 引脚管座, 焊接端接, 3A , 通孔 MODU HEADER
146308-6
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 12POS DL R/A Headers & Wire Housings 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,
103165-2
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 12POS DUAL R/A GOLD

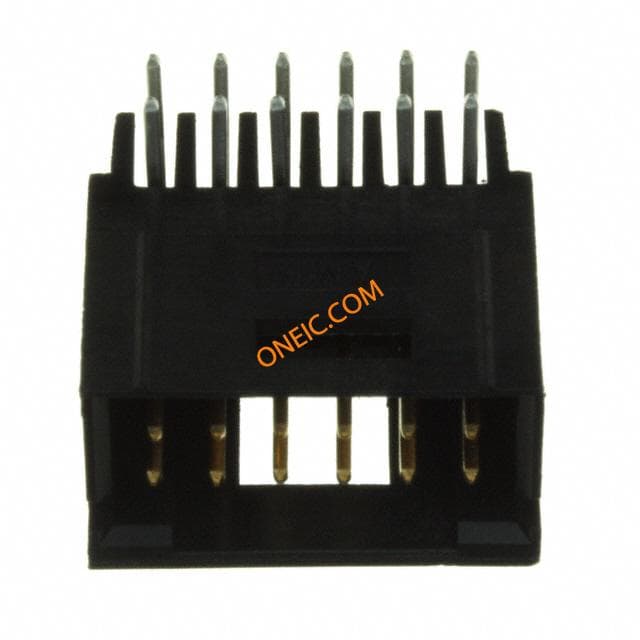

5-102617-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings 100X100 HDR 2X06P R/A T/H SHRD Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 12WAY 12 MODII HDR DRRA SHRD LF

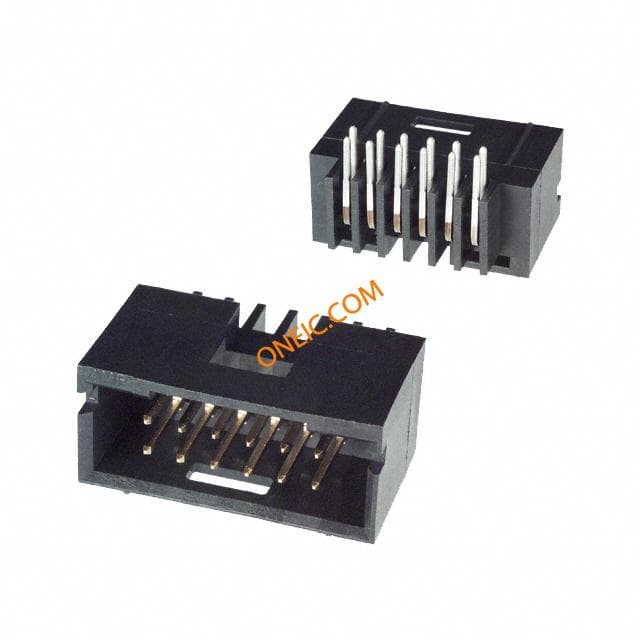

5-102570-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings HDR RA .100 12P 15AU 12 MODII HDR DRRA SHRD LF 12 MODII HDR DRRA SHRD LF Search Keywords:board to board, AMPMODU, pcb connectors,
102570-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings ACTION PIN R.A. 12P dual .150 end Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR DRRA SHRD .100CL
104352-6
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 12POS DUAL TIN

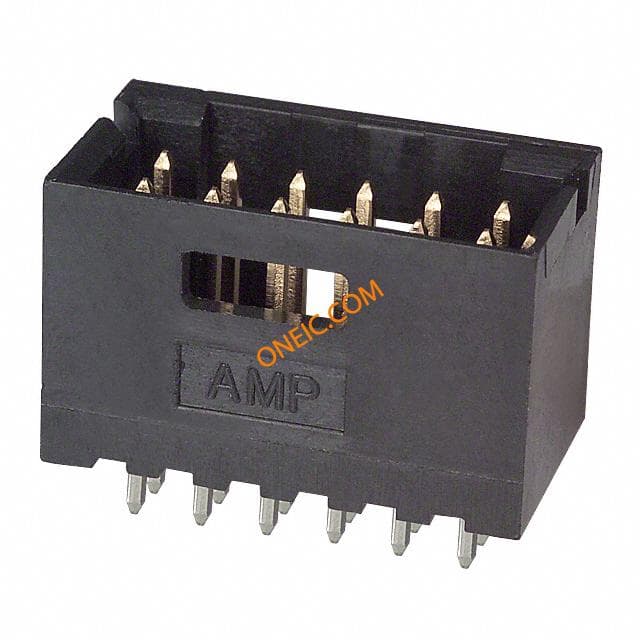

5-103168-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 30AU Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded12 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 12WAY MODUTHRUDRHDRSHRD,12MODIIHDRDRSTSHRD.100CL 12 MODII HDR DRST SHRD .100CL
5-103169-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 30AU Headers & Wire Housings ACTION PIN VERT 12P dual .150 end .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR DRST SHRD .100CL
5-102618-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 12WAY MODUTHRUDRHDRSHRD,12MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 12路 2.54mm节距 (2排) 直 PCB 针座 , 焊接端接, 3A, 通孔 12 MODII HDR DRST SHRD .100CL

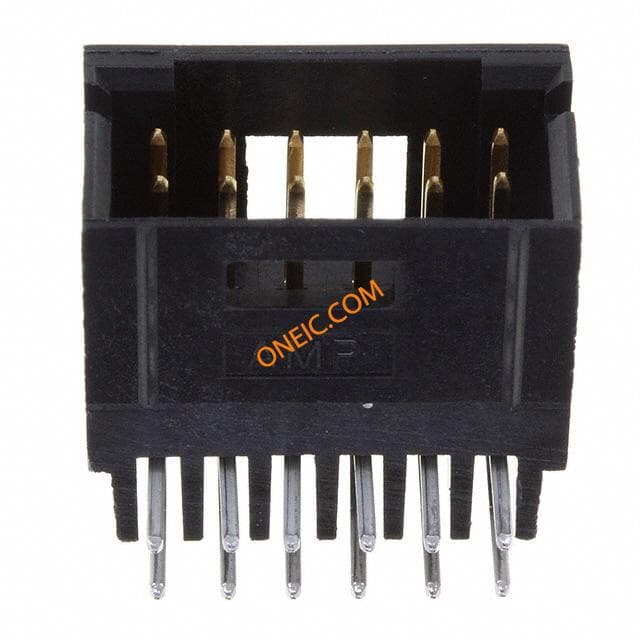

102617-4
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole AMPMODU Shrouded Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings SHROUDED RA DUAL 12 detent windows 12 MODII HDR DRRA SHRD .100CL

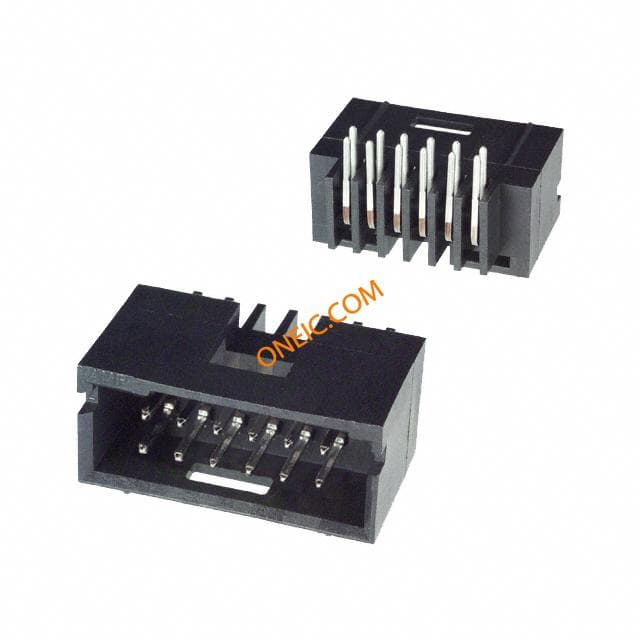

5-87579-3
