102618-4
| Manufacturer | |
| Description | Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headervert12way2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 12 MODII HDR DRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 272 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 带有 |
| Packaging | Tray | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| 1st Connector | 否 | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Shell Material | 4- 面 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 272 |
| Panel Mount Type | 通孔 | Primary Material | Connector |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 12 |
| Termination Finish | 带有 | Number of Positions | 12 |
| Length - Post (Mating) | 8.08 mm | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.318" (8.08mm) | Termination Post Length | 3.18 mm |
| Contact Finish Thickness | 15µin (0.38µm) | Static Discharge Shielding | 不带 |
| Shell Size, Connector Layout | 1.68 mm [ .066 in ] | 1st Connector Mounting Feature | 否 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Coverage | 覆盖 |
| Key Type | 否 | Manufacturer | AMPMODU |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Ingress Protection | 带罩 |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
5-534206-6
te connectivity / amp

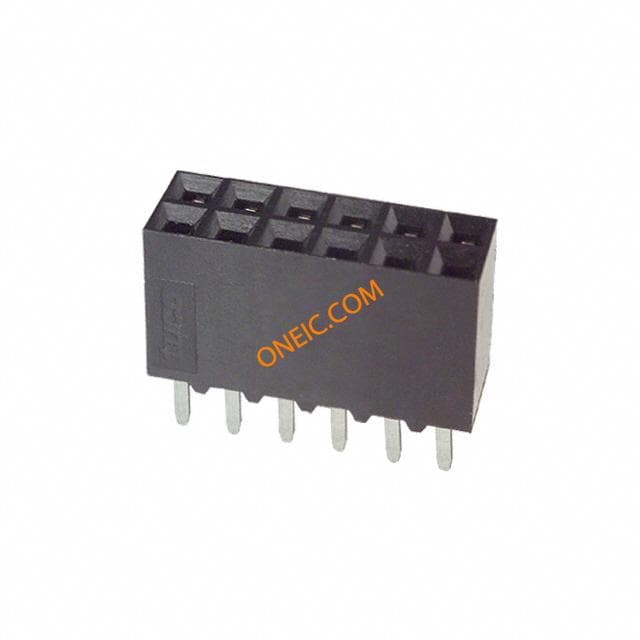

Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT DUAL Headers & Wire Housings REC 2X06P VRT T/H VERT DUAL Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 12Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 12 MODII VRT DR CE 100/115
87922-2
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 12POS .100 POL W/STR Headers & Wire Housings MODIV HSG W/STR RLF Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM 12 MODIV HSG W/STR RLF DR MRKD
535598-7
te connectivity / amp
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 12POS .100 DUAL T/H AU 12 MODIV VRT DR CE RCPT ASSY
3-87977-1
te connectivity / amp

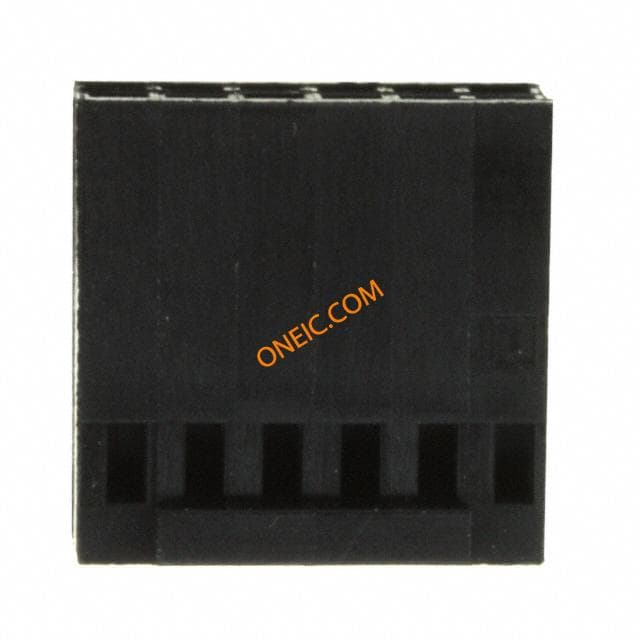

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings 12 HSG COMP DR .1POL Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MODIV HSG COMP DR .100 POL
5-102694-4
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 12POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 12P 26-22 Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 ampmodu mt assy dr sn
535585-2
te connectivity / amp
Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 12POS DUAL VERT .100 12 MODIV VRT DR CE RCPT ASSY 12 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
87631-7
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 12P DUAL Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,12POSITION,.100IN,DUALROW,LATCHED 12 MODIV HSG COMP DR .100 POL
87631-8
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL 2.54mm,housing,12W,Mod IV,DR,snap in Headers & Wire Housings POLARIZED HSG 12 DBL detent latching Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X6WAY Housing,Connector;Crimp-Snap;Dual;12;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 12 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87631-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 12 路 直 母 电缆安装 PCB 壳体 12 MODIV HSG DR MKRD .100 POL
5-534998-6
te connectivity / amp

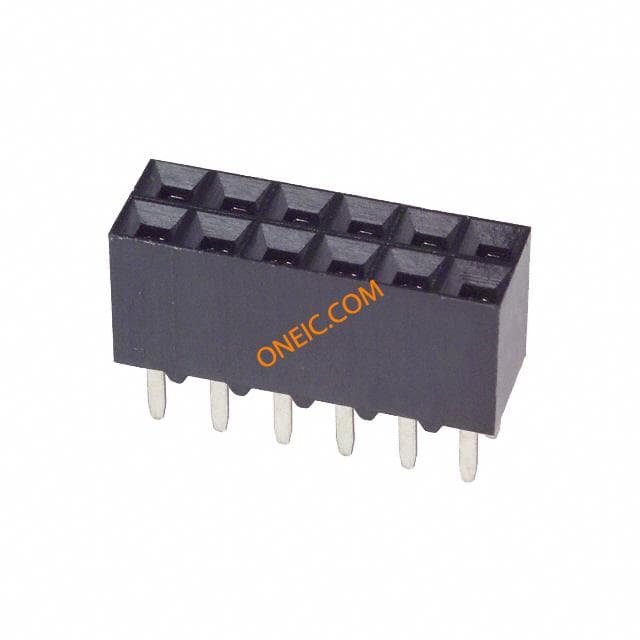

Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT DUAL Headers & Wire Housings RECEPT 12POS .100 VERT DUAL Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 12Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 12WAY, 2ROW MOD IV Dual Row 12 Position Dual Entry Vertical Connector Through Hole TE Connectivity AMPMODU Mod IV 系列 2行 12路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 12 MODIV VRT DR CE 100/125
