796642-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 5 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 5POS VERT 5MM Pluggable Terminal Blocks 5POS 5.0MM VRT HDR Conn Shrouded Header HDR 5 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5POS 5.0MM CE VRT HDR,TRM BLK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Green | Depth | 8.35 mm |
| Pitch | 5 mm | Height | 12 mm |
| End Style | 带有 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Housing Color | Green | Mounting Type | Through Hole |
| Connector Type | 头 | Contact Finish | Tin |
| Flange Feature | 是 | Mounting Style | Through Hole |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 27 mm | Package Quantity | 150 |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 5 | Number of Positions | 5 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Thread/Screw/Hole Size | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Levels | 1 | Interconnect System | 不带 |
| Positions Per Level | 5 | Side-by-Side Stacking | 否 |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
284046-5
te connectivity / amp
Conn Terminal Block F 5 POS 5mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks TERMI-BLOK V PLUG STACK Terminal Block Connectors TERM BLOCK PLUG 5POS 90DEG 5MM TERMI-BLOK VERTICAL PLUG STACK TERMI-BLOK VERTICAL PLUG STACK Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

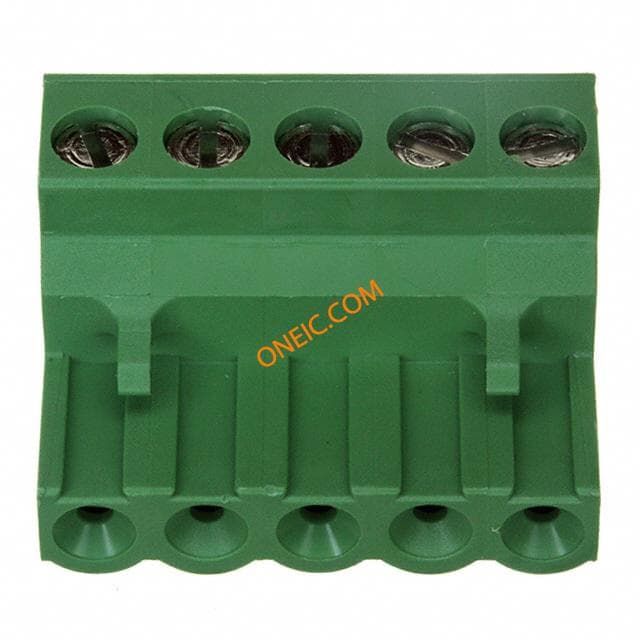

796640-5
