284040-5
| Manufacturer | |
| Description | Conn Terminal Block F 5 POS 5mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 5P VERT 5mm Terminal Block Connectors TERM BLOCK PLUG 5POS 270DEG 5MM Conn Terminal Block F 5 POS 5mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5mm 节距 5 路 公 绿色 直 插头, 面板安装, 焊接端接 TERMI-BLOK VERTICAL PLUG STACK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
| Voltage - Rated AC | 300 | Current - Trip (It) | 15 |
| Current Rating (Max) | 15 A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Green | Depth | 12.5 mm |
| Pitch | 5 mm | Width | 12.5mm |
| Height | 25 mm | Length | 25mm |
| Material | 尼龙 | Packaging | Bulk |
| Body Color | 绿色 | Cable Exit | 侧 |
| Lead Style | Side | Screw Size | M3 |
| Wire Gauge | 12-30 AWG | Orientation | 直 |
| Termination | Screw | 2nd Connector | 是 |
| Housing Color | Green | Mounting Type | Cable Mount |
| Connector Type | Plug (left-hand) | Contact Finish | Tin |
| Flange Feature | Without | Mounting Style | Through Hole |
| Number of Rows | 1 | Screw Material | Brass |
| Insert Material | 磷青铜 | Plug Wire Entry | 270° |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 25 mm | Package Quantity | 150 |
| Termination Rows | 焊接 | Pitch - Connector | Side |
| Number of Contacts | 5 | Number of Positions | 5 |
| Terminal Block Type | Plug, Female Sockets | Terminal Screw Finish | 镍 |
| Thread/Screw/Hole Size | 黄铜 | Center Contact Material | 5.00 [0.197] |
| Screw Material - Plating | Nickel | Wire Gauge or Range - AWG | 30-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | Buchanan | Features | Retention Latches (Non-Wire Side) |
| Manufacturer | Buchanan | Product Type | Connector |
| Side Stackable | Yes | Number of Levels | 1 |
| Interconnect System | Without | Positions Per Level | 5 |
| Side-by-Side Stacking | 是 | ||
Similar Parts
796642-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 5POS VERT 5MM Pluggable Terminal Blocks 5POS 5.0MM VRT HDR Conn Shrouded Header HDR 5 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5POS 5.0MM CE VRT HDR,TRM BLK

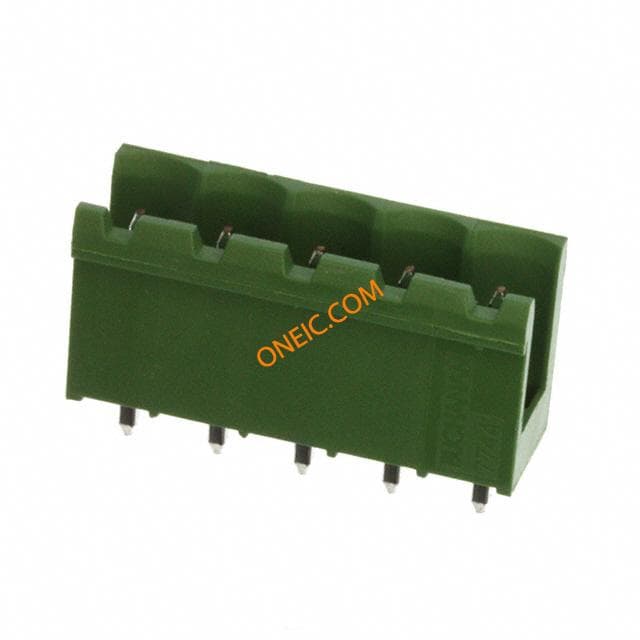

282822-5
