796636-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 5POS VERT 5.08MM Pluggable Terminal Blocks 5.08MM VERT HDR 5P GREEN Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 5 路 公 绿色 直 PCB 管座, 通孔, 焊接端接 5POS 5.08MM CE VRT HDR,TRM BLK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Depth | 12mm |
| Pitch | 5.08 mm | Width | 8.35mm |
| Length | 27.22mm | Material | 尼龙 |
| End Style | 带有 | Packaging | Bulk |
| Body Color | 绿色 | Lead Style | Right Angle |
| Wire Gauge | 30 | Orientation | 直 |
| Termination | Solder | Length - Pin | 3.5 mm [ .138 in ] |
| 2nd Connector | 否 | Mounting Type | Through Hole |
| Connector Type | 公插 | Contact Finish | Tin |
| Flange Feature | 是 | Number of Rows | 1 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Package Quantity | 150 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 5 |
| Number of Positions | 5 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Thread/Screw/Hole Size | 不带 | Wire Gauge or Range - AWG | 30-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Buchanan | Number of Levels | 1 |
| Interconnect System | 不带 | Positions Per Level | 5 |
| Side-by-Side Stacking | 否 | ||
Documents & Media
Similar Parts
284041-5
te connectivity / amp
Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 5 POS VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 5POS 5.08MM Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 5 路 公 绿色 垂直 插头, 印刷电路板安装, 夹紧螺钉端接 TERMINAL BLOCK VERTICAL PLUG S

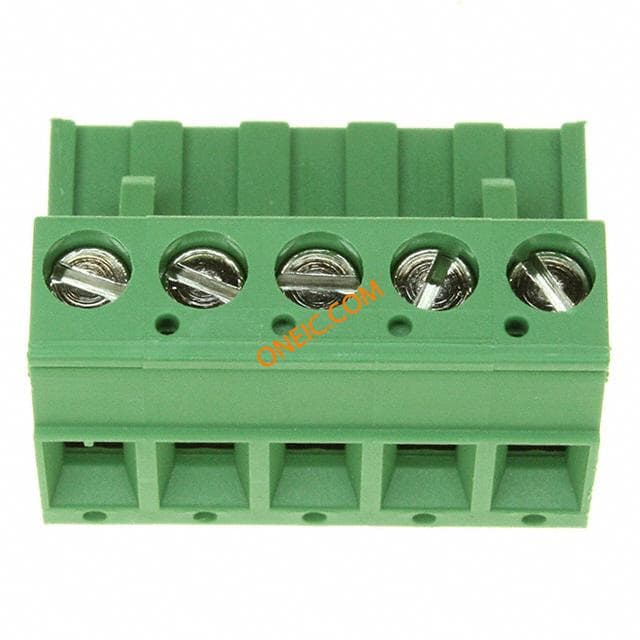

796634-5
