284047-5
| Manufacturer | |
| Description | Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 5P VERT STACK Terminal Block Connectors TERM BLOCK PLUG 5POS 5.08MM Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (right-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK VERTICAL PLUG STACK |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
| Voltage - Rated AC | 300 | Current - Trip (It) | 15 |
| Current Rating (Max) | 15 A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Green | Depth | 12.5 mm |
| Pitch | 5.08 mm | Height | 25 mm |
| Packaging | Bulk | Body Color | 绿色 |
| Cable Exit | 侧 | Lead Style | Side |
| Screw Size | M3 | Wire Gauge | 12-30 AWG |
| Termination | Screw | 2nd Connector | 否 |
| Housing Color | Green | Mounting Type | Cable Mount |
| Connector Type | Plug (right-hand) | Contact Finish | Tin |
| Flange Feature | Without | Mounting Style | Cable |
| Number of Rows | 1 | Screw Material | Brass |
| Insert Material | 磷青铜 | Plug Wire Entry | 90° |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 24.4 mm | Package Quantity | 150 |
| Pitch - Connector | Side | Number of Contacts | 5 |
| Number of Positions | 5 | Terminal Block Type | Plug, Female Sockets |
| Terminal Screw Finish | 镍 | Thread/Screw/Hole Size | 黄铜 |
| Center Contact Material | 5.08 [0.200] | Screw Material - Plating | Nickel |
| Wire Gauge or Range - AWG | 30-12 | Wire Gauge or Range - mm2 | 12 |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Wire Side) | Manufacturer | Buchanan |
| Product Type | Connector | Side Stackable | Yes |
| Number of Levels | 1 | Number of Stages | 不带 |
| Interconnect System | Without | Positions Per Level | 5 |
| Side-by-Side Stacking | 是 | ||
Documents & Media
Similar Parts
282825-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole Barrier Terminal Blocks HDR 5P VERT 5.08mm Terminal Block Connectors TERM BLOCK HDR 5POS VERT 5.08MM Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER,ASSY90 5P.5,

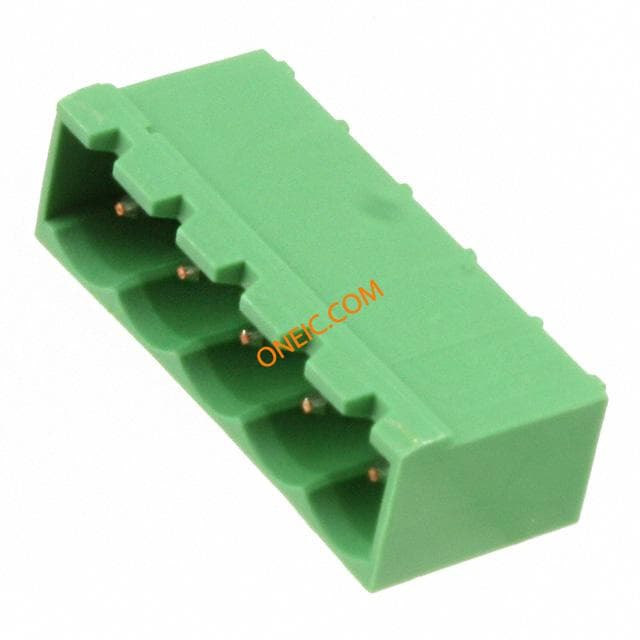

796638-5
