794714-1
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 6POS UMNL FLANGE Housing,cap,Mate-n-lok,2 row,6 Way,panel Power to the Board FLANGED CAP HSG 6P UL94V-2 Conn Housing RCP 6 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Housing;UniversalMATE-N-LOK;6;19;600;Receptacle(Cap);Nylon;Natural Receptacle housing Pitch6.35 mm Poles 6 Double row / for panel mount / twist lock MATE-N-LOK Universal, 794714-1, TE Connectivity 06P UMNL CAP HSG NATL,PAN MNT |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Standard Number | CSA, UL | UL Flammability Rating | UL 94V-2 |
| Material Flammability Rating | UL 94 V-2 | ||
Electrical
| Voltage - Test | 5000 | Voltage Rating | 600 V |
| Number of Poles | 6 | Voltage - Supply | 600 |
| Number of Outputs | 6 | Current Rating (Max) | 19 A |
| Insulation Resistance | 1000 MOhm | Connector - Voltage Input | UniversalMATE-N-LOK |
Mechanical
| Color | Natural | Depth | 27.43mm |
| Pitch | 6.35 mm | Width | 50.8mm |
| Length | 50.8mm | Sealed | Not Sealed |
| Lock Type | TwistandLock | Packaging | Bulk |
| Wire Gauge | 10-30 AWG | Row Spacing | 0.250" (6.35mm) |
| Shell Style | Receptacle(Cap) | Size - Body | .76 – 2.29 mm [ .03 – .09 in ] |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | Without |
| Fastening Type | Locking Ramp | Mounting Style | Panel Mount, Free Hanging |
| Number of Rows | 2 | Package / Case | Receptacle |
| Connector Style | Double row | Housing Material | Nylon |
| Package Quantity | 1 | Panel Mount Type | 带有 |
| Primary Material | Interconnect | Termination Style | Quick Connect |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| Compatible Shell Size | 通用 MATE-N-LOK 插头 | Contact Layout, Typical | 矩阵 |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| Manufacturer | MATE-N-LOK | Product Type | Housings |
| Connection Method | Wire-Board | Assembly Configuration | Without |
| Matrix (Columns x Rows) | 0.250in.x0.250in. | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55...+85 °C |
Similar Parts
350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
350715-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-0 UNI-MATE 6 way white plug housing Pin & Socket Connectors PLUG HOUSE. 6 POS. Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, DUAL ROW, 2 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;6;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:6; 600V Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 350715-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 电缆安装 压接连接器外壳 06P UMNL PLUG HSG
1-480704-0
te connectivity / amp
Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS 94V-2 UNI-MATE Housing,plug,free hanging,6way Pin & Socket Connectors PLUG HOUSE 6 POS Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, DUAL ROW, 6 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;6;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:6; 600V Crimp housing Pitch6.35 mm Poles 6 Double row / Free hanging/cable mount MATE-N-LOK Universal, 1-480704-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNL PLUG HSG NATL
1-480704-9
te connectivity / amp
Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 6POS 94V-2 BLK Power to the Board 6P PLUG HOUSING Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON Conn;PlugHsg;6Pos;UnivMATE-N-LOK;Black TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 电缆安装 压接连接器外壳 06P UMNL PLUG HSG BLK
350851-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG CONTACT, SOCKET, 24-18AWG, CRIMP UMNL SOK 24-18 AUNIBR
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350536-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board SOCKET CONTACT 20-14 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, MATE-N-LOK, REEL 5K Mate-n-Lok,Contact,socket,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 UMNL SOK 20-14 .0126 AUNI/BR
350537-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0126AUNI/BR UMNL SOK 20-14 .0126 AUNI/BR
350218-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14awg,Au Pin & Socket Connectors PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CRIMP PIN, MATE-N-LOK, REEL 5K UNIVMATE-N-LOKSTRIP,UMNLPIN20-14.0126AUBR Mate N Lok .250" Centerline 600 V 19 - 36 A 20-14 AWG Pin TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 .0126AUBR
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR
350715-4
te connectivity / amp
Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max 06P UMNL PLUG HSG UL94VO Universal mate-n-lok 6w Plug Connector Pin & Socket Connectors 06P PLUG UL94VO Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 6 WAY, NYLON Universalmate-n-lok6wPlugConnector Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:6; 600V Crimp housing 6.35 mm Poles 6 MATE-N-LOK Universal, 350715-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 电缆安装 压接连接器外壳
350536-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 20-14AWG TIN UMNL Contact,crimp,recpt,Mate-n-lok,20-14 awg Power to the Board UMNL SOK 20-14 .0125 Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14 AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-14AWG, REEL UMNLSOK20-14.0126PTPBR Contact; female; 0.5÷2mm2; 14÷20AWG; Universal MATE-N-LOK; tinned Universal Mate-N-Lok Pre-Tin 20-14 AWG Crimp Socket Contact Crimp socket Female 14...20 AWG, 350536-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 UMNL SOK 20-14 .0126 PTPBR
350706-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG TIN CRIMP Contact,crimp,pin,splt,Matenlok,24-18awg Power to the Board SPLIT PIN 24-18 BULK UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 24-18AWG CONTACT,SPLITPIN,UNIVERSALMATE-N-LOK,24-18AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL SPLIT PIN 24-18 PTPBR L/P
350561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.20-0.80mm² Power to the Board PIN CONTACT 24-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN24-18.0126AU/NI/BR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 24-18 .0126 AU/NI/BR
350874-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Power to the Board SOCKET 18-14 AWG .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-18AWG TIN CRIMP Mate-n-Lok,Contact,socket,0.80-2.00mm² Power to the Board PIN 12-10 AWG Reel of 2500 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 18-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK18-14.0126PTPBR Universal Mate-N-Lok 18-14 AWG Wire to Cable Crimp Socket Contact UMNL SOK 18-14 .0126 PTPBR
350547-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-N-Lok rigid male contact Pin & Socket Connectors PIN 20-14 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14 AWG, CRIMP PRE-TINNEDBRASS,UNIVERSALPIN;20-14AWG Contact; male; 0.5÷2mm2; Universal MATE-N-LOK; tinned; crimped Crimp pin Male 20...14 AWG, 350547-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 20-14 PTPBR L/P
350707-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² Power to the Board UMNL SPLIT PIN 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL SPLIT PIN 20-14 PTPBR L/P
1-350715-9
TE Connectivity / AMP
Power to the Board PLUG HOUSE 6 POS BLACK UL94V-0 .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 6POS 94V-0 BLK
2-480704-0
te connectivity / amp
Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG HSG 6POS UMNL NATL Power to the Board 6P PLUG HOUSING NAT Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PLUG HSG NATL

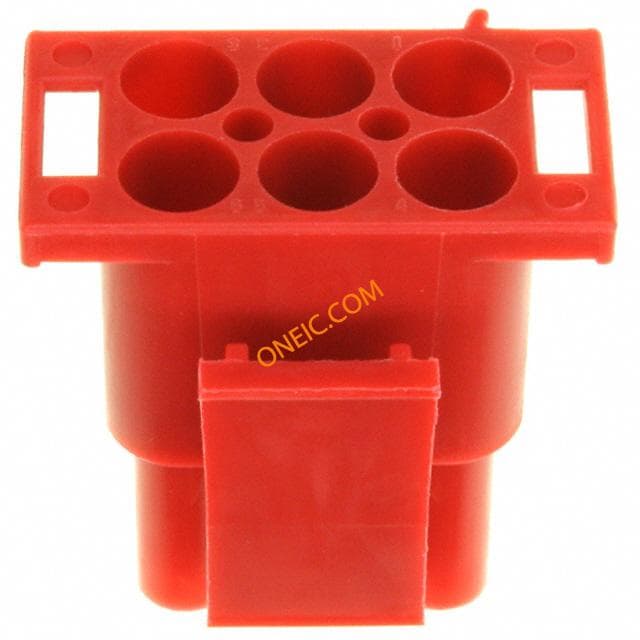

1-480704-2
