794210-1
| Manufacturer | |
| Description | Conn Housing PL 20 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 20POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 20 POS Conn Housing PL 20 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 10 MATE-N-LOK II Mini Universal, 794210-1, TE Connectivity 20P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0, UL 94V-1 | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Number of Poles | 2 x 10 |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75 mm |
| Pitch | 4.14 mm | Height | 17.25 mm |
| Sealed | Not Sealed | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Plug | Housing Material | Nylon |
| Length - Overall | 47.68 mm | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 20 |
| Contact Termination | Crimp | Number of Positions | 20 |
| Compatible Shell Size | 印刷电路板板端连接器头 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| Product Type | Housing | Connection Method | Wire-Wire |
| Number of Circuits | 20 | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55...+105 °C |
Documents & Media
Similar Parts

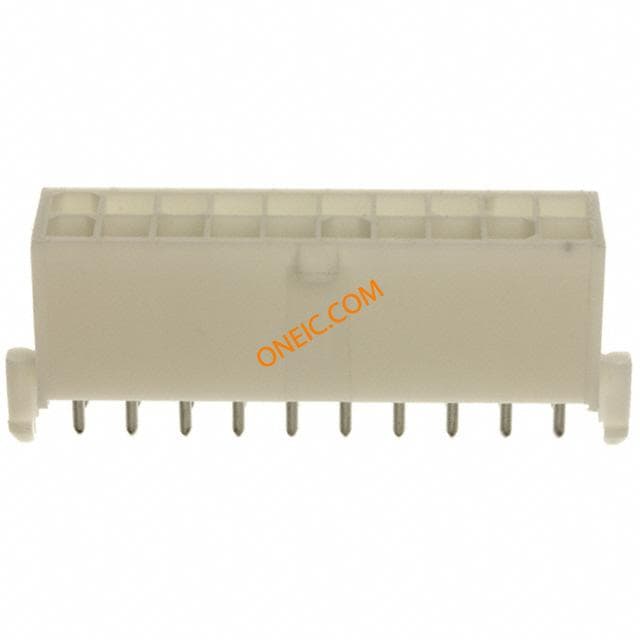

794070-1
te connectivity / amp
Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 TIN Power to the Board VERT PIN HDR 20P 200 Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL HDR W/DH SN
794077-1
te connectivity / amp
Conn Power PIN 20 POS 4.14mm Solder ST Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 20POS PCB TIN WHITE Pin & Socket Connectors 20P MINI UMNL HDR W/O DH SN 20P MINI UMNL HDR W/O DH SN 20P MINI UMNL HDR W/O DH SN Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
794220-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN MINI-UMNL2 22-18AWG TIN Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board UMNL SOK 20-14 .0126 Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Mate-n-lok,contact,pin,0.30-0.90mm² Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MINI UMNL2 PIN 22-18 AWG SN
1-794070-1
te connectivity / amp
Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 AU Headers & Wire Housings HEADER 20 POS GOLD DUAL ROW Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL HDR W/DH AU LF
794211-1
te connectivity / amp
Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Pin & Socket Connectors CONN CAP 20 POS .163" Centerline, 600 V, 9.5 A max. CONN CAP 20POS MINI UNIV-MATE 2 Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch4.14 mm Poles 2 x 10 MATE-N-LOK II Mini Universal, 794211-1, TE Connectivity 20P MINI UMNL2 CAP HSG UL94V0
1-794106-1
te connectivity / amp
Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS R/A DUAL .163 AU Headers & Wire Housings HEADER 20 POS R/A GOLD DUAL ROW Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL R/A HDR ASSY LF
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF

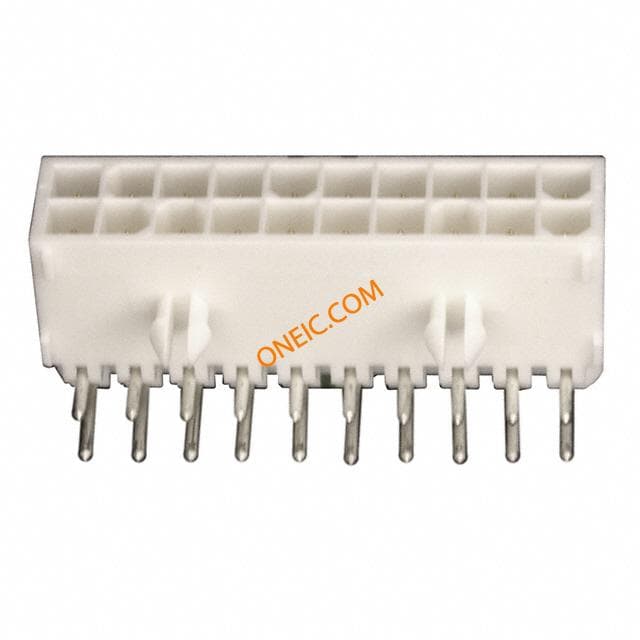

794106-2
te connectivity / amp
Conn Power PIN 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS R/A DUAL .163 AU Power to the Board 20P MINI R/A HDR 400
1-794106-0
te connectivity / amp
Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS R/A DUAL .163 TIN Headers & Wire Housings HEADER 20 POS R/A TIN DUAL ROW Conn Power HDR 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL R/A HDR ASSY
1-794070-0
te connectivity / amp
Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Headers & Wire Housings HEADER 20 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 20WAY 20P MINI UMNL HDR W/DH SN LF
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
1-794077-1
te connectivity / amp
Conn Power HDR 20 POS 4.14mm Solder ST Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 20POS VERT MINI-UMNL Headers & Wire Housings HEADER 20 POS GOLD DUAL ROW Conn Power HDR 20 POS 4.14mm Solder ST Thru-Hole 20 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL HDR W/O DH AU LF
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794077-0
te connectivity / amp
Conn Power PIN 20 POS 4.14mm Solder ST Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 20POS VERT MINI-UMNL 1-794077-0 Conn Power PIN 20 POS 4.14mm Solder ST Thru-Hole 20 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL HDR W/O DH SN LF
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A

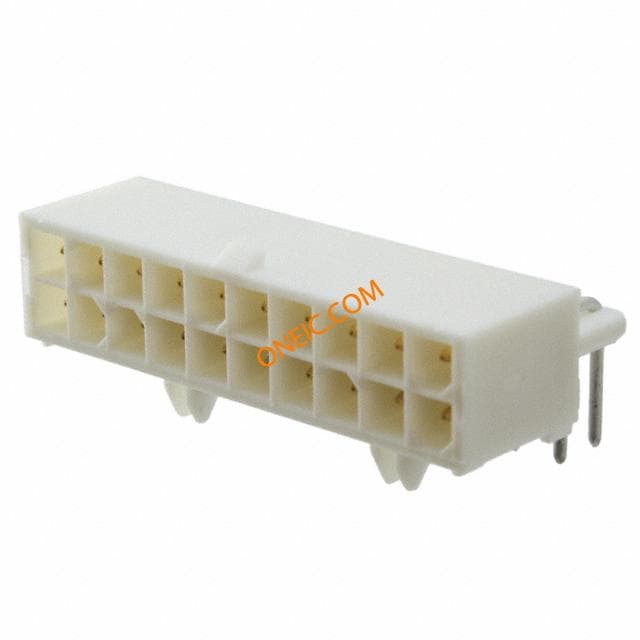

794106-1
te connectivity / amp
Conn Power PIN 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS R/A DUAL .163 TIN Power to the Board 20P MINI UMNL R/A HD 400 Conn Power PIN 20 POS 4.14mm Solder RA Thru-Hole 20 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL R/A HDR ASSY SN
794226-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Pin & Socket Connectors MINI 2PIN CONTACT UMNL 26-22 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PinCrimp Contact Termination TypeMini-Universal MATE-N-LOK 2Applies To WireSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

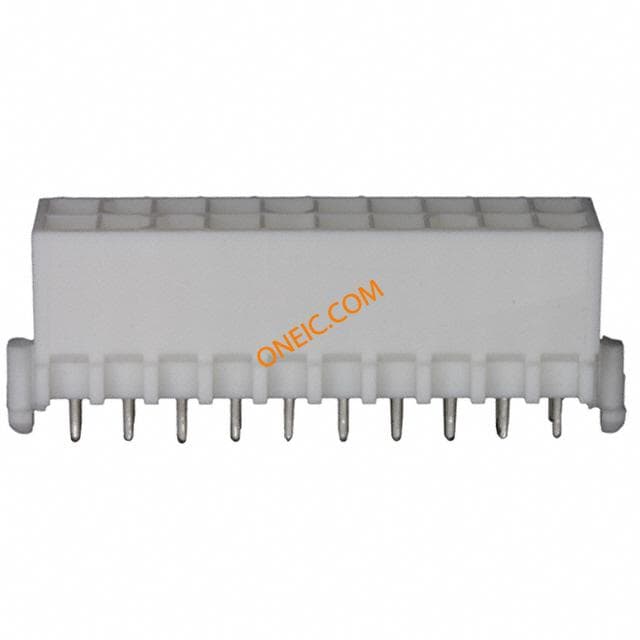

794070-2
