794070-1
| Manufacturer | |
| Description | Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 TIN Power to the Board VERT PIN HDR 20P 200 Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 20P MINI UMNL HDR W/DH SN |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | ||
Mechanical
| Color | White | Pitch | 4.14 mm |
| Width | 13.49 | Length | 42.95 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 白色 | Row Spacing | 0.163" (4.14mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Pins | 20 |
| Number of Rows | 2 | Package / Case | Receptacle |
| Height (Inches) | 9.85 | Contact Material | Brass |
| Housing Material | Polyamide (PA) | Mounting Feature | 板锁 |
| Package Quantity | 200 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | Solder Lug | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 20 | Number of Positions | 20 |
| Compatible Shell Size | 插头护套 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Finish Thickness | 150µin (3.81µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | Wire to Board | Gender | PIN |
| Features | Board Lock | Product Type | Headers |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts

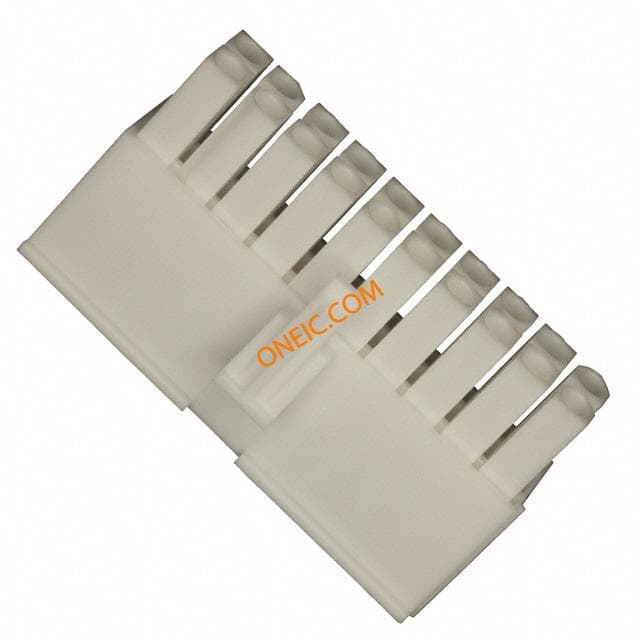

770585-1
te connectivity / amp
Conn Housing M 20 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 20POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors FREE HNG PLUG 20P Conn Housing M 20 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 20WAY CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,20POSITION,NYLON,WHITE Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:20; 600V Pin housing Pitch4.14 mm Poles 2 x 10 Double row / accepts male or female contacts / straight MATE-N-LOK, 770585-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 20P MINI UMNL PLUG HSG
794210-1
te connectivity / amp
Conn Housing PL 20 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 20POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 20 POS Conn Housing PL 20 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 10 MATE-N-LOK II Mini Universal, 794210-1, TE Connectivity 20P MINI UMNL2 PLUG HSG UL94V0
