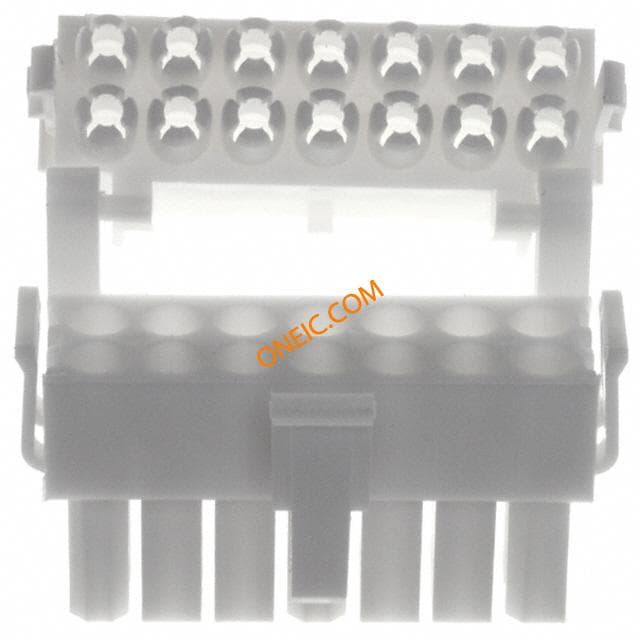

794203-1
| Manufacturer | |
| Description | Conn Housing RCP 14 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 14POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 14 POS 794203-1 Conn Housing RCP 14 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 14P MINI UMNL2 CAP HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 300 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Pitch | 4.14 mm |
| Sealed | Not Sealed | Lock Type | Detent Lock |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Form | Male or Female | Contact Type | Male or Female |
| Lead Spacing | 0.163" (4.14mm) | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 2 | Package / Case | Receptacle |
| Contact Material | Brass | Housing Material | Nylon |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | Compatible Shell Size | 小型通用 MATE-N-LOK 2 插头护套 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mate-N-Lok II |
| Product Type | Housing | Number of Circuits | 14 |
| Output Configuration | Free Hanging (In-Line) | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -67 – 221 |
Documents & Media
Similar Parts
