点击放大查看
794202-1
| Manufacturer | |
| Description | Conn Housing PL 14 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 14POS MINI UNIV-MATE 2 TE Connectivity Mini-Universal MATE-N-LOK 2 Series 4.14mm 14 Way 2 Row Straight Free Hanging Power Distribution Pin & Socket Connectors CONN PLUG 14 POS Conn Housing PL 14 POS 4.14mm ST Individual Product Highlights:HousingHousing Type = PlugMini-Universal MATE-N-LOK 24.14 mm CenterlineDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Housing14wayMiniUniversalMate-n-Lok Crimp housing Pitch4.14 mm Poles 2 x 7 MATE-N-LOK II Mini Universal, 794202-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 14 路 直 公 电缆安装 压接连接器外壳 14P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 300 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V ac | Number of Poles | 2 x 7 |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75 mm |
| Pitch | 4.14 mm | Width | 17.25mm |
| Height | 17.25 mm | Length | 35.26mm |
| Sealed | Not Sealed | Lock Type | Latch |
| Packaging | Bulk | Orientation | 直 |
| Row Spacing | 0.163" (4.14mm) | Termination | Solder |
| Contact Form | Male or Female | Contact Type | Male or Female |
| Lead Spacing | 0.163" (4.14mm) | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Plug | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 35.26 mm |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | Compatible Shell Size | 小型通用 MATE-N-LOK 2 帽护套/印刷电路板插针接头 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mini-Universal MATE-N-LOK 2 |
| Product Type | Housing | Connection Method | Wire-Wire |
| Number of Circuits | 14 | Output Configuration | Free Hanging (In-Line) |
| Assembly Configuration | Without | For Use With/Related Products | Housing/PC Board Pin |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55...+105 °C |
Documents & Media
Similar Parts
1-794067-0
te connectivity / amp
Conn Power HDR 14 POS 4.14mm Solder ST Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 14PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 14 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 14 POS TIN DUAL ROW Conn Power HDR 14 POS 4.14mm Solder ST Thru-Hole 14 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Header,pin,miniMatenlok,PCB,14Way,180dg Pin header Pitch4.14 mm Poles 2 x 7 straight MATE-N-LOK Mini Universal, 1-794067-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 14路 直 PCB 针座, 焊接端接, 9.5A 14P MINI UMNL HDR W/DH SN
770973-2
te connectivity / amp
Conn Power PIN 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 14POS R/A DUAL .163 AU Pin & Socket Connectors HEADER ASSY 14P R/A 200 Conn Power PIN 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 14P MINI UMNL R/A HDR ASSY AU
1-770973-1
te connectivity / amp
Conn Power HDR 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 14PS R/A DL.163 GOLD Headers & Wire Housings HEADER 14 POS R/A GOLD DUAL ROW Conn Power HDR 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 14POS 4.14MM 14P MINI UMNL R/A HDR ASSY LF
770973-1
te connectivity / amp
Conn Power PIN 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 14POS R/A DUAL .163 TIN Power to the Board 14P R/A HDR 800 Conn Power PIN 14 POS 4.14mm Solder RA Thru-Hole 14 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 14P MINI UMNL R/A HDR ASSY SN

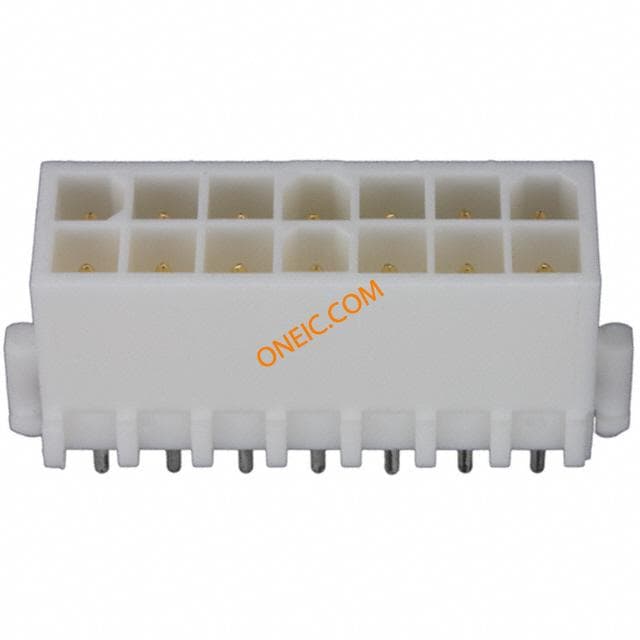

794067-2
