794196-1
| Manufacturer | |
| Description | Conn Housing PL 10 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE 2 Pin & Socket Connectors 10P MINI UMNL2 PLUG Conn Housing PL 10 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 10WAY MINIUMNL2HOUSINGS,10PMINIUMNL2PLUGHSGUL94V0 Crimp housing Pitch4.14 mm Poles 2 x 5 MATE-N-LOK II Mini Universal, 794196-1, TE Connectivity 10P MINI UMNL2 PLUG HSG UL94V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 300 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL, VDE |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Test | :1500V | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 9.5 A |
| Current - Max/Contact | :10.5A | Insulation Resistance | :100Mohm |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 |
Mechanical
| Color | White | Depth | 23.75 mm |
| Pitch | 4.14 mm | Height | 17.25 mm |
| Weight | 0.0327 | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Length - Overall | 26.97 mm | Package Quantity | One Piece Housing |
| Primary Material | InterconnectSystem | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :White |
| Number of Contacts | 10 | Contact Termination | Crimp |
| Number of Positions | 10 | Center Contact Material | 4.14 x 4.14 [.163 x .163] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 0.99 [0.039] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| Manufacturer | MATE-N-LOK | Product Type | Housing |
| Number of Circuits | 10 | For Use With/Related Products | :Mini-Universal MATE-N-LOK Connectors |
Environmental
| Operating Temperature | :65°C | ||
Documents & Media
Similar Parts
770743-1
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS STR DUAL .163 TIN Pin & Socket Connectors .163 10CKT 200 Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL HDR ASSY D/R VRT
1-770743-1
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS STR DL .163 AU TE Connectivity Mini-Universal MATE-N-LOK Series 4.14mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYVRTLF Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL HDR ASSY VRT LF
1-770858-1
te connectivity / amp
Conn Power HDR 10 POS Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT .163 GOLD Headers & Wire Housings HEADER 10 POS GOLD DUAL ROW Conn Power HDR 10 POS Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL HDR ASSY AU LF
1-770971-1
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 AU Headers & Wire Housings HEADER 10 POS R/A GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYLF Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY LF
1-770971-0
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 10 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS R/A TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 10WAY MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYSN Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
1-770743-0
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS STR DL .163 TIN Headers & Wire Housings HEADER 10 POS TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 10POS, 4.14MM MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYD/RVRT Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-0, TE Connectivity 10P MINI UMNL HDR ASSY D/R VRT

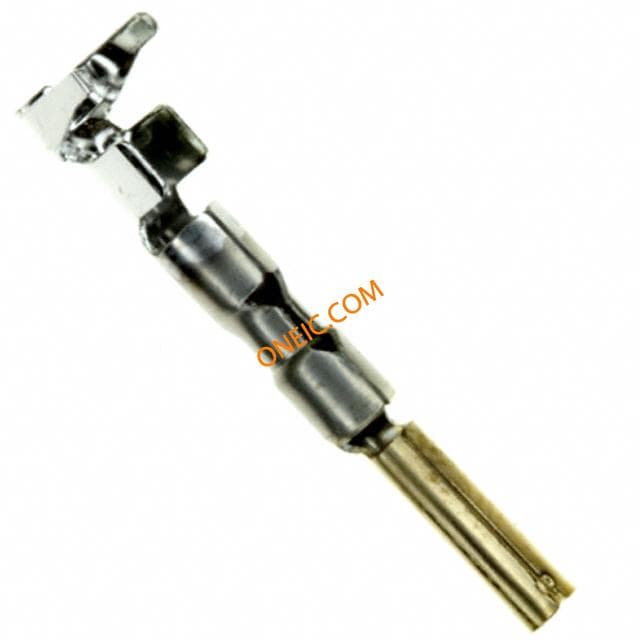

794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-770858-0
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT .163 TIN Headers & Wire Housings HEADER 10 POS TIN DUAL ROW Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYSNDBLLF 10P MINI UMNL HDR ASSY SNDBL L
770743-2
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS STR DUAL .163 AU Power to the Board 10P PIN HDR 2ROW 200 10P MINI UMNL HDR ASSY D/R VRT
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF

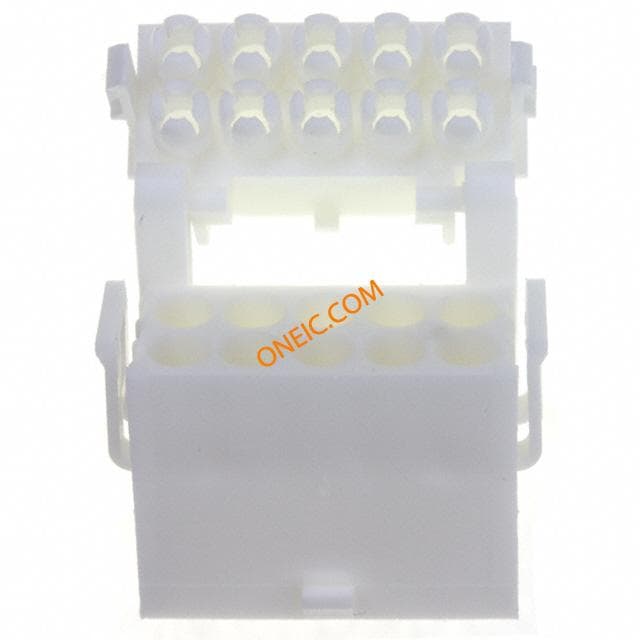

794197-1
te connectivity / amp
Conn Housing RCP 10 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 10POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 10 POS Conn Housing RCP 10 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL2 CAP HSG UL94V0
770971-1
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 TIN Power to the Board RA DUAL PIN HDR 10P 800 Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL R/A HDR ASSY SN
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A
794250-1
TE Connectivity / AMP
Pin & Socket Connectors 10P MINI UMNL2 CAP HSG UL94V2 .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 10POS DL FREE HANG
1-794328-0
TE Connectivity / AMP
Pin & Socket Connectors 10P MINI UMNL HDR ASSY BLMT LF .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT MINI-UMNL

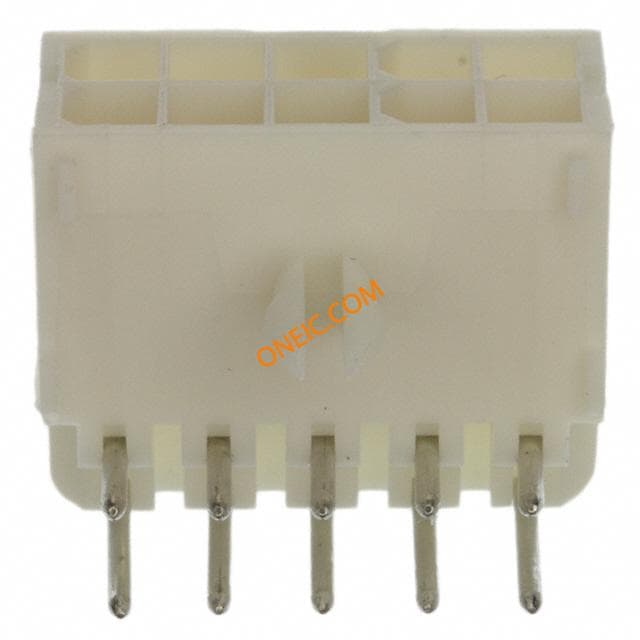

770971-2
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 AU Pin & Socket Connectors 10P HEADER 800 Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10Terminal 1Port Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

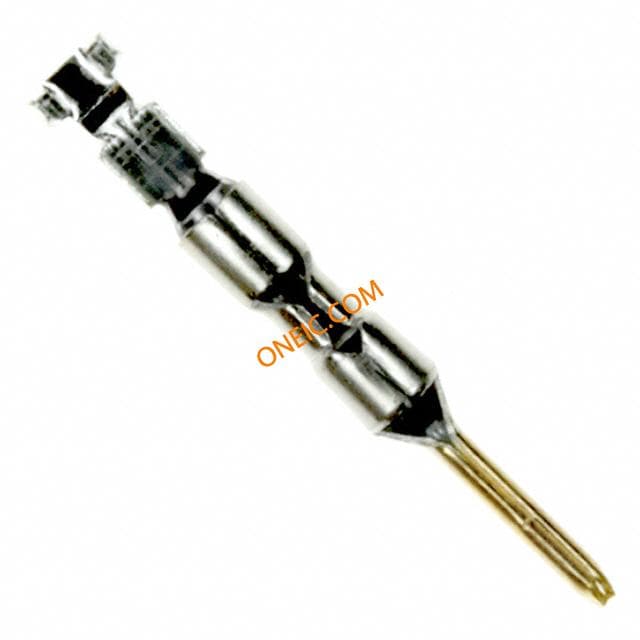

794226-3
