1-770971-0
| Manufacturer | |
| Description | Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 10 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS R/A TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 10WAY MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYSN Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY SN |
| Category |
Business
| Tradename | MATE-N-LOK | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL, VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :TE - Mini-Universal MATE-N-LOK Series | Voltage - Test | :1500V |
| Voltage Rating | 600 V ac | Switch Function | Latched |
| Current Rating (Max) | 9.5A | Current - Max/Contact | :10.5A |
| Insulation Resistance | :100Mohm | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Pitch | 4.14 mm |
| Height | 11.86 mm | Weight | 0.004 |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 22.8 mm | Primary Material | InterconnectSystem |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :White | Number of Contacts | 10 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 10 |
| Contact Finish Thickness | 150µin (3.81µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Power | Gender | HDR |
| Series | MATE-N-LOK | Features | Board Lock |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Headers | Number of Ports | 1 Port |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | :65°C | ||
Documents & Media
Similar Parts
770580-1
te connectivity / amp
Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,10Way Pin & Socket Connectors PLUGHOUSE 10 POS Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, RECEPT Connector,SoftShell;10;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 5 Double row / straight / accepts male or female contacts MATE-N-LOK, 770580-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 10 路 直 公 电缆安装 压接连接器外壳 10P MINI UMNL PLUG HSG
794196-1
te connectivity / amp
Conn Housing PL 10 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE 2 Pin & Socket Connectors 10P MINI UMNL2 PLUG Conn Housing PL 10 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 10WAY MINIUMNL2HOUSINGS,10PMINIUMNL2PLUGHSGUL94V0 Crimp housing Pitch4.14 mm Poles 2 x 5 MATE-N-LOK II Mini Universal, 794196-1, TE Connectivity 10P MINI UMNL2 PLUG HSG UL94V0

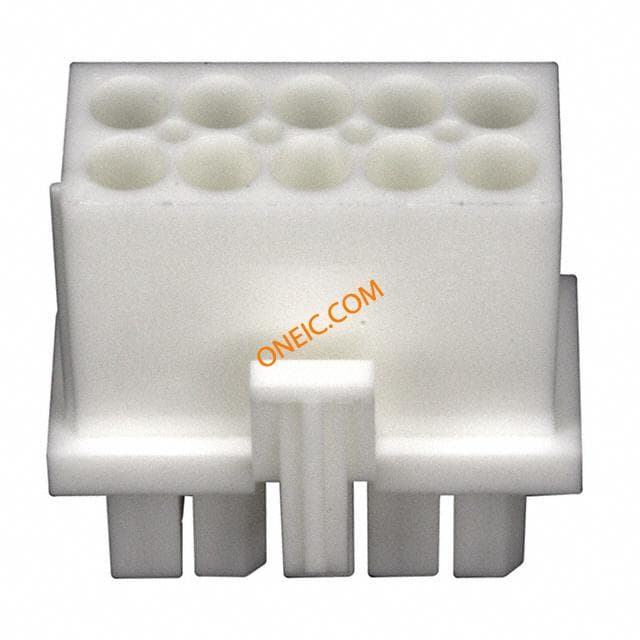

794781-1
