788154-2
| Manufacturer | |
| Description | Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS SIZE 11 BLK 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector REC SKT 11-4 PNL SEALED Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL ConnectorHousing;CPCRecept.Assy;4Pos;Sz11;Series1;PanelMnt;RevSex Receptacle CPC1 Poles=4, accepts female contacts / with flange, 788154-2, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 母触点 SLD CPC RCPT ASSY,11-4,REV SEX |
| Category |
Business
| Tradename | CPC Series 1 | Other Names | 7881542 |
| Product Category | Standard Circular Connector | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | UL/CSA/VDE/SAE/ASAE |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 600 V ac | Number of Channels | 4 |
Mechanical
| Color | Red | Depth | 28.58 mm |
| Height | 28.58 mm | Sealed | Yes |
| Weight | 0.009 | Material | Elastomer |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 11 | Orientation | A |
| Shell Style | Receptacle | Termination | Crimp |
| Thread Size | 5/8 - 24 UNEF-2A | Contact Form | 4Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Receptacle for Female Contacts |
| Fastening Type | Threaded | Mounting Style | Panel |
| Connector Style | Receptacle | Material - Body | :Nylon (Polyamide) |
| Housing Material | Nylon 66 | Length - Overall | 49.78 mm |
| Panel Mount Type | Square Flange | Primary Material | CircularPlasticConnector |
| Termination Style | Wire | 1st Contact Gender | Female |
| Mating Orientation | Keyed | Number of Contacts | 4 |
| Insulation Diameter | 0.065to0.1" | Number of Positions | 4 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 3.18 [.125] |
| Shell Material, Finish | Nylon | 1st Connector Mounting Type | :Panel |
| 2nd Connector Mounting Feature | Reverse | Shell Size - Insert (Convert To) | 11-4 |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | RCP | Series | Series 1 |
| Features | ReverseGender | Preloaded | No |
| Arrangement | 11-4 | Manufacturer | Series1 |
| Product Type | Connector | RF Family/Standard | 788154 |
| Other Specifications | Without | Application Specifics | Commercial |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Seal Rating | Wire Entry | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | +125°C | ||
Documents & Media
Similar Parts
788153-2
te connectivity / amp

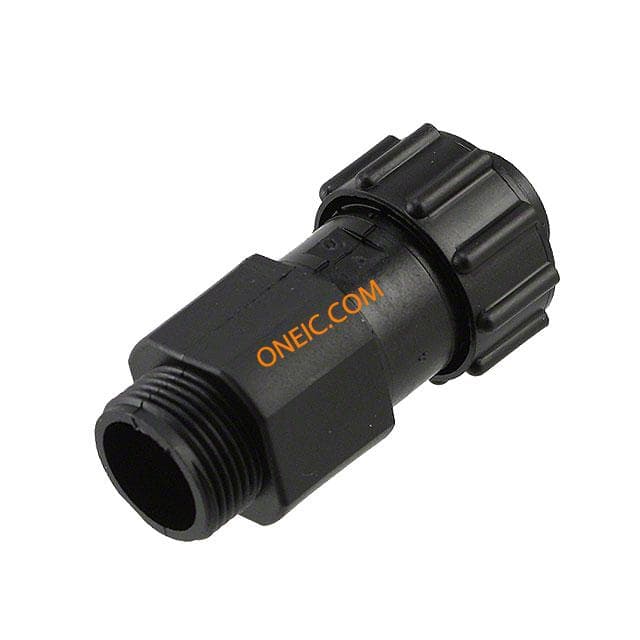

Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS SIZE 11 BLK Housing 4 way pin size 11 CPC Standard Circular Connector PLUG 11-4 REV SEX Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount / sealed, 788153-2, TE Connectivity TE Connectivity Series 1 系列 4路 面板安装 直向 连接器 插头 , 公触点 SLD CPC PLUG ASSY,11-4,REV SEX
