788153-2
| Manufacturer | |
| Description | Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS SIZE 11 BLK Housing 4 way pin size 11 CPC Standard Circular Connector PLUG 11-4 REV SEX Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount / sealed, 788153-2, TE Connectivity TE Connectivity Series 1 系列 4路 面板安装 直向 连接器 插头 , 公触点 SLD CPC PLUG ASSY,11-4,REV SEX |
| Category |
Business
| Tradename | CPC Series 1 | Other Names | 7881532 |
| Product Category | Standard Circular Connector | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Compliance | No | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | UL/CSA/VDE/SAE/ASAE | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600 V ac/dc | Number of Channels | 4 |
| Current Rating (Max) | 17A | ||
Mechanical
| Color | Red | Sealed | Yes |
| Weight | 0.014 | Material | Elastomer |
| Packaging | Bulk | Shell Size | 11 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp | Thread Size | 5/8 - 24 UNEF-2A |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Male Contacts |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Connector Style | Plug |
| Insertion Angle | :11-4 | Material - Body | :Nylon (Polyamide) |
| Material - Core | Nylon 6/6 | Contact Material | Copper Alloy |
| Housing Material | Nylon 66 | Primary Material | CircularPlasticConnector |
| Termination Style | Wire | 1st Contact Gender | Male |
| Diameter - Ring ID | 46.00 [1.182] | Mating Orientation | Keyed |
| Number of Contacts | 4 | Insulation Diameter | 0.065to0.1" |
| Number of Positions | 4 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Nylon | 1st Connector Mounting Type | :Cable |
| 2nd Connector Mounting Feature | Reverse | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | Series 1 |
| Features | ReverseGender | Preloaded | No |
| Arrangement | 11-4 | Manufacturer | Series1 |
| Product Type | Connector | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Pin Contacts |
Environmental
| Seal Rating | Wire Entry | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

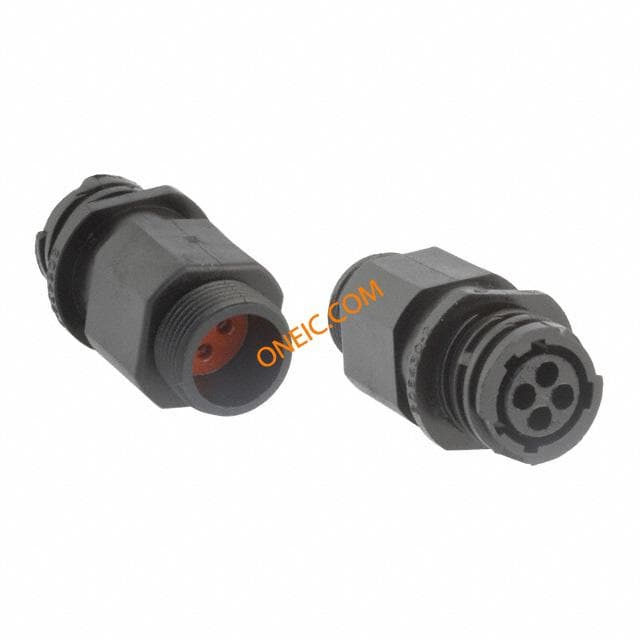

788155-2
