770680-1
| Manufacturer | |
| Description | Conn Housing PL 23 POS ST Automotive Connectors AMPSEAL 23P PLUG BLACK AMPSEAL CONN PLUG ASSY 23POS SEALED AMPSEAL 23 way plug housing, black Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Black HOUSING, PLUG/SOCKET, 23POS PLUG, AMPSEAL, 23 WAY AMPSEAL23wayplughousing,black TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23 POS AMP SEAL PLUG ASSY |
| Category |
Business
| Product | Housings | Product Category | Automotive Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not reviewed for lead free solder process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Current Rating (Max) | 17 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Pitch | :4mm |
| Width | 34.6mm | Height | 34.6 mm |
| Length | 47.4mm | Weight | 0.005 |
| Packaging | Bulk | Wire Gauge | 16-20 |
| Contact Type | Plug | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 3 | Housing Material | Thermoplastic |
| Length - Overall | 47.4 mm | Primary Material | Connector |
| Termination Style | Crimp | Color - Connectors | :Black |
| Number of Contacts | 23 | Contact Termination | Crimp |
| Number of Positions | 23 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Ampseal |
| Manufacturer | AMPSEAL | Product Type | Plug Assembly |
| Accessory Type | :Housing | Connection Type | Wire |
| For Use With/Related Products | Automotive Plug Connector | ||
Documents & Media
Similar Parts
770520-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip AMPSEAL CONTACT, AMPSEAL AUPL Automotive Connectors CONTACT AMPSEAL AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialStrip CRIMP SOCKET, AMPSEAL, 16-20AWG AMPSEAL and AMPSEAL 16 Connector System; AMPSEAL Product Line Applies To Wire/Cable Contact Contact Type: Socket Crimp Termination Method CONTACT, AMPSEAL AUPL
770678-1
te connectivity / amp
Connector Accessories Seal Plug Nylon 6/6 Natural Automotive Connectors AMPSEAL ACC:SEAL PLUG AMPSEAL SEAL PLUG, AMPSEAL Seal Plug AmpSeal Connector Accessories Seal Plug Nylon 6/6 Natural Product Highlights:Seal Plug SEAL, CONTACT, PLUG, AMPSEAL SealPlugAmpSeal TE Connectivity 封条
770680-1
te connectivity / amp
Conn Housing PL 23 POS ST Automotive Connectors AMPSEAL 23P PLUG BLACK AMPSEAL CONN PLUG ASSY 23POS SEALED AMPSEAL 23 way plug housing, black Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Black HOUSING, PLUG/SOCKET, 23POS PLUG, AMPSEAL, 23 WAY AMPSEAL23wayplughousing,black TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23 POS AMP SEAL PLUG ASSY
770854-3
te connectivity / amp

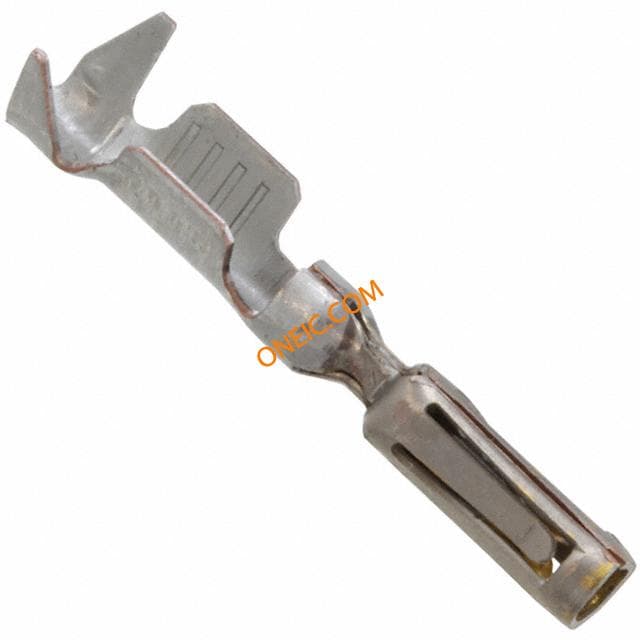

Contact SKT Crimp ST Cable Mount Loose Piece AMPSEAL CONN RECEPT CRIMP GOLD AMPSEAL AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors AMPSEAL CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialPackaging Method = Loose Piece CONTACT, GOLD RECEPT., CRIMP AMPSEALsocketcrimpcontact,AWG16-20 TE Connectivity AMPSEAL 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,AMPSEAL AU L/P
776087-1
te connectivity / amp

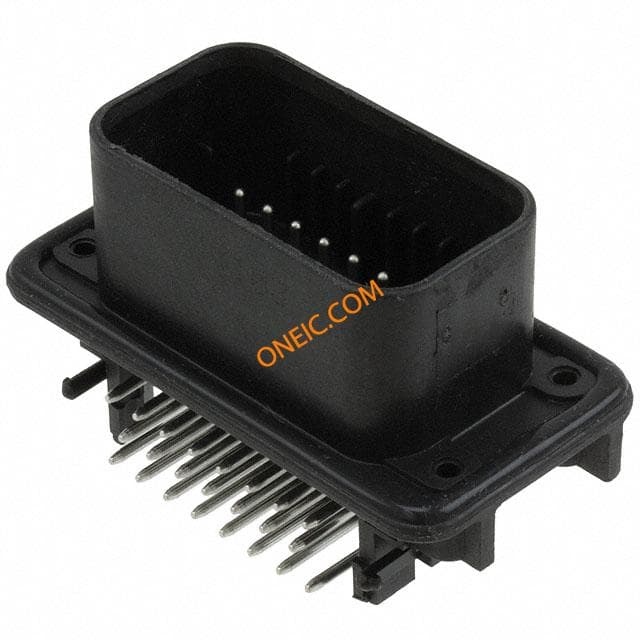

Conn Wire to Board HDR 23 POS 4mm Solder RA Thru-Hole AMPSEAL CONN HDR RTANG 23POS W/GASKT TIN TE Connectivity AMPSEAL Series 4mm Pitch 23 Way 3 Row Right Angle PCB Header, Solder Termination, 8A Automotive Connectors 23 POS AMPSEAL HDR S Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 23Terminate To Panel, Terminate To Printed Circuit BoardRight Angle Mount AngleWith Gasket CONNECTOR, PLUG/SOCKET, 23POS AMPSEAL23wayrightangleplugheader TE Connectivity AMPSEAL 系列 4mm节距 23路 (3排) 直角 PCB 针座, 焊接端接, 8A , 通孔 23 POS AMPSEAL HDR SNAP IN W/G
