点击放大查看
770233-1
| Manufacturer | |
| Description | Connector Accessories 4 POS Dust Cover Polyester White Soft Shell - Accessories CONN DUST COVER 4POS WHITE Dust Cover IDC 4 way CMNL feed through Pin & Socket Connectors DUST COVER Connector Accessories 4 POS Dust Cover Polyester White Product Highlights:Dust CoverCommercial MATE-N-LOKPolyester Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP DUSTCOVER,MATE-N-LOK,4POSITION,WHITE,FORFEEDTHROUGHWIRING TE Connectivity Commercial MATE-N-LOK 系列 4路 IDC 连接器 CMNL IDC COVER |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | White | Depth | 12.82 mm |
| Height | 36.06 mm | Material | 聚酯 |
| Packaging | 包装 | Connector Type | Cap (Cover), Dust |
| Housing Material | Polyester | Length - Overall | 19.3 mm |
| Package Quantity | 1 | Primary Material | Interconnect |
| Number of Contacts | 4 | Number of Positions | 4 |
| Contact Layout, Typical | In-Line | ||
Product Info
| Note | For feed through wiring. For use with Insulation Displacement Connectors only. | Type | Cover |
| Series | Mate-N-Lok | Features | Feed Through |
| Main Purpose | Feed Through | Manufacturer | MATE-N-LOK |
| Product Type | Dust Cover | Accessory Type | Cap (Cover), Dust |
| Number of Circuits | 4 | RF Family/Standard | 770233 |
| For Use With/Related Products | Commercial MATE-N-LOK Series | ||
Documents & Media
Similar Parts
794036-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 20AWG Pin & Socket Connectors 4P PLUG ASSY IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V0

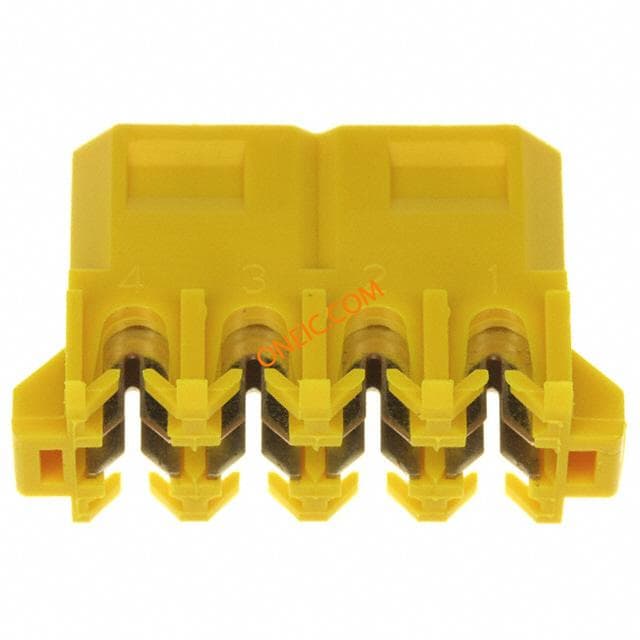

770156-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 20AWG Power to the Board 4 CKT IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V2
770156-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 22AWG Power to the Board 4 CKT IDC RED Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. 4P CMNL IDC PLUG 22AWG RED V2

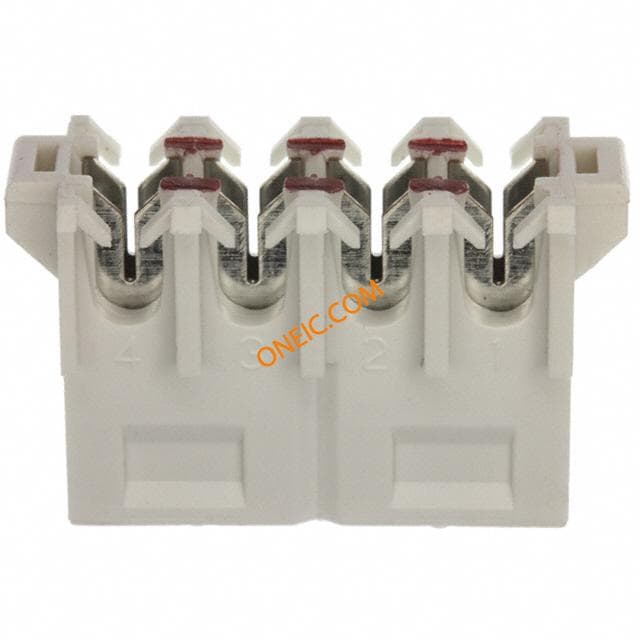

794036-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 22AWG Pin & Socket Connectors 4P PLUG CONN IDC 22AWG Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04PCMNLIDCPLUGCONN22AWG 4P CMNL IDC PLUG 22AWG RED V0

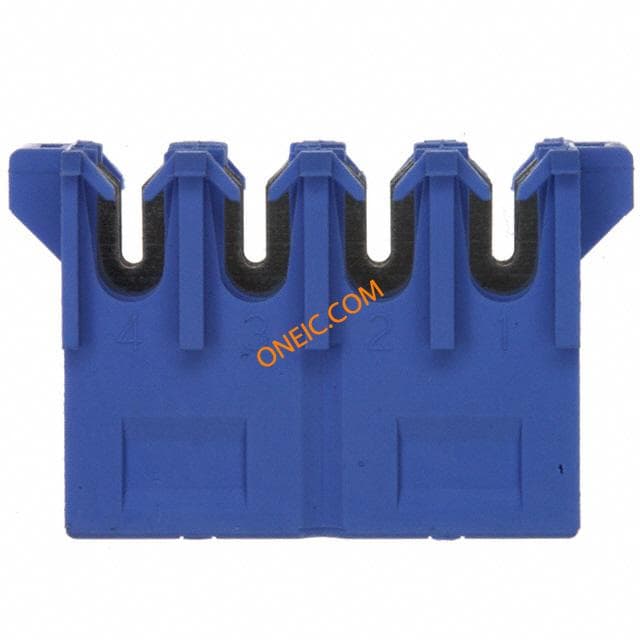

794036-4
