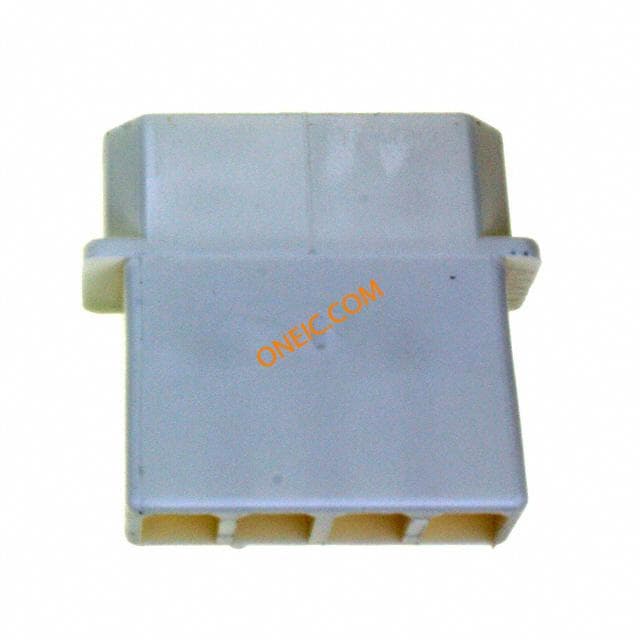

770827-1
| Manufacturer | |
| Description | Conn Housing PL 4 POS 5.08mm Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4POS MATE-N-LOK Mate-n-lok,housing,plug,4way skt contact Pin & Socket Connectors PLUG HOUSING 4P Conn Housing PL 4 POS 5.08mm Crimp ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR,SOFTSHELL,MATE-N-LOK,4POSITION,PLUG,NYLON,WHITE TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 公 PCB 壳体 04P CMNL PLUG HSG 94-VO |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 已认证, 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Frequency - Center | 带有 | Current Rating (Max) | 13/Contact A |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | Commercial MATE-N-LOK |
Mechanical
| Color | White | Depth | 21.59mm |
| Pitch | 5.08 mm | Length | 25.96mm |
| Sealed | Not Sealed | Lock Type | Detent Lock |
| Packaging | Bulk | Body Color | 白色 |
| Wire Gauge | 14-30 AWG | Orientation | 直 |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Detent Lock |
| Number of Rows | 1 | Package / Case | Plug |
| Height (Inches) | .85 | Width - Overall | .245 |
| Housing Material | Nylon | Length - Overall | 25.96 mm |
| Package Quantity | One Piece Housing | Panel Mount Type | 不带 |
| Termination Style | 插座 | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Compatible Shell Size | 插针（盖帽）护套 | Center Contact Material | 5.08 [.200] |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 2.13 [0.084] |
Product Info
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | Number of Circuits | 4 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -30C to 105C |
Documents & Media
