749877-9
| Manufacturer | |
| Description | Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 100POS .050 PNLMT COV I/O Connectors PNL MNT RCPT 100P 384 SCSI CONNECTOR RECEPTACLE 100POS IDC/IDT 100 50SR PANEL MOUNT RCPT |
| Category |
Business
| Product | SCSI Connectors | Lead Time | 70 Days |
| Subcategory | Connector SCSI | Product Category | I/O Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 6 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite 0.050 Series | Voltage Rating | 30V |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Weight | 0.00001 | Packaging | Tube |
| Cable Type | Ribbon Cable, Round Jacketed Cable | Shield Type | No |
| Termination | IDT | Thread Size | 4-40 |
| Contact Type | Signal | 2nd Connector | Without |
| Mounting Type | Cable Mount | Shell Plating | Nickel over Copper |
| Connector Type | IDC | Contact Finish | Tin-Lead over Nickel |
| Flange Feature | Housing/Shell (4-40) | Mounting Rails | Without |
| Mounting Style | Cable | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Type |
| Contact Material | Phosphor Bronze | Cord Termination | Assembled |
| Housing Material | Thermoplastic | Panel Mount Type | With |
| Termination Style | With | Number of Contacts | 100 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 0.74 â 0.91 [0.029 â 0.036] |
| Number of Positions | 100 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Wire Gauge or Range - mm2 | 0.05-0.09² [30-28] |
| 1st Connector Mounting Type | :Cable | Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
Product Info
| Type | SCSI | Detent | Without |
| Gender | RCP | Series | Series III |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | Wire | Number of Ports | 1 |
| For Use With/Related Products | 5-749877-9 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
5787170-9
te connectivity / amp
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port D-Sub Standard Connectors 050 100R R/A .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 100PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM 100 50SR R/A RCP ASSY,RDSN L/F
1761028-5
te connectivity / amp
Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 050 100R R/A PCB .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 AMPLIMITE .050 d-sub PCB socket,100 way 1761028-5 Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCPT ASSY,LEADFREE
5749699-8
te connectivity / amp

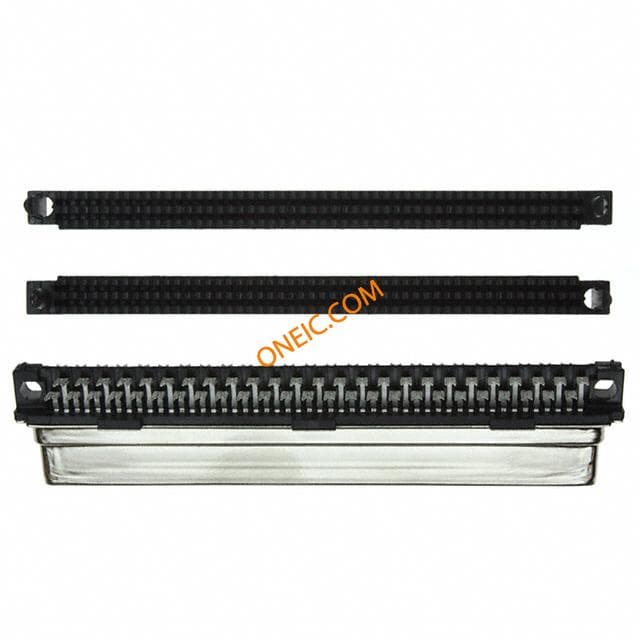

Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 100POS .050SR W/COVER I/O Connectors SHIELDED RECPT 100P w/unassembled cvrs Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR RECEPTACLE 100POS IDC/IDT 100 50SR CABLE RCPT KIT
