5749699-8
| Manufacturer | |
| Description | Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 100POS .050SR W/COVER I/O Connectors SHIELDED RECPT 100P w/unassembled cvrs Conn SCSI RCP 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 100Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR RECEPTACLE 100POS IDC/IDT 100 50SR CABLE RCPT KIT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SCSI Connectors | Product Category | I/O Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 7 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30V | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Weight | 0 | Packaging | Bulk |
| Cable Type | Round Jacketed Cable | Shield Type | Yes |
| Termination | IDT | Contact Type | Signal |
| 2nd Connector | Without | Mounting Type | Cable Mount |
| Shell Plating | Tin-Nickel Alloy | Connector Type | IDC |
| Contact Finish | Tin over Nickel | Mounting Rails | Without |
| Mounting Style | Cable | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Type |
| Contact Material | Phosphor Bronze | Cord Termination | Unassembled |
| Housing Material | Thermoplastic | Panel Mount Type | Without |
| Termination Style | With | Number of Contacts | 100 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 0.74 â 0.91 [0.029 â 0.036] |
| Number of Positions | 100 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Wire Gauge or Range - mm2 | 0.05-0.09² [30-28] |
| 1st Connector Mounting Type | :Cable | Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
Product Info
| Note | Receptacle connector requires backshell kit for complete assembly | Type | SCSI |
| Detent | Without | Gender | RCP |
| Series | Series III | Features | Shielded |
| Product Type | Connector | Connection Type | Wire |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Online Document
Similar Parts
5749197-1
te connectivity / amp
100 50SR KIT,ST,UK D-Sub Tools & Hardware 100 50SR KIT ST UK Backshell Kit 180° Nickel Over Copper Zinc Individual TE Connectivity Amplimite 0.050 系列 100 路 直 锌 D-sub 连接器底壳 , 带应力消除
$97.3080
Details

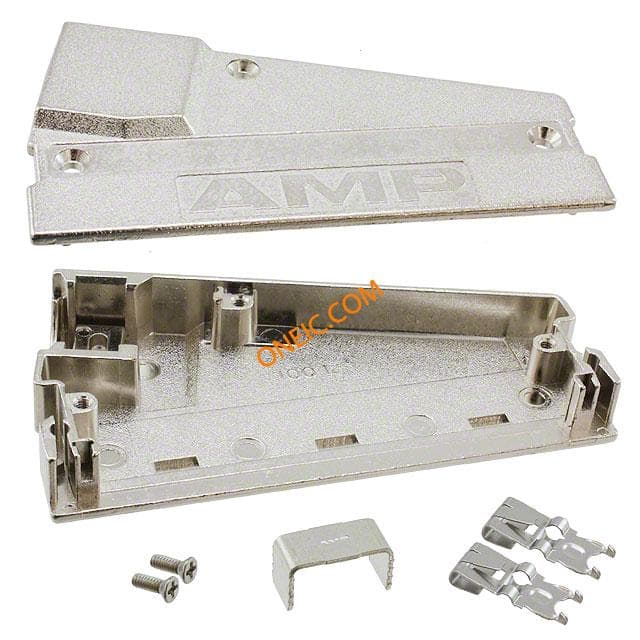

5749206-1
