6643281-1
| Manufacturer | |
| Description | Conn Power PIN 1 POS Solder RA Thru-Hole 1 Terminal 1 Port ICCON Single-Pole Power Connectors CONN PIN ICCON R/A PCB Power to the Board STD DIP R/A PIN SLDR NO-LK 11.93MM Conn Power PIN 1 POS Solder RA Thru-Hole 1 Terminal 1 Port Product Highlights:ConnectorPinPin Length = 11.93 mmWithout Locking FeatureFootprint = 7.62 x 2.54 mmSearch Keywords:ICCON Single Pole Power Connectors DIP Footprint high current quick connect/disconnect CROWN Band CONNECTOR, POWER, PIN, R/A, 1WAY ICCON,PIN,ASSY |
| Category |
Business
| Other Names | A36259 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 64 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 35A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.005 | Packaging | Bulk |
| Termination | Solder | Length - Pin | 11.93 [0.470] |
| Housing Color | No | Mounting Type | Through Hole |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Mounting Style | Through-Hole | Plating - Body | Gold over Nickel |
| Connector Style | Power | Locking Feature | Without |
| Material - Core | Beryllium Copper | Contact Material | Brass |
| Housing Material | Polyester GF 30% | Outline L x W x H | 7.62 x 2.54 [.300 x .100] |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 1 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 1 | Contact Layout, Typical | 1 Power |
| Contact Finish Thickness | 200µin (5.08µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Power | Gender | PIN |
| Series | ICCON | Product Type | Connector |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
Documents & Media
Similar Parts

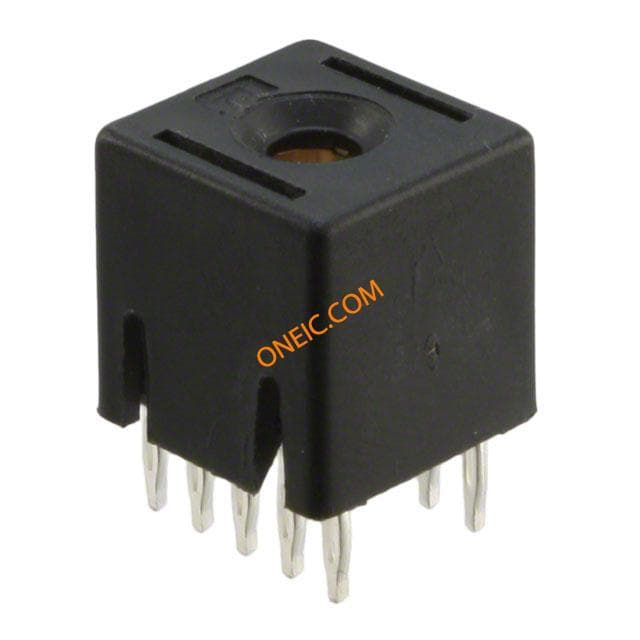

6643269-1
