650923-5
| Manufacturer | |
| Description | Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN AP ASSY |
| Category |
Business
| Other Names | A1270 | Standard Pack | 30 |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Interface | Eurocard/DIN 41612 | Voltage - Supply | 250 |
| Current Rating (Max) | 1.5 | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Height | 11.51 mm [ .453 in ] | Coating | Without |
| Packaging | Bulk | Shielding | 否 |
| Thickness | 2.36 [0.093] | Termination | Solder |
| Contact Type | Compliant Post | Mounting Type | Through Hole |
| Terminal Size | .64 x .64 mm [ .025 x .025 in ] | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Contact Timing | 否 |
| Mounting Style | 带有 | Number of Rows | 3 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Mounting Feature | 作用/符合标准的尾 |
| Panel Mount Type | 通孔 - 焊接 | Size / Dimension | II |
| Make Before Break | No | Termination Style | 插针 |
| Mating Orientation | Without | Number of Contacts | 150 |
| Number of Positions | 150 | Contact Length - Post | 13.23 mm [ .516 in ] |
| Material - Insulation | Polyester, Glass Filled | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Termination Post Length | 13.23 [0.521] |
| Contact Finish Thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] | ||
Product Info
| Type | DIN 41612 | Grade | II |
| Style | R | Guide Method | Without |
| Product Type | Plug | Number of Columns | 50 |
| Number of Positions Loaded | All | ||
Environmental
| Level, Class | 2 | Operating Temperature | -55°C ~ 125°C |
| Thermal Resistance of Package | 2.36 mm [ .093 in ] | ||
Similar Parts
650406-5
te connectivity / amp
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors EUROCARD RECPT 150P 600 Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 150Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE C RECEPT ST ASSY
148295-5
te connectivity / amp
Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN EUROCARD RCPT 150POS TYPE R DIN 41612 Connectors 150P R/A RECEPT Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYP R RECEPT EON ASSY
535080-5
te connectivity / amp
Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors 150P TYPE C DIN RECP Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C150 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

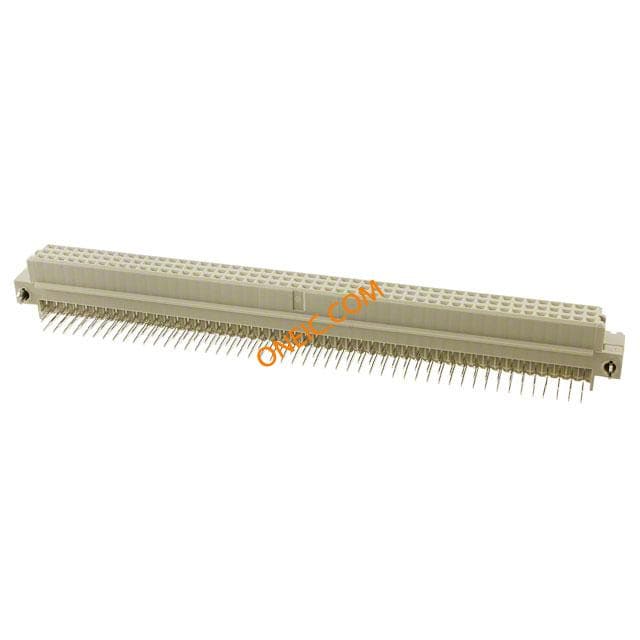

650959-5
