535080-5
| Manufacturer | |
| Description | Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 150POS VERT PCB DIN 41612 Connectors 150P TYPE C DIN RECP Conn DIN 41612 RCP 150 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C150 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Size | Expanded | Color | Gray |
| Pitch | 2.54 mm | Coating | Without |
| Packaging | Bulk | Termination | Press Fit |
| Contact Size | 0.30 x 0.61 [.012 x .024] | Contact Type | Compliant Post |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Palladium Nickel | Number of Rows | 3 |
| Board Thickness | 1.57 [0.062] | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Mounting Feature | With |
| Make Before Break | No | Termination Style | Solder Pin |
| Number of Contacts | 150 | Number of Positions | 150 |
| Material - Insulation | Polyester, Glass Filled | Termination Post Length | 4.83 [0.190] |
Product Info
| Note | When installed using an SM-3 Machine a spacer of 1.050 [26.67] is needed to mak | Type | DIN 41612 |
| Grade | II | Style | C |
| Gender | Receptacle | Series | 535080 |
| Product Type | Type C Connectors | Connection Type | Printed Circuit Board |
| Tool Type Feature | Yes | Number of Positions Loaded | All |
Environmental
| Temperature | No | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
650915-5
te connectivity / amp
Conn DIN 41612 M 150 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 150POS RT ANG PCB DIN 41612 Connectors DIN PLUG 150P R/A TYPE C 150 EURO TYPE C PIN BL ASSY 150 EURO TYPE C PIN BL ASSY Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
650923-5
te connectivity / amp
Conn DIN 41612 PIN 150 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 150POS VERT PCB Eurocard Type R Product Highlights:PlugNumber of Positions = 150PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 150 EURO TYPE R PIN AP ASSY

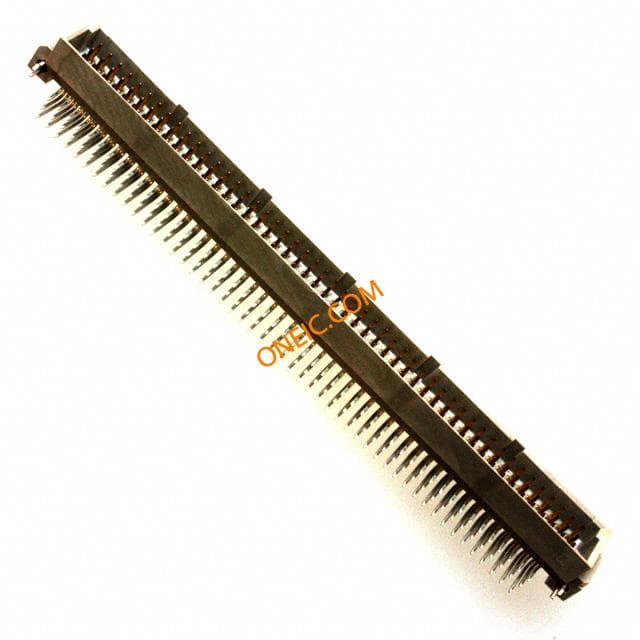

5650915-5
