647845-8
| Manufacturer | |
| Description | Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Power Connectors CONN HOUSING 2POS YELLOW Heavy Duty Power Connectors SERIES 50 HSG YELLOW Power Connectors Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = YellowSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES50HOUSING,YELLOW SERIES 50 HOUSING,YELLOW |
| Category |
Business
| Standard Pack | 175 | Product Category | Heavy Duty Power Connectors |
| Standard Package | Bag | Factory Pack Quantity | 175 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL |
| UL Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 50 A | ||
Mechanical
| Color | Yellow | Width | 35.05 mm [ 1.38 in ] |
| Height | 15.88 mm [ .625 in ] | Length | 48.23 mm [ 1.9 in ] |
| Sealed | 不密封 | Packaging | Bulk |
| Body Color | 黄色 | Cable Type | 分离式导线 |
| Wire Gauge | 12 – 6 | Contact Type | Non Gendered |
| Mounting Type | Cable Mount | Cable Diameter | 6088 – 27629 |
| Connector Type | Non Gendered | Contact Finish | Silver |
| Fastening Type | Spring Retention | Number of Rows | 1 |
| Insertion Force | Female / Male | Contact Material | Copper |
| Housing Material | Polycarbonate (PC) | Package Quantity | 175 |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| Number of Contacts | 2 | Stacking Direction | Side to Side |
| Contact Termination | Crimp | Insulation Diameter | 10 mm [ .394 in ] |
| Number of Positions | 2 | Shell Size - Insert | 插头/插座 |
| Material - Insulation | Polycarbonate (PC) | Wire Gauge or Range - AWG | 12-6 |
Product Info
| Note | Contacts Not Provided | Type | Battery |
| Gender | RCP | Series | 50 |
| Product Type | Connectors | Application Specifics | Power |
Documents & Media
Similar Parts
647893-8
te connectivity / amp
Connector Accessories Kit And Spring Subassembly Heavy Duty Power Connectors SERIES 50 CONN 10-12 AWG YELLOW Power Connectors CONN PLUG 2POS 10-12 AWG SILVER Power Connectors Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 10-12 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SRS 50 CONN KIT,YELOW,10-12AWG

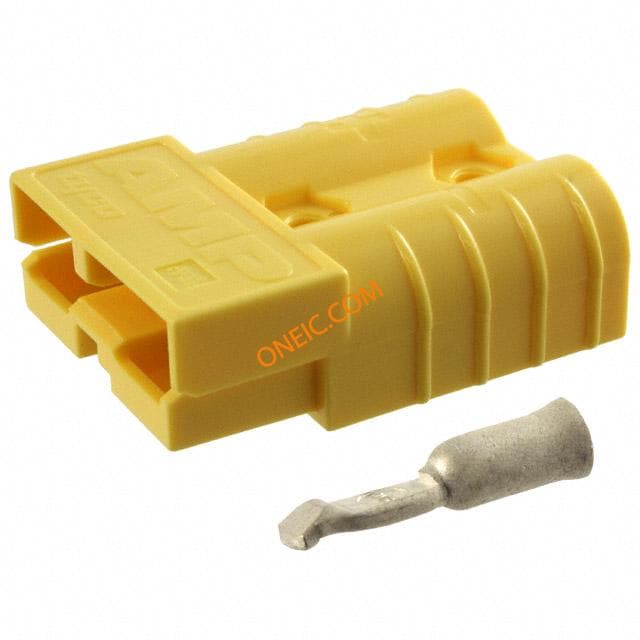

647892-8
