点击放大查看
647000-2
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG MTA-100 Headers & Wire Housings 02P MTA100 PSTD CONN ASSY SN Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 PSTD CONN ASSY SN |
| Category |
Business
| Other Names | Q774070 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 300 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Red | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 7.62 mm [ .3 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 实心, 绞线 | Wire Gauge | 22 AWG |
| Termination | IDT | Contact Type | Male Pin |
| 2nd Connector | Without | Housing Color | Red |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Mounting Style | Wire | Number of Rows | 1 |
| Plating - Body | Nickel | Shell Material | 标准 |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | 300 |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 2 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 2 |
| Compatible Shell Size | MTA .100 标准连接器 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.3-0.4² [22] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Note | Cannot mate with MTA-100 connector with polarizing tab. | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Similar Parts
640441-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 2P white tin 24 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,02PMTA100CONNASSYWHT 02P MTA100 CONN ASSY WHT
3-641314-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN

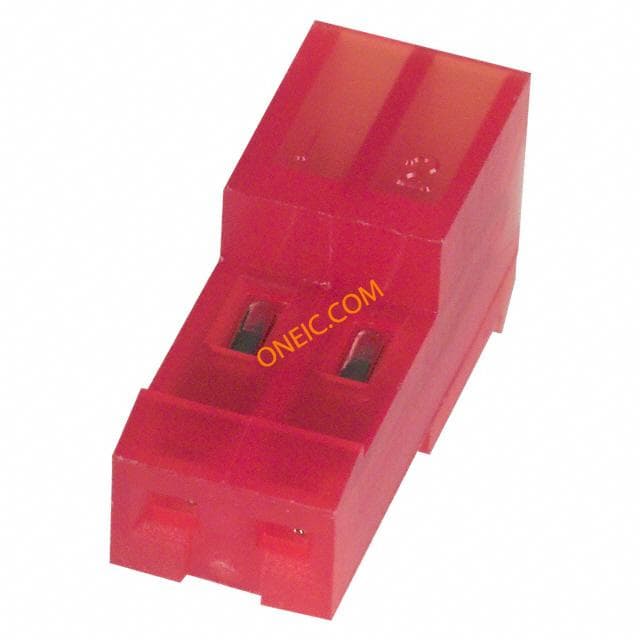

640440-2
