3-641314-2
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN |
| Category |
Business
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage - Rated AC | 250 | ||
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Packaging | Tape & Reel (TR) | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Cable Exit | 90° |
| Wire Gauge | 28 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | Green | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Feed Thru | Contact Finish | Tin Over Nickel |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | Tape Mounted on Reel | Panel Mount Type | Without |
| Cable Termination | IDC | Mating Orientation | Without |
| Number of Contacts | 2 | Number of Positions | 2 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.08-0.09² [28] |
Product Info
| Type | IDC Connector | Gender | F |
| Features | Feed Through | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Documents & Media
Similar Parts

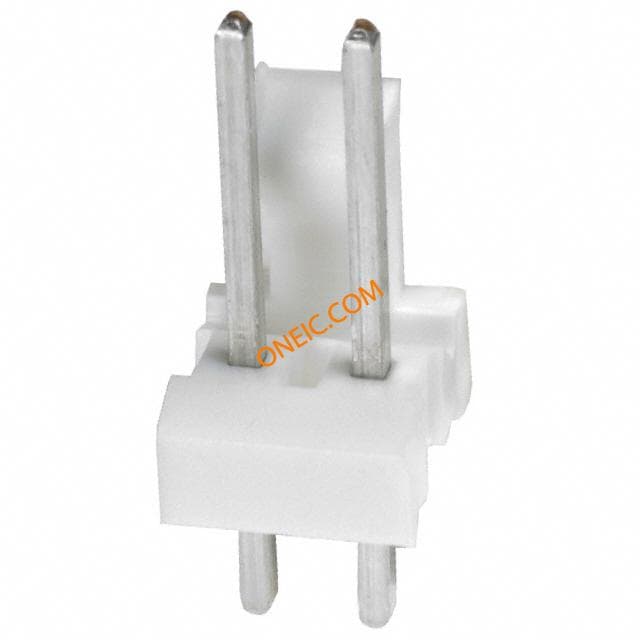

640454-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,Polarized;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;0.100in. Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:2 Pin header 2P, 640454-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ STR POL
640456-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:2; tinned; 2.54mm Pin header 2P, 640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY F/L SQ STR

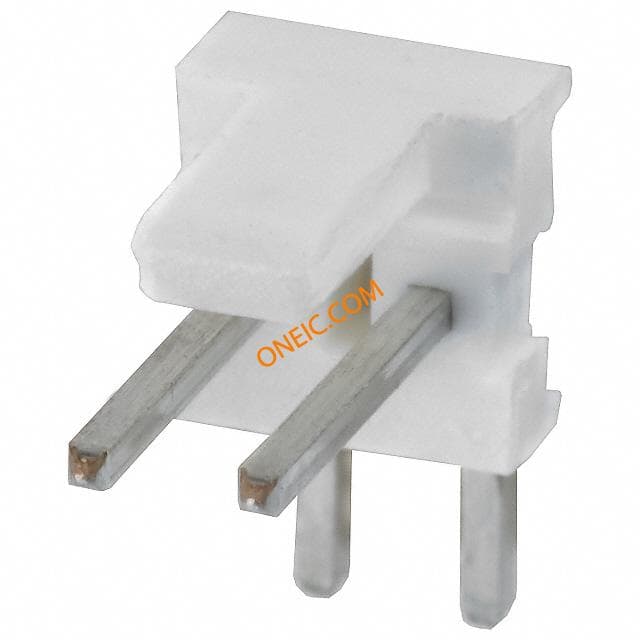

640457-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, RA, 2.54MM, 2WAY Header,FrictionLock;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:2; tinned; 2.54mm Pin header angled 2P, 640457-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ R/A F/L
2-644486-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Straight Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,02PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 SHRDED HDR ASSY SN

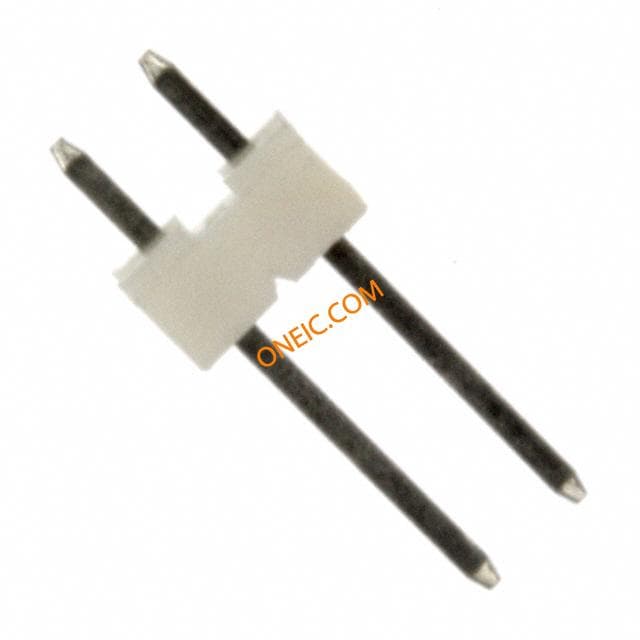

3-644456-2
