6469002-1
| Manufacturer | |
| Description | Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 80POS 8ROW VERT HM ATCA,backplane connector,PCB Hard Metric Connectors HM-ZD 4PR 80P HDR ASSY Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:25.4 mm Card Slot PitchHeaderPCB Mount Angle = VerticalPairs per Column = 4Columns per Connector = 10Search Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, ATCA, BACKPLANE HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,5.22MM,PCB 80 Position 2.5 mm Vertical Header Backplane Z-PACK HM-Zd Signal Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直向 8 排 公 背板连接器, 按式端子 HM-ZD 4PR HDR 80P 5.2MM |
| Category |
Business
| Other Names | 64690021 | Part # Aliases | 512-6922 |
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | HM-Zd | Voltage Rating | 250V |
| Voltage - Working | :250V | Current Rating (Max) | 0.700A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Depth | 23.43 mm | Pitch | 2.5 mm |
| Height | 13.4 mm | Weight | 0.006 |
| Packaging | Tube | Termination | Press Fit |
| Contact Type | ACTION PIN Post | Lead Spacing | :2mm |
| Pitch - Post | :1.5mm | Mounting Type | Through Hole |
| Pitch - Cable | 25.4 [1] | Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 8 | Connector Style | High Speed |
| Connector Usage | Backplane | Shield Material | Phosphor bronze |
| Contact Material | Phosphor Bronze | Housing Material | Polyester GF |
| Length - Overall | 24.90 [0.980] | Termination Style | Press Fit |
| Color - Connectors | 40 | Number of Contacts | 80 |
| Termination Finish | Tin over Nickel | Contact Termination | :Press Fit Vertical |
| Number of Positions | 80 | Length - Post (Mating) | 2.50 [0.098] |
| Contact Layout, Typical | 80 Single Signal, 40 Ground | Contact Length - Mating | 5.30 [0.209] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Advanced TCA | Gender | Male |
| Series | Z-Pack HM-ZD | w/Sequencer | No |
| Manufacturer | AMP | Product Type | Header |
| Number of Columns | 10 | Selectively Loaded | No |
| Number of Positions Loaded | All | Number of Positions (Convert From) | 10 |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts

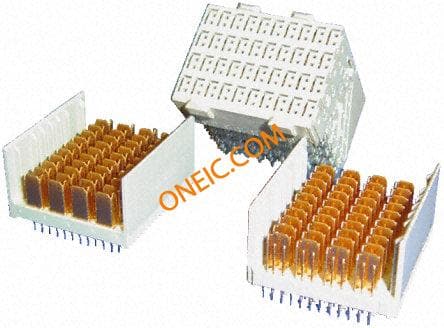

6469001-1
te connectivity / amp
Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 80POS 8ROW RT ANG HM-Z ATCA,daughter connector,PCB Hard Metric Connectors Z-PACK HM-ZD RECPT Conn Advanced TCA RCP 80 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, ATCA, D/CARD HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 80 Position 2.5 mm R/A Receptacle Front Board Z-PACK HM-Zd Signal Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直角 8 排 母 背板连接器, 按式端子, 7A HM-ZD 4PR RECP 80P
1469362-1
te connectivity / amp
Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 80POS 8ROW VERT HM-Z High Speed / Modular Connectors B-PLANE HMZD REC 8X010P VRT Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HM-ZD VERT RECPT ASSY 18MM

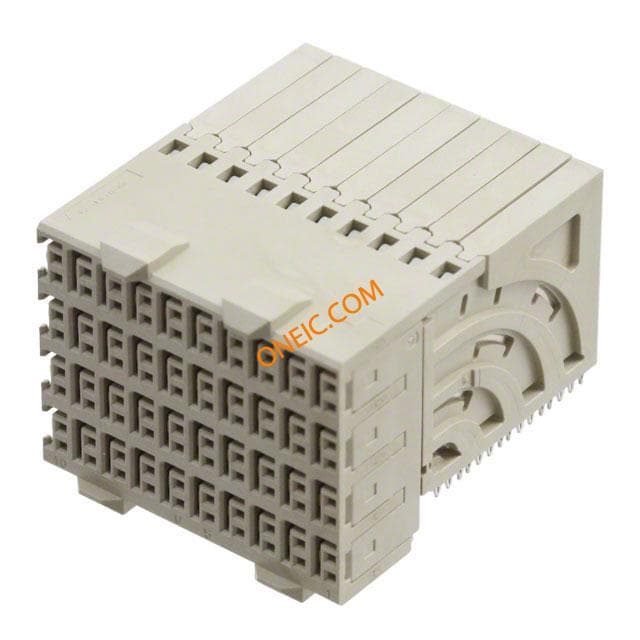

2065657-1
