644807-2
| Manufacturer | |
| Description | Conn IDC Connector M 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 PSTD CONN CE 18AWG 02P MTA156 PSTD CONN CE 18AWG 02P MTA156 PSTD CONN CE 18AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 500 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | Not ELV/RoHS compliant | Material Flammability Rating | UL 94V-2 |
Mechanical
| Color | Orange | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | Yes |
| Wire Type | Discrete or Ribbon Cable | Cable Exit | 90° |
| Wire Gauge | 18 AWG | Termination | IDT |
| Contact Type | Male Pin | 2nd Connector | With |
| Contact Shape | Square | Housing Color | Orange |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 1 | Connector Usage | Plug |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Without |
| Number of Contacts | 2 | Number of Positions | 2 |
| Contact Layout, Typical | 3.96 [0.156] | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - mm2 | 0.8-0.9² [18] | ||
Product Info
| Note | MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15 | Type | IDC Connector |
| Gender | M | Series | MTA-156 |
| Features | Closed End | Manufacturer | AMP |
| Product Type | MTA-156 Posted Wire-to-Wire Connectors | Connection Type | Wire |
Documents & Media
Similar Parts
3-640426-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 18AWG MTA156 MTA 156 2W SKT 18AWG Headers & Wire Housings CLOSED W/O TABS 2P L.R. orange 18 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 18AWG, 2WAY Connector;Receptacle;2;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Plug; wire-board; female; PIN:2; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 2P, 3-640426-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA156 CONN ASSY 18AWG ORA
3-641173-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount CONN RCPT 2POS 18AWG MTA-156
3-640429-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA156 2 way cable mount MTA socket,24 awg Headers & Wire Housings CLOSED W/O TABS 2P L.R. NATURAL 24 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 2WAY Connector;Receptacle;2;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Cable socket, straight 2P, 3-640429-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA156 CONN ASSY 24AWG WHT
3-641148-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 ASY 18AWG ORA LF 02P MTA156 ASSY 18AWG ORA LF 02P MTA156 ASSY 18AWG ORA LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

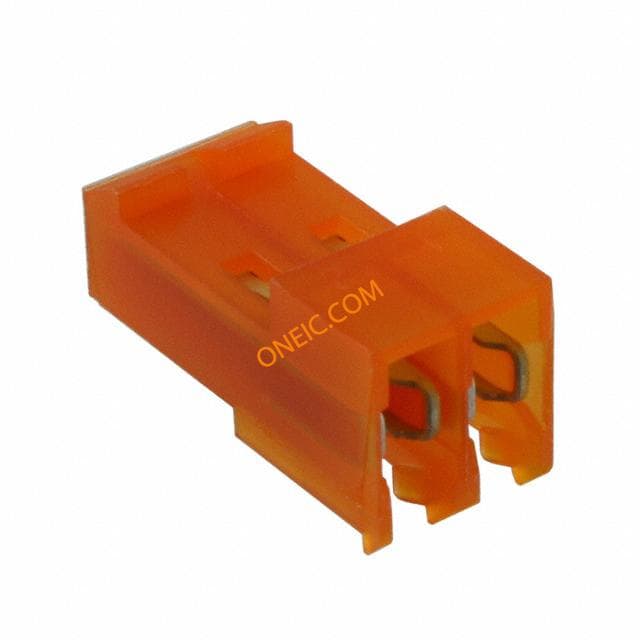

3-641217-2
