643498-3
| Manufacturer | |
| Description | Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 03P MTA100 CONN ASSY 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA 100 CONNECT ASSEM 22AWG 3CIR Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY 22AWG |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | No | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Length | 7.62 | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Body Color | 黑色 | Cable Exit | 90° |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 22 |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Height (Inches) | 6.99 | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 3 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 3 |
| Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 2.54 [0.100] | Surface Mount Land Size | Without |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.3-0.4² [22] | Static Discharge Shielding | 带有 |
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Closed End |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | Receptacles / Sockets - Housings | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
640456-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 3P Straight Post tin Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, THT, VERTICAL, 2.54MM, 3WAY Header,FrictionLock;MTA-100;3;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:3; tinned; 2.54mm Pin header 3P, 640456-3, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY F/L SQ STR
640457-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 3P Right Angle Post tin Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.1", 3WAY Header,FrictionLock;MTA-100;3;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header angled 3P, 640457-3, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY SQ R/A F/L
3-644457-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 3POS .100 TIN Headers & Wire Housings NARROW FLT HDR 3P Right Angle Post Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header3 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY R/A NARROW
644875-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS R/A .100 TIN Headers & Wire Housings 03P MTA100 HDR ASSY F/L SP BND MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:3 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY F/L,SP BND
643961-2
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS STR .100 TIN Headers & Wire Housings 03P MTA100 HDR ASSY W/O#2 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 HDR ASSY W/O#2
3-641216-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 3POS .100 30AU Headers & Wire Housings HDR 03P R/A F-LOCK Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTA-100HEADERGOLD,03PMTA100HDRASSYFL/RALF TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY FL/RA LF
3-641213-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 30AU Header 3 way pin 2.54mm MTA-100 Headers & Wire Housings POLARIZED HEADER 3P Straight Post gold Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM Header3waypin2.54mmMTA-100 TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY PO/ST LF
3-647011-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG .100 GREEN
3-647008-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG .100 RED Headers & Wire Housings 03P MTA100 PSTD CONN ASSY LF 03P MTA100 PSTD CONN ASSY LF

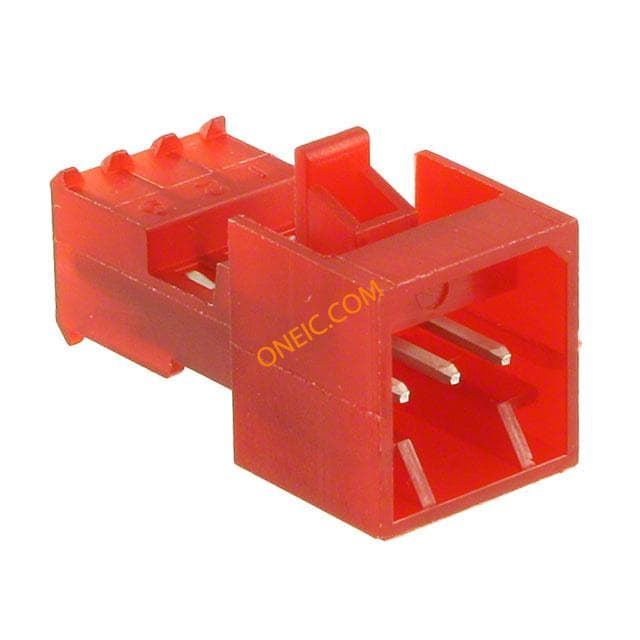

3-647000-3
