3-647003-3
| Manufacturer | |
| Description | Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG .100 GREEN Headers & Wire Housings 03P MTA100 PSTD CONN ASSY LF 03P MTA100 PSTD CONN ASSY LF |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 10.16 mm [ .4 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 28 AWG |
| Termination | IDT | Contact Type | Male Pin |
| 2nd Connector | Without | Housing Color | Green |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | Wire | Number of Rows | 1 |
| Plating - Body | Nickel | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | 250 | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 3 | Termination Finish | 带有 |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 3 |
| Compatible Shell Size | 标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.08-0.09² [28] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | .762 µm, 30 µin |
Product Info
| Note | 2 和 3 位置 MTA-100 柱形连接器（闭合端）无法配合带极化公端的 MTA-100 连接器。 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
3-640623-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 3P green tin 28 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY GRN LF
641537-3
TE Connectivity / AMP
Headers & Wire Housings CLOSED W/O TABS 3P LED green 28 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount

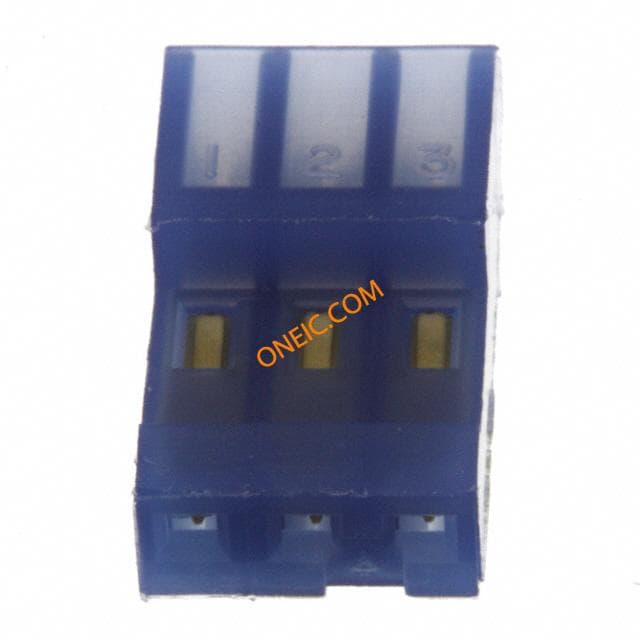

641239-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG BLU MTA-100 Headers & Wire Housings RECEPTACLE 3 POS 641239-3 Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU 30AU

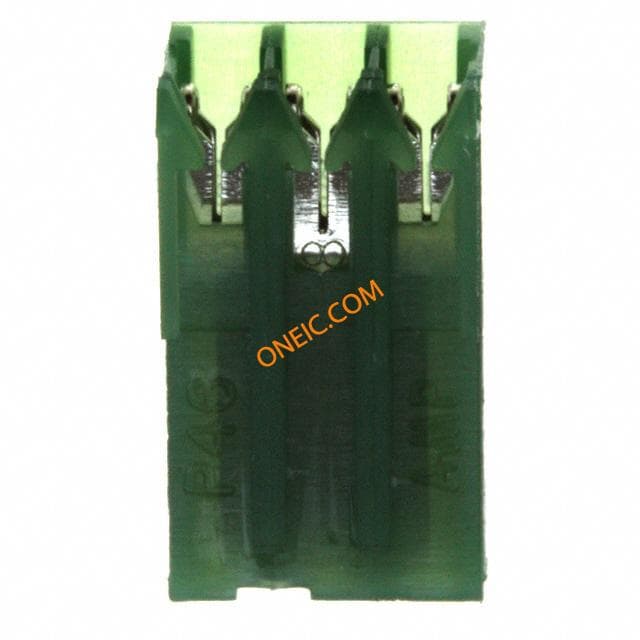

641193-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG GRN MTA-100 Headers & Wire Housings 03P RCPT GRN 15 AU Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY GRN 15AU
3-640622-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 3P blue tin 26 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY F/T BLU
641536-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 3P LED blue 26 AWG Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY 26AWG
641237-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG RED MTA-100 Headers & Wire Housings MTA .100 CONN 22-3
3-640620-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Connector,FeedThru,3,0.100in. Headers & Wire Housings FEED THRU W/O TAB 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM Connector;FeedThru;3;0.100in.;IDCStandard 3 Position Feed Through Wire-to-Board 2.54 mm Centerline Receptacle Connector 03P MTA100 CONN ASSY F/T RED
3-641654-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 24AWG MTA100 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY NATL LF
3-641655-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA100 Headers & Wire Housings 3P ASSY BLU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU LF
641654-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 24AWG MTA100 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY F/T NATL
3-641239-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG BLU MTA-100 Headers & Wire Housings RCPT 3P 26 AWG BLU Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU LF

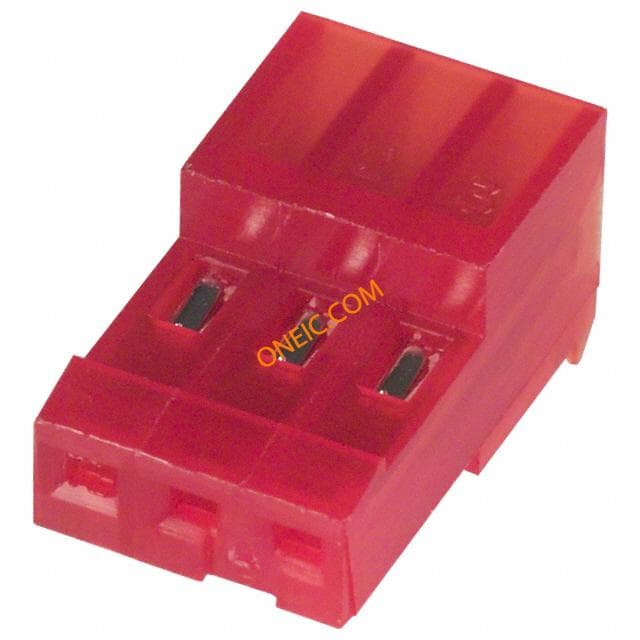

641534-3
te connectivity / amp
CONN WIRE TO BD RCP 3 POS 2.54MM IDT CBL MNT MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 3P LED red 22 AWG 03P MTA100 CONN ASSY 22AWG
3-641535-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 24AWG MTA100 3-641535-3 Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY LF

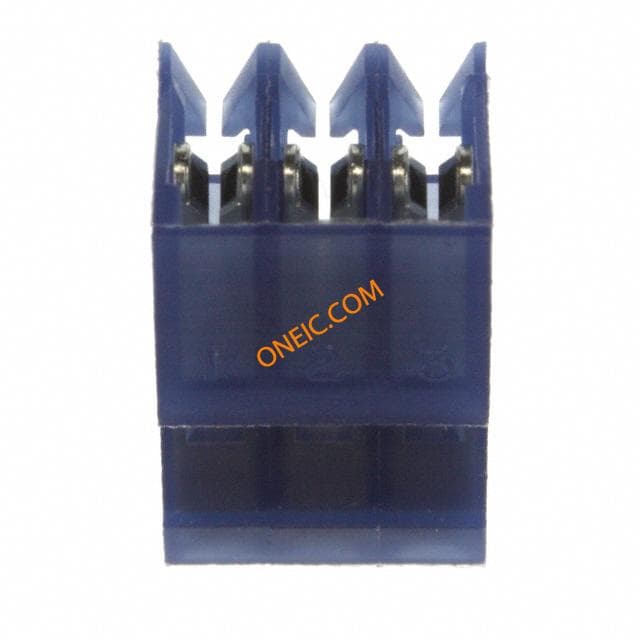

641192-3
