643405-1
| Manufacturer | |
| Description | Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL PIN HDR ASS Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY 05P UMNL PIN HDR ASSY POL NATL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Height | 14.73 mm | Weight | 0.02 |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 5 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 5 | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Power | Gender | HDR |
| Series | :Universal MATE-N-LOK | Features | Board Guide |
| Product Type | Headers | Number of Ports | 1 Port |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
770016-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT

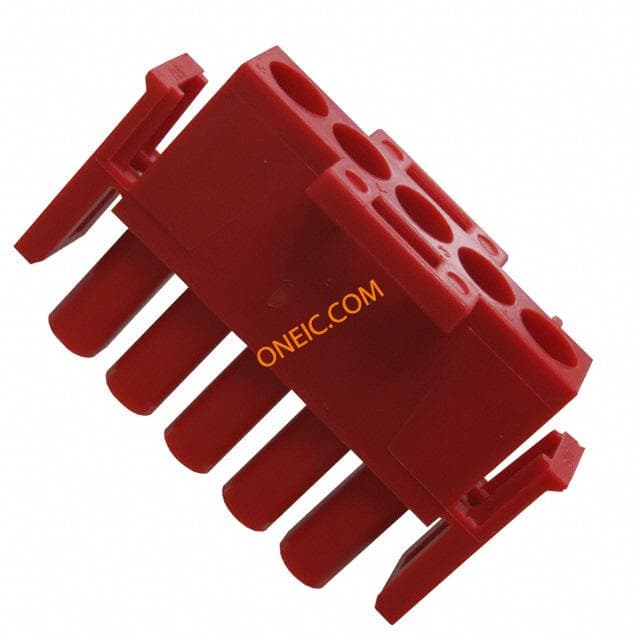

480763-2
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 5POS 94V-2 RED Jones Plugs & Sockets PLUG HOUSE 5 POS RED UL94V-2 Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL PLUG HSG RED

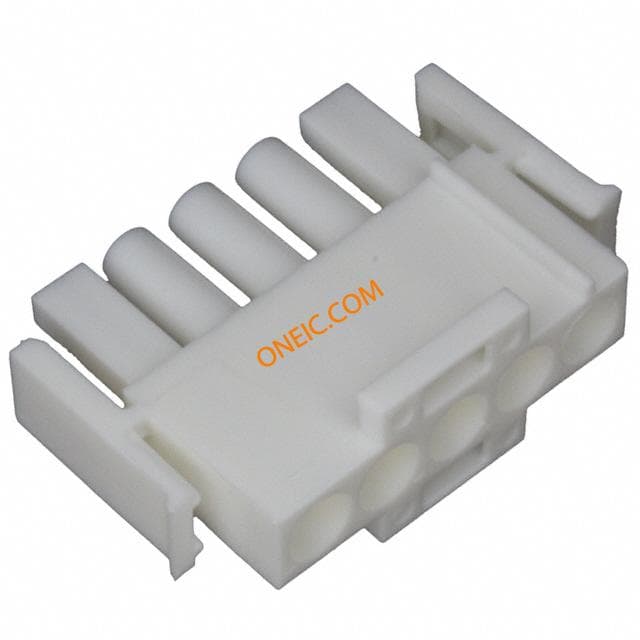

350809-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-0 UNI-MATE 5 way white plug housing Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;White;19A Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350809-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG
1-480763-0
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 5 POS Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:5; 600V Crimp housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480763-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 公 压接连接器外壳 05P UMNL PLUG HSG NATL

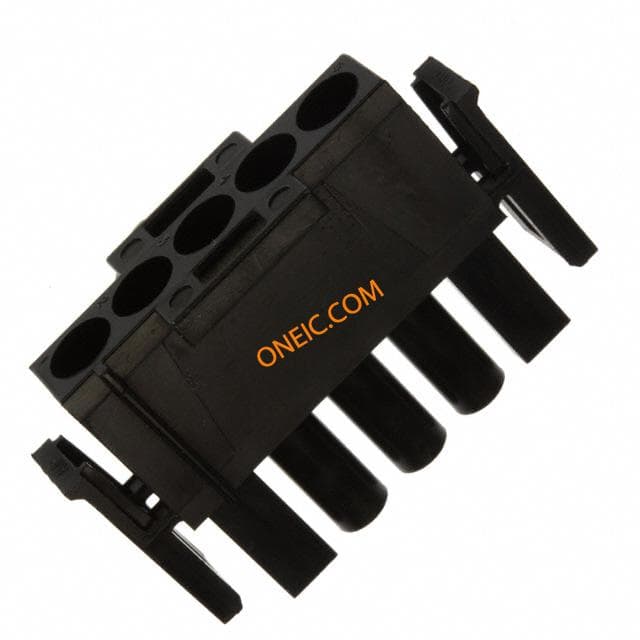

480763-9
