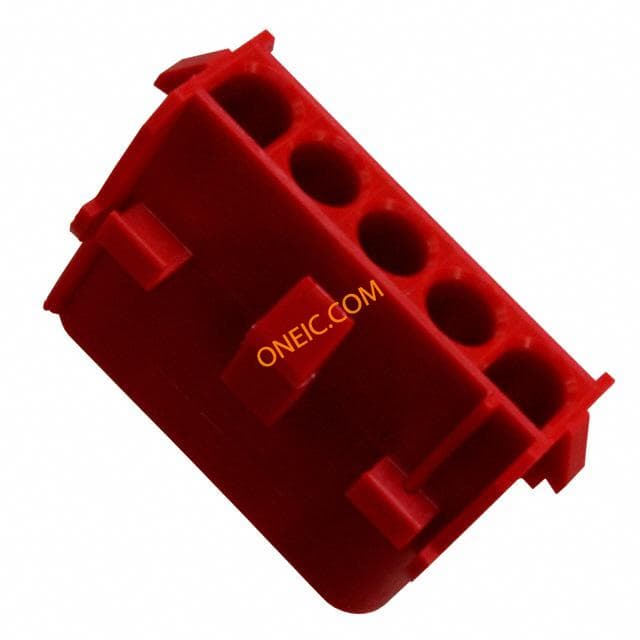

480763-2
| Manufacturer | |
| Description | Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 5POS 94V-2 RED Jones Plugs & Sockets PLUG HOUSE 5 POS RED UL94V-2 Conn Housing PL 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL PLUG HSG RED |
| Category |
Business
| Product Category | Jones Plugs & Sockets | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| CSA Certification | Certified | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 是 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 27.43 mm |
| Pitch | 6.35 mm | Width | 14.73 |
| Height | 14.73 mm | Length | 33.02 mm [ 1.3 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 红色 | Wire Gauge | 10-30 AWG |
| Contact Type | Male or Female | Housing Color | Red |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Number of Rows | 1 | Package / Case | Plug |
| Housing Material | Polyamide (PA) | Package Quantity | 1 |
| Number of Contacts | 5 | Contact Termination | Crimp |
| Number of Positions | 5 | Compatible Shell Size | 通用 MATE-N-LOK 母端或公端 |
| Contact Layout, Typical | 直插式 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55C to 125C |
Documents & Media
Similar Parts

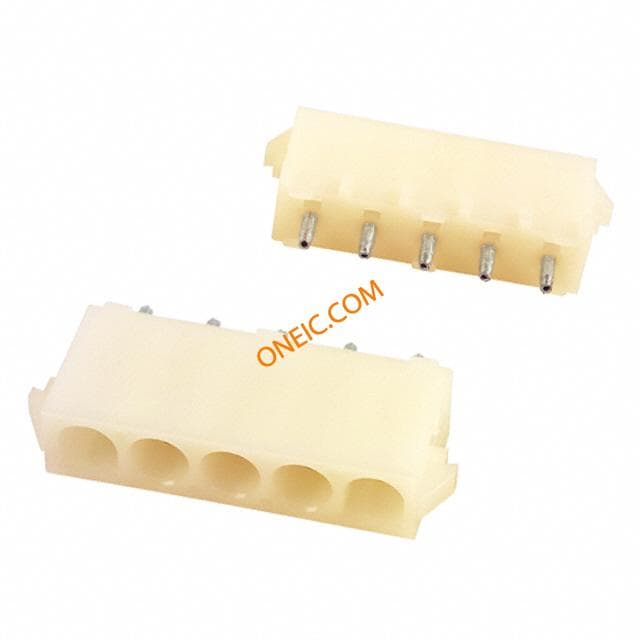

640466-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN MATE-N-LOK 5 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 5 P PCB VERT HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Nylon;Natural;19A;600VAC Pin header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640466-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 直 PCB 针座, 焊接端接, 19A , 通孔 05P UMNL PIN HDR ASSY V2 NATL
643405-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL PIN HDR ASS Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY 05P UMNL PIN HDR ASSY POL NATL
643406-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Power to the Board 5 P VERT. PCB HDR .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,05PUMNLPINHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 05P UMNL PIN HDR ASSY POL 94VO

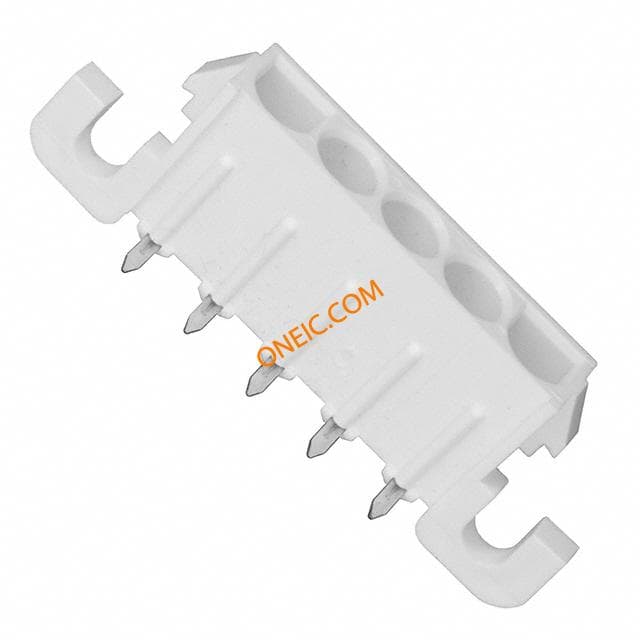

643232-1
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS RTANG .250 TIN Pin & Socket Connectors 5P HDR ASSY R/A 94VO Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A 94VO

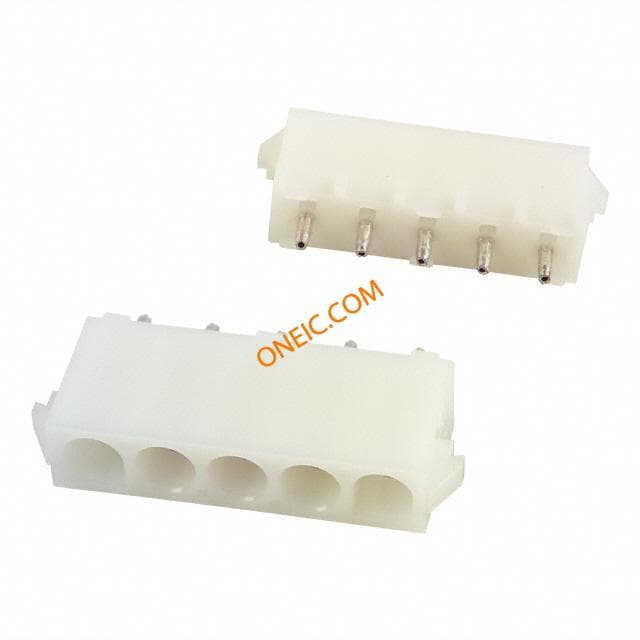

640900-1
te connectivity / amp
Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Headers & Wire Housings 5 P PCB VERT. HEADER Conn Power HDR 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 5WAY UNIVM-N-LHEADER,05PUMNLPINHDRASSY94VO Socket; wire-board; male; 6.35mm; PIN:5; tinned; Pin layout:1x5 sale 05P UMNL PIN HDR ASSY 94VO
1-480764-0
te connectivity / amp
Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 5POS 94V-2 UNI-MATE Housing,receptacle,free hanging,5way Pin & Socket Connectors CAP HOUSE 5 POS Conn Housing RCP 5 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Receptacle(Cap);Nylon;19A Receptacle housing Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 1-480764-0, TE Connectivity 05P UMNL CAP HSG NATL

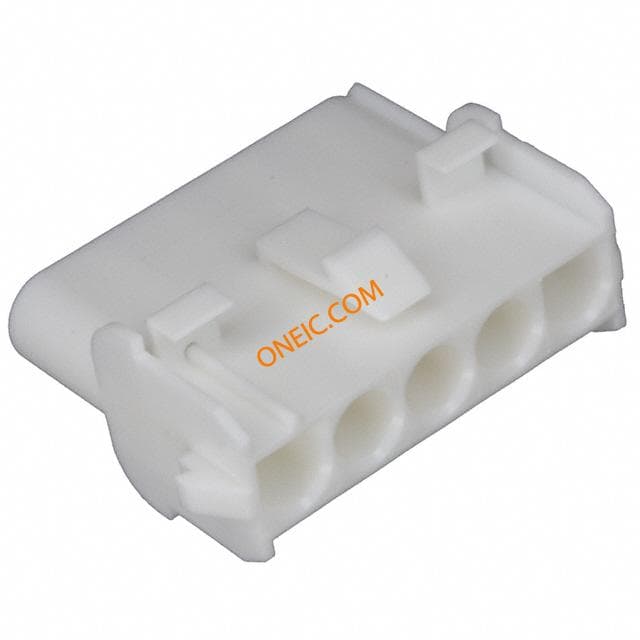

350810-1
te connectivity / amp
Conn Housing RCP 5 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 5POS 94V-0 UNI-MATE 5 way white receptacle housing Pin & Socket Connectors CAP HOUSE 5 POS Conn Housing RCP 5 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 5WAY Connector,SoftShell;UniversalMATE-N-LOK;5;Receptacle(Cap);Nylon;White Plug/socket; wire-wire; male/female; w/o terminals; 6.35mm; PIN:5 Receptacle housing 6.35 mm Poles 5 MATE-N-LOK Universal, 350810-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 5 路 直 母 压接连接器外壳 05P UMNL CAP HSG
640467-1
te connectivity / amp
Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS VERT .250 TIN Power to the Board 05P UMNL HDR ASSY Conn Power SKT 5 POS 6.35mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 5WAY UNIVM-N-LHEADER,05PUMNLHDRASSY Socket header Pitch6.35 mm Poles 5 MATE-N-LOK Universal, 640467-1, TE Connectivity 05P UMNL HDR ASSY
1-350949-0
te connectivity / amp
Conn Wire to Board HDR 5 POS 6.35mm Solder RA Thru-Hole .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 5POS UNIV-MNL R/A Power to the Board HDR ASSY R/A 5P Conn Wire to Board HDR 5 POS 6.35mm Solder RA Thru-Hole Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNL HDR ASSY R/A V2 NATL

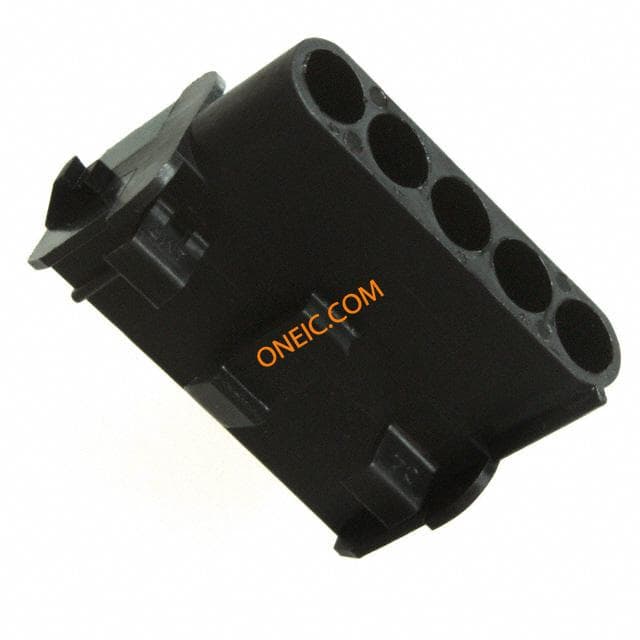

480764-9
