640903-1
| Manufacturer | |
| Description | Quick Disconnect Terminal 18-22AWG F 23.37mm 7.62mm Tin Loose Piece Terminals PIDG RECPT 22-18 AWG red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 18-22AWG .250 Receptacle terminal, PIDG FASTON 250,red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 3.56 [.140] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 6.35MM, RED CRIMP TERMINAL, FEMALE, RED AMP;RECEPTACLE;22-18AWG;DIMPLEW/WIRESTOP;TINPLATEDBRASS Terminal: flat; 6.3mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned PIDG Faston 22-18 AWG Straight Insulation Support Quick Disconnect Receptacle Blade receptacle insulated Faston, 0.3...1 mm², 22...18 AWG, FASTON-250, 640903-1, TE Connectivity TE Connectivity PIDG FASTON .250 系列 红色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 RECEPT,PIDG FASTON 22-18 250 |
| Category |
Business
| Product | Faston Terminals | Product Category | Terminals |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | UL Rating | Approved |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | Yes |
Electrical
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
Mechanical
| Color | Red | Depth | 7.62 mm |
| Width | :6.35mm | Finish | Tin |
| Weight | 1.347 | Plating | Tin |
| Material | Brass | Packaging | Bulk |
| Tab Width | 6.35 x 0.81 [.250 x .032] | Thickness | 0.46 [0.018] |
| Insulation | Insulated | Tab Length | 0.305" (7.75mm) |
| Wire Gauge | 22-18 | Orientation | straight |
| Termination | Crimp | Body Material | Brass |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 0.25 in x 0.032 in |
| Tab Thickness | 0.032" (0.81mm) | Terminal Type | Standard |
| Connector Type | :Female Disconnect | Contact Finish | Tin |
| Mounting Style | for cable | Plating - Body | Tin |
| Connector Style | Straight | Insertion Force | Normal |
| Contact Material | Brass | Ferrule Material | insulated |
| Insulation Color | :Red | Length - Overall | 0.900" (22.86mm) |
| Package Quantity | Loose Piece | Insulation Height | Insulation Support |
| Color - Connectors | :Red | Insulation Diameter | 3.56 [.140] Max. |
| Insulation Material | Nylon | Material - Insulation | No |
| Wire Gauge or Range - AWG | 509 â 1,900 | Wire Gauge or Range - mm2 | 0.30-0.90² [22-18] |
| Contact Material - Plating | tinned | Diameter - Outside, Non-Expanded | :3.56mm |
Product Info
| Spg | 1 | Type | Quick Disconnect Terminal |
| Gender | Female | Series | 250 |
| Texture | Dimple with wire stop | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Proprietary Name | PIDG FASTON |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
696202-1
te connectivity / amp
HAND TOOL, SERVICE Crimpers HAND TOOL UNIVERSAL CRIMP TOOL 10-22AWG Crimp tool Superchamp Universal Crimp Tool 10-22AWG, Service Hand Tool CRIMP TOOL, HAND, OPEN / CLOSED BARREL TERMINALS, CONTACTS, SPLICES Crimper;18-14AWG;Tab-LokFASTONFlagInsulatedTerminals;SUPERCHAMP TE Connectivity SUPER CHAMP 系列 Insulated and Uninsulated Crimp Terminals 压接工具
640903-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG F 23.37mm 7.62mm Tin Loose Piece Terminals PIDG RECPT 22-18 AWG red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 18-22AWG .250 Receptacle terminal, PIDG FASTON 250,red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 3.56 [.140] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 6.35MM, RED CRIMP TERMINAL, FEMALE, RED AMP;RECEPTACLE;22-18AWG;DIMPLEW/WIRESTOP;TINPLATEDBRASS Terminal: flat; 6.3mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned PIDG Faston 22-18 AWG Straight Insulation Support Quick Disconnect Receptacle Blade receptacle insulated Faston, 0.3...1 mm², 22...18 AWG, FASTON-250, 640903-1, TE Connectivity TE Connectivity PIDG FASTON .250 系列 红色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 RECEPT,PIDG FASTON 22-18 250
DNF18-250-C
panduit
Quick Disconnect Terminal 18-22AWG F 20.57mm 17.37mm Tin Terminals USE 644-DNF18-250-M DISC FEMALE NYLON 22-18 AWG .25" DISC; NYLON; BARREL INSUL. TERMINAL, FEMALE DISCONNECT, 0.25IN, RED DISC,NYLON,BARRELINSUL. Female Disconnect, Nylon Barrel Insulated, 22, 18 AWG, .250 x .032 Tab Size, Funnel Entry, Pack of 100
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59826-1
te connectivity / amp
TETRA-CRIMP DIE 22-18 Crimpers TETRA-CRIMP DIE 22-1 TOOL TETRA-CRIMP DIE 22-18AWG Application Tooling Lead Free Solder Processes
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
69151-1
te connectivity / amp

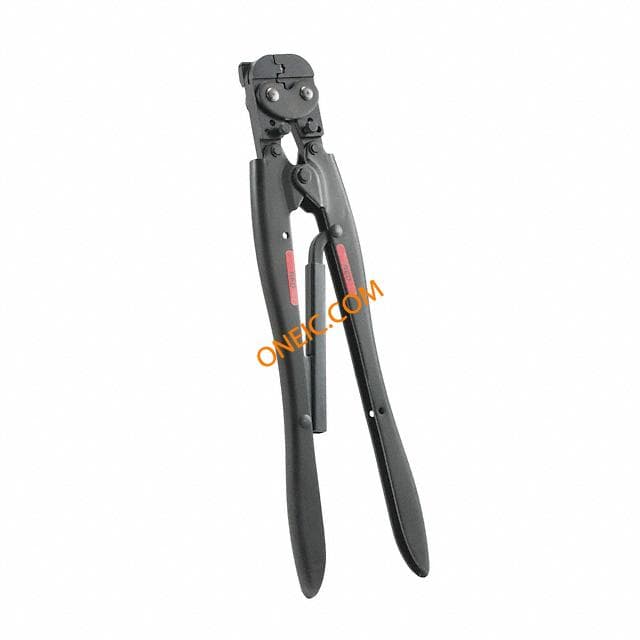

DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
