640716-1
| Manufacturer | |
| Description | 09P UMNL STR/REL & INSRT Connector Accessories Strain Relief 9 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 9POS Mate-N-Lok cable-clamp housing 9W Pin & Socket Connectors STRN RLF 9P MATRIX QTY 2 REQD FOR SET Connector Accessories Strain Relief 9 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 9Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 9WAY STRAIN RELIEF, 9WAY, NYLON Connector;SoftShell;9;UniversalMATE-N-LOKII;Nylon;Matrix;AMPBrand Cabel hood and fastener; Universal MATE-N-LOK; without screws Strain relief shell, 640716-1, TE Connectivity TE Connectivity 640716 9路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Number of Outputs | 9 | Connector - Voltage Input | Universal MATE-N-LOK II |
Mechanical
| Color | White | Depth | 33.02 mm |
| Width | :26mm | Height | 14.73 mm |
| Length | :33mm | Weight | 4.54 |
| Material | :Nylon | Pitch - Post | 6.35mm |
| Wire Diameter | 3.05 â 16.51 [0.120 â 0.650] | Connector Type | SoftShell |
| Mounting Style | Panel | Size, Supplied | Yes |
| Connector Usage | cabel hood and fastener | Housing Material | Nylon |
| Length - Overall | 26.16 mm | Package Quantity | 1 |
| Primary Material | Interconnect | Termination Style | Screw |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :White |
| Number of Contacts | 9 | Number of Positions | 9 |
| Material - Insulation | :Nylon (Polyamide) | Contact Layout, Typical | Matrix |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Feature | 3x3 |
| Diameter - Outside, Non-Expanded | :16.51mm | ||
Product Info
| Spg | 1 | Note | Strain relief part number represents one half of a strain relief. Two of a part |
| Type | Strain Relief | Style | :#6 x 16 mm Lg Type B Pan head sheet metal screw |
| Series | Universal Mate-N-Lok | Manufacturer | MATE-N-LOK |
| Product Type | Strain Relief | Accessory Type | Strain Relief |
| Adapter Series | Universal MATE-N-LOK | Number of Units | 2 |
| Number of Circuits | 9 | RF Family/Standard | 640716 |
| Leaded Process Compatible | :Yes | For Use With/Related Products | Universal MATE-N-LOK II Series |
Documents & Media
Similar Parts
770054-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 9POS UNIV-MNL II Pin & Socket Connectors 09P CAP REAR 94VO Conn Housing RCP 9 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL II CAP REAR 94VO

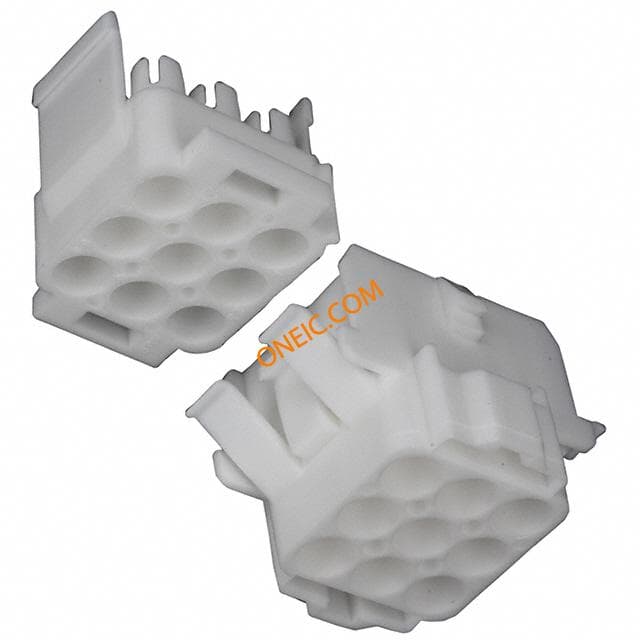

770028-1
