770021-1
| Manufacturer | |
| Description | Conn Housing PL 9 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 9POS UMNL-II (2PC) Pin & Socket Connectors 9 MATRIX PLUG Conn Housing PL 9 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;9;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 9 MATE-N-LOK Universal, 770021-1, TE Connectivity 09P UMNLII IN-LNE PLUG HSG KIT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| UL Rating | 获得认可 | Part Status | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 是 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 5000 | Voltage Rating | 600 V |
| Number of Poles | 9 | Voltage - Supply | 600 |
| Current Rating (Max) | 31 A | Insulation Resistance | 1000 MOhm |
| Voltage - Input (Min) | 600VAC | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Depth | 22.99 mm |
| Pitch | 6.35 mm | Width | 20.32 |
| Length | 22.99 | Sealed | Not Sealed |
| Packaging | Bulk | Body Color | 白色 |
| Wire Gauge | 10-30 AWG | Row Spacing | 0.250" (6.35mm) |
| Weight (g): | 2.3 | Contact Type | Male or Female |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Number of Rows | 3 |
| Package / Case | Plug | Housing Material | Nylon |
| Package Quantity | 1 | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| 1st Connector Gender | Male / Female | Compatible Shell Size | 通用 MATE-N-LOK 连接器 |
| Contact Layout, Typical | 矩阵 | ||
Product Info
| Name | 塑壳 | Note | Contacts Not Provided |
| Type | Housing | Unit | PCS |
| Gender | PL | Series | MATE-N-LOK Universal |
| Quantity | 250.0 | Product Type | Plug Housings |
| Connection Method | Wire-Board | Manufacturing Country | 墨西哥 |
| Assembly Configuration | Without | Equipment Part Numbers | 770021-1.pdf |
| Minimum Order Quantity | 1 | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55C to 120C |
Documents & Media
Similar Parts
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
641972-1
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Pin & Socket Connectors 9P PIN HEADER Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 9POS, 6.35MM UNIVM-N-LHEADER,09PUMNLPINHDRASSY94VO 09P UMNL PIN HDR ASSY 94VO
641971-1
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
641972-2
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 AU Power to the Board PIN HDR 9P UL94V-0 Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350990-4
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Pin & Socket Connectors 9P HEADER ASSEMBLY Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONN HEADER 9POS 09P UMNL HDR ASSY LNG/TL
350835-1
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board PCB SOCKET HDR 9P .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO
641972-3
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P PIN HDR ASSY 94V0 Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 9WAY 09P UMNL PIN HDR ASSY 94VO LF
643425-1
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9P UMNL HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONN HEADER 9POS 09P UMNL HDR ASSY POL
350586-2
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 AU Power to the Board 9P HDR ASSEMBLY 100 09P UMNL HDR ASSY PC NATL 09P UMNL HDR ASSY PC NATL Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350586-4
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P HDR ASSY PC NATL 09P UMNL HDR ASSY PC NATL LF
350432-4
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD MATE-N-LOK 9 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors HDR PIN 3X03C VRT V2 Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;9;Nylon;Natural;19A;600VAC TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 9路 直 PCB 针座, 焊接端接, 19A , 通孔 09P UMNL PIN HDR ASSY NATL LF

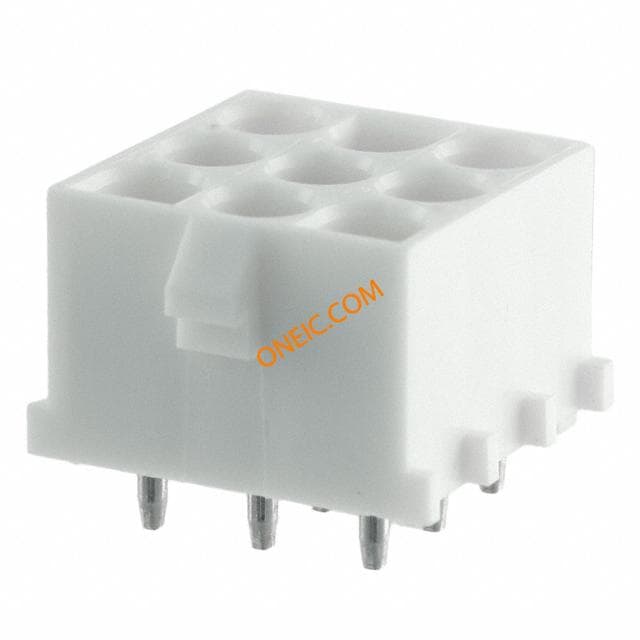

350828-4
