640442-2
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 2P blue tin 26 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,02PMTA100CONNASSYBLU MTA Series MT-6 and SL Connectors and Headers 02P MTA100 CONN ASSY BLU |
| Category |
Business
| Other Names | A19030 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 5000 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Ramp Lock |
| Voltage - Supply | 250 | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Blue | Depth | 6.99 mm |
| Pitch | 2.54 mm | Height | 13.21 mm |
| Length | 5.08 mm [ .2 in ] | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Body Color | 白色 | Cable Exit | 90° |
| Cable Type | Discrete or Ribbon Cable | Wire Gauge | 26 AWG |
| Termination | IDT | Contact Form | Female Socket |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | Blue | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Closed End | Contact Finish | Tin-Lead Over Nickel |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Length - Overall | 5.08 mm |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 2 | Termination Finish | 带有 |
| Contact Termination | Locking Lance | Insulation Diameter | 1.52 mm [ .06 in ] |
| Number of Positions | 2 | Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 2.54 [0.100] | Surface Mount Land Size | Without |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.12-0.15² [26] | Static Discharge Shielding | 带有 |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Main Purpose | Closed End | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Output Configuration | Free Hanging (In-Line) | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
640454-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 2P Straight Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 2WAY Header,Polarized;MTA-100;2;250VAC;Polyester;Tin;CopperAlloy;0.100in. Connector: wire-board; Series: MTA-100; male; socket; tinned; PIN:2 Pin header 2P, 640454-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 HDR ASSY SQ STR POL
2-644486-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Straight Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,02PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 02P MTA100 SHRDED HDR ASSY SN
2-644488-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN Headers & Wire Housings SHROUDED HEADER 2P Right Angle Post tin Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 SHRD HDR F/L R/A SN
3-644456-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .100 TIN Header 2 way pin 2.54mm MTA-100 Headers & Wire Housings NARROW FLT HDR 2P Straight Post Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 2WAY, 0.1IN HEADERASSEMBLY,NARROW,MTA-100,2POSITION,STRAIGHT TE Connectivity MTA-100 系列 2路 2.54mm节距 (1排) 直 引脚管座 , 焊接端接, 5A, 通孔 02P MTA100 HDR ASSY (NARROW)
640455-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .100 TIN Header right angle 2 way Pin MTA-100 Headers & Wire Housings POLARIZED HEADER 2P Right Angle Post tin Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM MTA-100HEADER-TIN,02PMTA100HDRASSYSQR/APOL TE Connectivity MTA-100 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 02P MTA100 HDR ASSY SQ R/A POL
644877-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEAD 2POS R/A TIN Headers & Wire Housings 02P MTA100 HDR ASSY POL RET BND 02P MTA100 HDR ASY POL,RET BND 02P MTA100 HDR ASY POL,RET BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641122-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 02P MTA100 HDR ASSY PL SQ STR MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS STR .100 15GOLD
3-647011-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN
3-647008-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG .100 RED Headers & Wire Housings 02P MTA100 PSTD CONN ASSY LF 02P MTA100 PSTD CONN ASSY LF

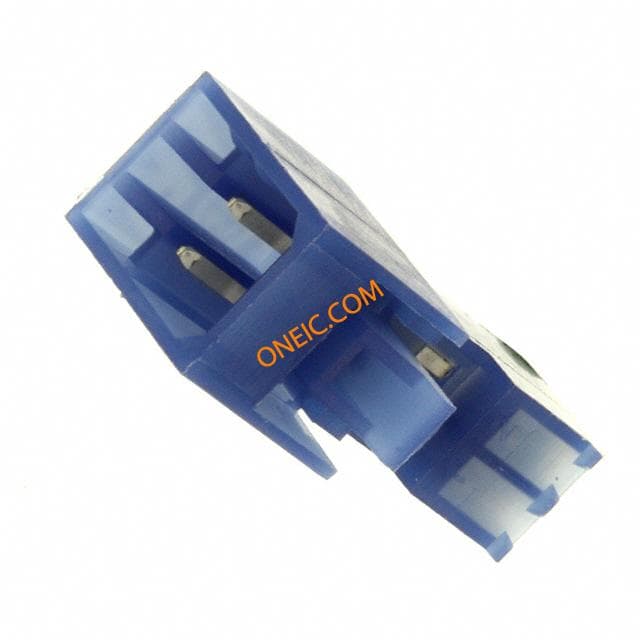

3-647002-2
