3-647003-2
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 28AWG .100 GREEN Headers & Wire Housings 02P MTA100 PSTD CONN ASSY LF 02P MTA100 PSTD CONN ASSY LF |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 7.62 mm [ .3 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 28 AWG |
| Termination | IDT | Contact Type | Male Pin |
| 2nd Connector | Without | Housing Color | Green |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | Wire | Number of Rows | 1 |
| Plating - Body | Nickel | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | 300 | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 2 | Termination Finish | 带有 |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 2 |
| Compatible Shell Size | 标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.08-0.09² [28] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | .762 µm, 30 µin |
Product Info
| Note | 2 和 3 位置 MTA-100 柱形连接器（闭合端）无法配合带极化公端的 MTA-100 连接器。 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
3-640622-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 2P blue tin 26 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02CIR MTA100 FD THR ASSY BLUE
640441-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 2P white tin 24 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,02PMTA100CONNASSYWHT 02P MTA100 CONN ASSY WHT
640468-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG RED MTA-100 Headers & Wire Housings 02P MTA100 CONN ASSY ON TAPE MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY ON TAPE
641654-2
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA100 Headers & Wire Housings FEED THRU WO TAB 2P LED white 24 AWG Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY F/T NATL
640440-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 22AWG MTA100 MTA-100CONNECTORTIN,02PMTA100CONNASSY Headers & Wire Housings CLOSED W/O TABS 2P red tin 22 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM MTA-100CONNECTORTIN,02PMTA100CONNASSY22AWGRED 02P MTA100 CONN ASSY 22AWG RED
3-640442-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA100 2 way MTA cable mount skt,2.54mm 26awg Headers & Wire Housings CLOSED W/O TABS 2P blue tin 26 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP RECEPTACLE, IDC, 2.54MM, 26AWG, 2WAY Connector;ClosedEnd;2;0.100in.;26AWG;AMP Connector: wire-board; Series: MTA-100; female; plug; tinned; PIN:2 Cable socket, straight 2P, 3-640442-2, TE Connectivity TE Connectivity MTA-100 系列 2路 2.54mm节距 直角 电缆安装 母 IDC 连接器 02P MTA100 CONN ASSY BLU
640470-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 26AWG MTA-100 Headers & Wire Housings IDC CLOSED RECPT 2P 14800 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY ON TAPE
641655-2
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Loose Piece Headers & Wire Housings FEED THRU WO TAB 2P LED blue 26 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA100
640621-2
te connectivity / amp
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 24AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 2P white tin 24 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY F/T NATL

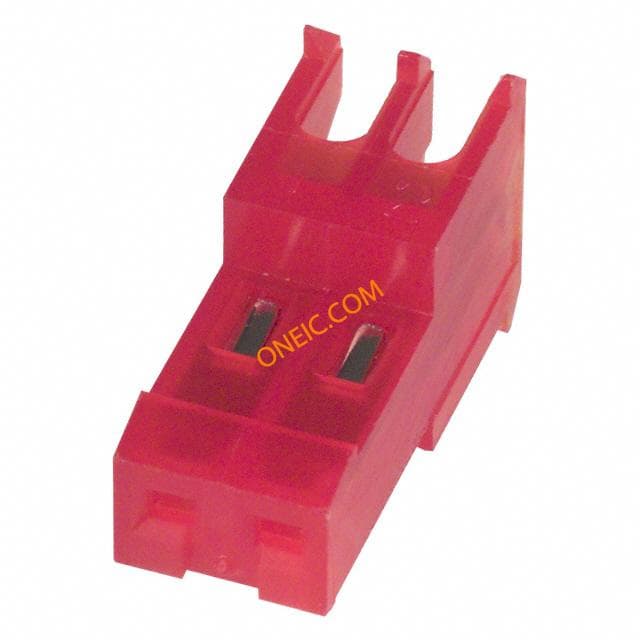

640620-2
