点击放大查看
640440-4
| Manufacturer | |
| Description | Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 22AWG MTA100 MTA-100CONNECTORTIN,04PMTA100CONNASSY Headers & Wire Housings CLOSED W/O TABS 4P red tin 22 AWG Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,04PMTA100CONNASSY22AWGRED 04P MTA100 CONN ASSY 22AWG RED |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Ramp Lock |
| Voltage - Supply | 250 | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Red | Depth | 6.99 mm |
| Pitch | 2.54 mm | Height | 13.21 mm |
| Length | 10.16 mm [ .4 in ] | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Body Color | 红色 | Cable Exit | 90° |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 22 AWG |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Shell Material | 标准 |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Length - Overall | 10.16 mm | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 4 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 4 |
| Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡铅 | Contact Layout, Typical | 2.54 [0.100] |
| Surface Mount Land Size | Without | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.3-0.4² [22] |
| Static Discharge Shielding | 带有 | ||
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
2-644486-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings SHROUDED HEADER 4P Straight Post tin Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,04PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 SHRDED HDR ASSY SN
3-641213-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 30AU Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYPO/STLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASSY PO/ST LF
641214-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 4POS 30AU
3-644694-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .100 TIN Headers & Wire Housings 4P R/A HDR RETENTIVE Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 R/A HDR RETENTIVE

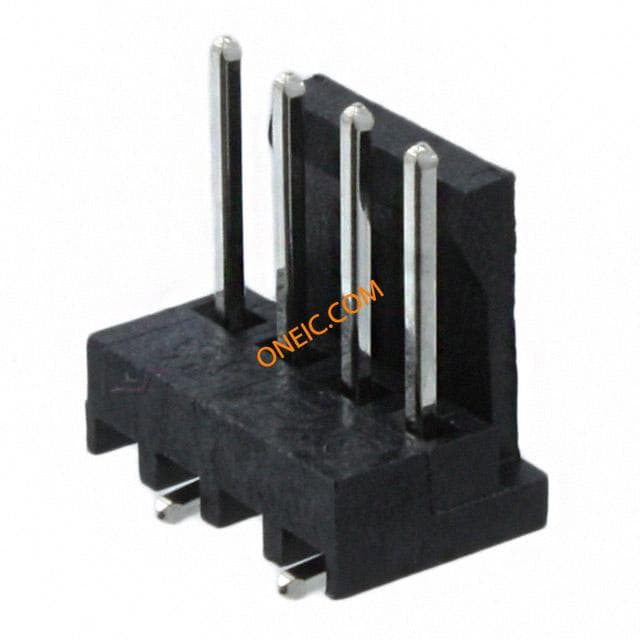

3-647166-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 4POS VERT .100 TIN Conn Wire to Board HDR 4 POS 2.54mm Solder ST SMD Product Highlights:Connector4 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 4P MTA100 HDR ASSY,SM,FL,LF
3-641126-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 04P VRT F-LOCK MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASYFL/STRLF TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 HDR ASY FL/STR LF
3-647003-4
te connectivity / amp
Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 28AWG .100 GREEN Headers & Wire Housings 04P MTA100 PSTD CONN ASSY LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 PSTD CONN ASSY LF
641215-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings FRICTION LCK HDR 4P Straight Post gold Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADERGOLD,04PMTA100HDRASSYFL/ST30AU 04P MTA100 HDR ASSY FL/ST 30AU
647116-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 GOLD Headers & Wire Housings 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU 04P MTA100 HDR HT FL STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647051-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Tube MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .100 TIN
3-647050-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .100 TIN Headers & Wire Housings HDR 02P VRT F-LOCK HTMP Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 HDR ASSY F/L HITEMP
3-647009-4
te connectivity / amp
Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE
3-644695-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings NARROW FLT HDR 4P Strt Post w/ret. leg Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header4 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 STR HDR RETENTIVE
644694-4
TE Connectivity / AMP
Headers & Wire Housings NARROW FLT HDR 4P R.A. Post w/ret. Leg CONN HEADER RTANG 4POS .100 TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644486-4
TE Connectivity / AMP
ヘッダ & ワイヤハウジング SHROUDED HEADER 4P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 4POS TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

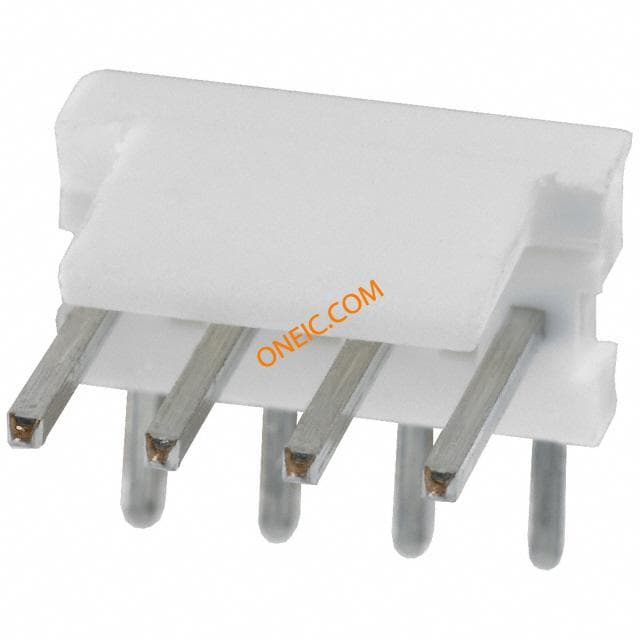

640455-4
