3-647002-4
| Manufacturer | |
| Description | Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 26AWG MTA-100 4w IDC posted connector closed end Headers & Wire Housings 04P PSTD RCPT ASSY 4wIDCpostedconnectorclosedend Cable plug, straight 4P, 3-647002-4, TE Connectivity TE Connectivity MTA-100 系列 4路 2.54mm节距 母 IDC 连接器 , 电缆安装 04P MTA100 PSTD CONN ASSY LF |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V ac | Number of Poles | 4 |
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | IDC | Current Rating (Max) | 5A |
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 12.7 mm [ .5 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 10.85 |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 26 AWG |
| Orientation | 直 | Termination | IDT |
| Contact Type | Male Pin | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Closed End | Contact Finish | Tin |
| Contact Timing | Without | Mounting Style | Wire |
| Number of Rows | 1 | Plating - Body | Nickel |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | 200 |
| Panel Mount Type | Without | Primary Material | IndustrialRectangular |
| Termination Rows | IDC | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 4 |
| Termination Finish | 带有 | Insulation Diameter | 1.52 mm [ .06 in ] |
| Number of Positions | 4 | 1st Connector Gender | Male |
| Compatible Shell Size | 标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.12-0.15² [26] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | .762 µm, 30 µin |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Amplifier Type | 12.70 | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | +105°C | ||
Similar Parts

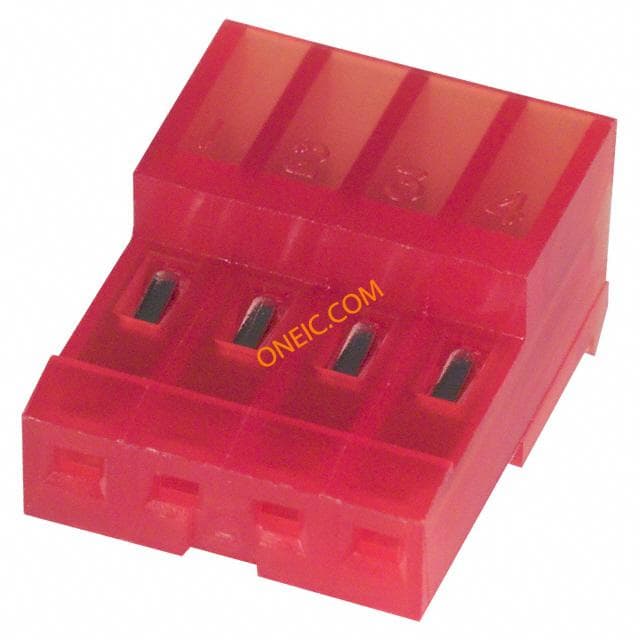

640440-4
