点击放大查看
640387-8
| Manufacturer | |
| Description | Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY SQ R/A R/B |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Switch Function | Friction Lock |
| Voltage - Supply | 600 | Contact Resistance | 3 mohm |
| Current Rating (Max) | 7 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 17.32 mm |
| Pitch | 3.96 mm | Height | 7.62 mm |
| Length | 31.7 mm [ 1.248 in ] | Sealed | Not Sealed |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Pins | 8 | Number of Rows | 1 |
| Package / Case | Plug | Plating - Body | Nickel |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 31.7 mm |
| Package Quantity | 500 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Number of Positions | 8 |
| Compatible Shell Size | MTA .156 连接器组件或 SL .156 连接器组件 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 直插式 |
| Contact Length - Mating | 0.400" (10.16mm) | Termination Post Length | 3.18 mm |
| Contact Finish Thickness | 100 µm [ 2.54 µin ] | Static Discharge Shielding | 不带 |
| Actuator Length, Right Angle | Rear | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-156 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55C to 105C |
| Thermal Resistance of Package | 1.6 mm [ .063 in ] | ||
Documents & Media
Similar Parts

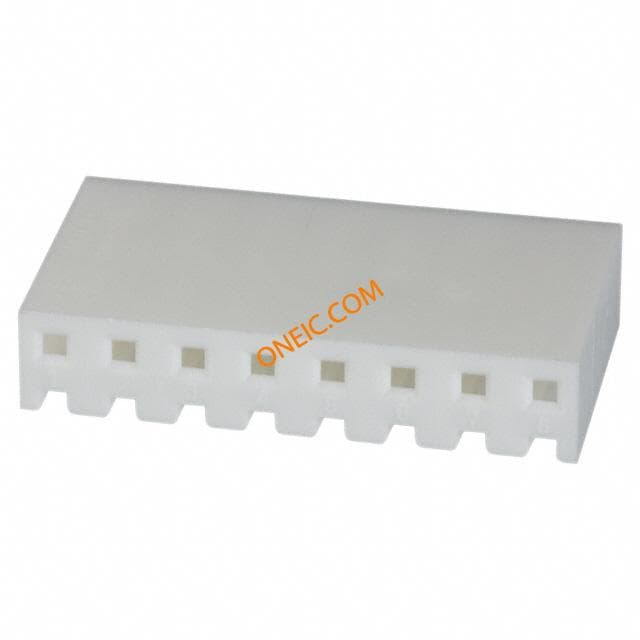

640251-8
