640251-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 8POS W/O RAMP SL-156 Headers & Wire Housings 08P SL156 HSG W/O LC Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;8;Crimp;180deg;Nylon;SL-156Housings;0.156in. SL-156 8 Position Crimp Free Hanging Receptacle Housing 08P SL156 HSG W/O LCK RAMP |
| Category |
Business
| Other Names | A19976 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| UL Rating | 已获认证 | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | Approval Agency | CSA,UL |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | Unlatched | Voltage - Supply | 250 VAC |
| Connector Impedance | 压接 | Current Rating (Max) | 6.5 |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 18-24 AWG | Row Spacing | 0.156in. |
| Termination | Crimp | Contact Form | Female Socket |
| Contact Type | Female Socket | 2nd Connector | Without |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Height (Inches) | 6.35 | Housing Material | Nylon |
| Length - Overall | 1.246" | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Primary Material | WiretoBoard | Wire Termination | Crimp |
| Pin Hole Diameter | 0.156" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 8 | Termination Finish | 不带 |
| Contact Termination | Crimp | Insulation Diameter | Standard |
| Number of Positions | 8 | Compatible Shell Size | SL .156 端子 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 3.96 [0.156] |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | SL-156 Housings | Output Configuration | Free Hanging (In-Line) |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts

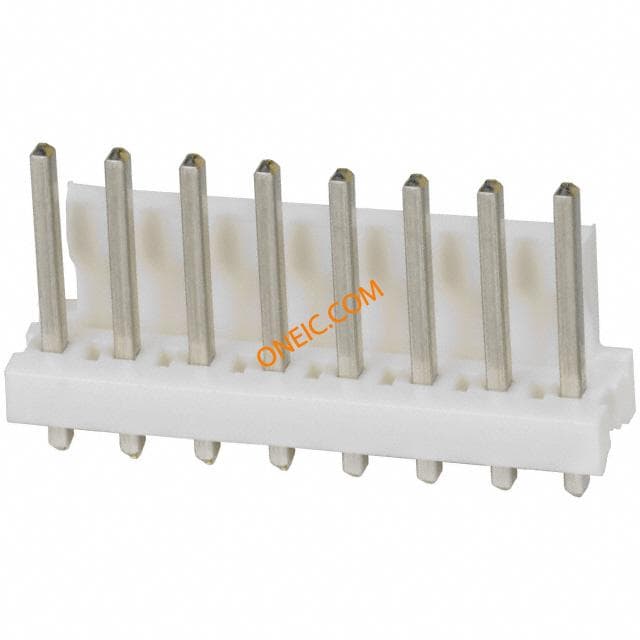

640445-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 8WAY Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White Pin header straight 8P, 640445-8, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 08P MTA156 HDR ASSY FL/STR SN
641207-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .156 30GOLD Headers & Wire Housings 08P MTA156 HDR ASSY FL RA 30AU 08P MTA156 HDR ASSY FL RA 30AU 08P MTA156 HDR ASSY FL RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

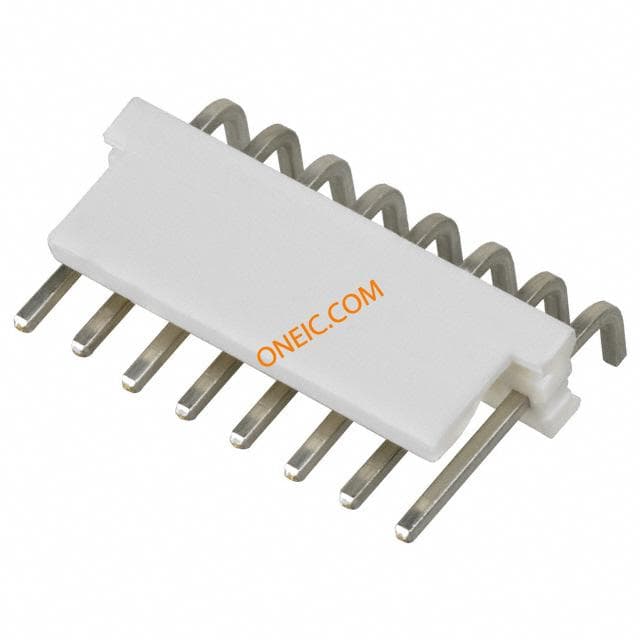

640389-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White 08P MTA156 HDR ASSY SQ R/A F/L

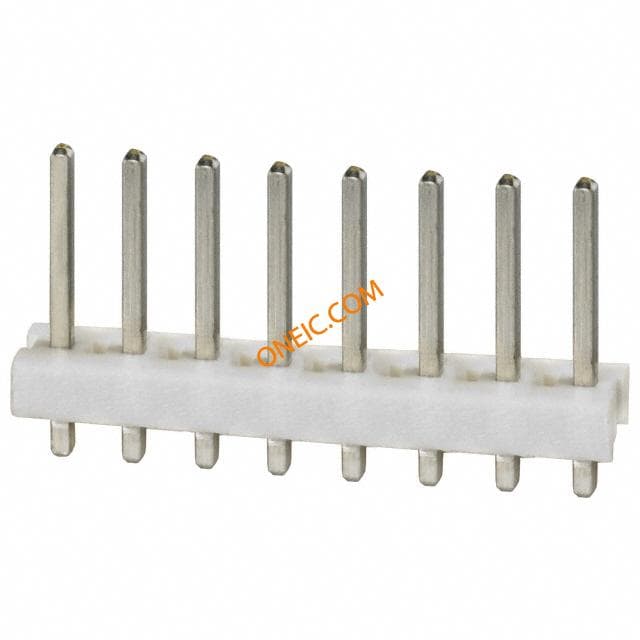

640383-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 8P Square post tin Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN

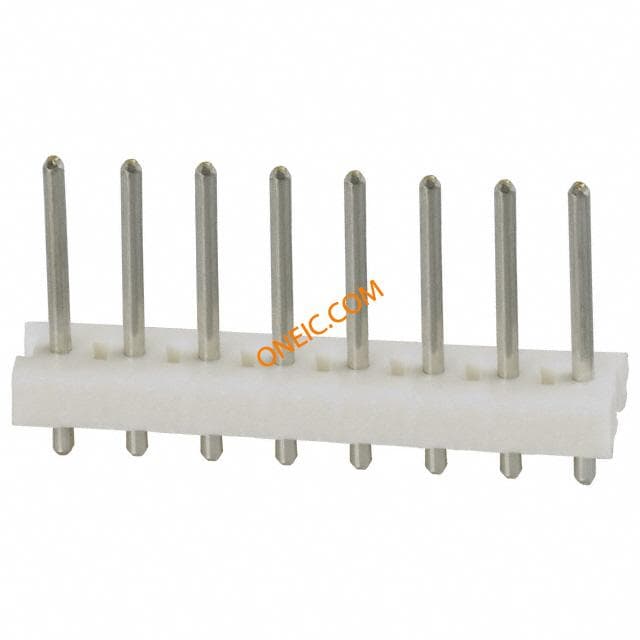

640384-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 8P Round post tin Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector8 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR RND SN
644752-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings 08P MTA156 HDR ASSY Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY SQ STR F/L
641208-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 8POS 30AU Headers & Wire Housings FRCTN LK HDR STR 8P Square post gold Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY FL ST 30AU
3-641210-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 8POS 30AU Headers & Wire Housings FRCTN LK HDR RA 8P Square post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR FLRA FB 30AU LF

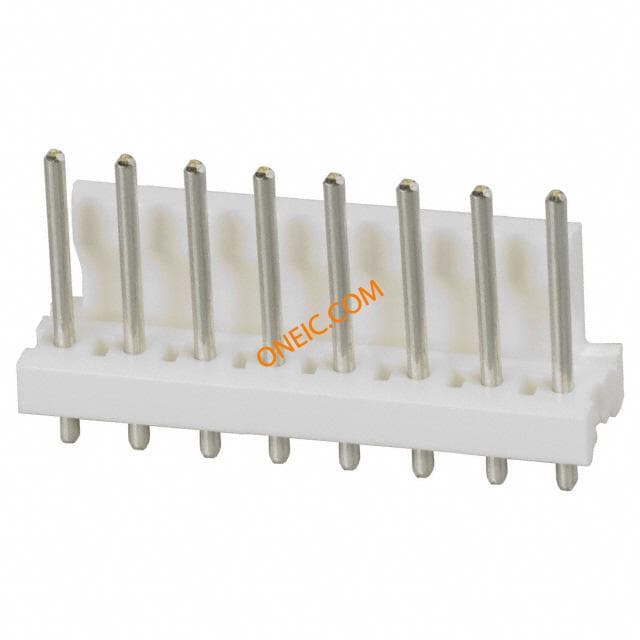

640388-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, PLUG, 8WAY Connector,MTA-156;Male;8;CopperAlloy;7;600;0.156in.;Polyester;White 08P MTA156 HDR ASSY RN STR F/L

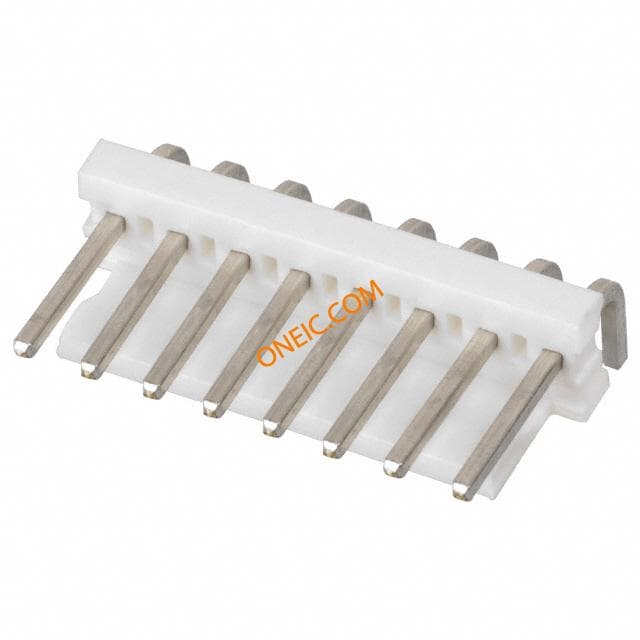

640387-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 8P Square post tin Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY SQ R/A R/B
644751-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 3.96mm Solder RA Thru-Hole Headers & Wire Housings 08P HDR ASSY R/A MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .156 TIN 08P MTA156 HDR ASSY R/A 08P MTA156 HDR ASSY R/A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644753-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .156 TIN Headers & Wire Housings 08P MTA156 HDR ASSY Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY RN STR F/L

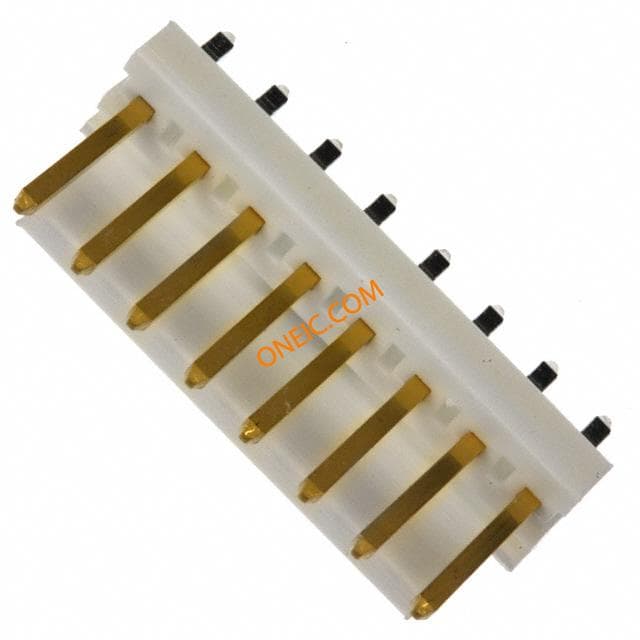

644766-8
