552273-1
| Manufacturer | |
| Description | ASSY, RCPT, 24 POS, B SLOT CONN CHAMP RCPT 24POS .085 IDC Headers & Wire Housings ASSY RCPT 24 POS B SLOT |
| Category |
Business
| Standard Pack | 100 | Standard Package | 400 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Termination | IDC | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Hollow, Unthreaded | Number of Rows | 2 |
| Connector Style | Outer Shroud Contacts | Number of Positions | 24 |
| Contact Finish Thickness | Flash | ||
Product Info
| Features | Latch Lock | ||
Documents & Media
Similar Parts
552443-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG SCREW LOCK Headers & Wire Housings PLUG 24P SCREW LOCK 26-28 AWG stranded Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector24 PositionsPlugSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

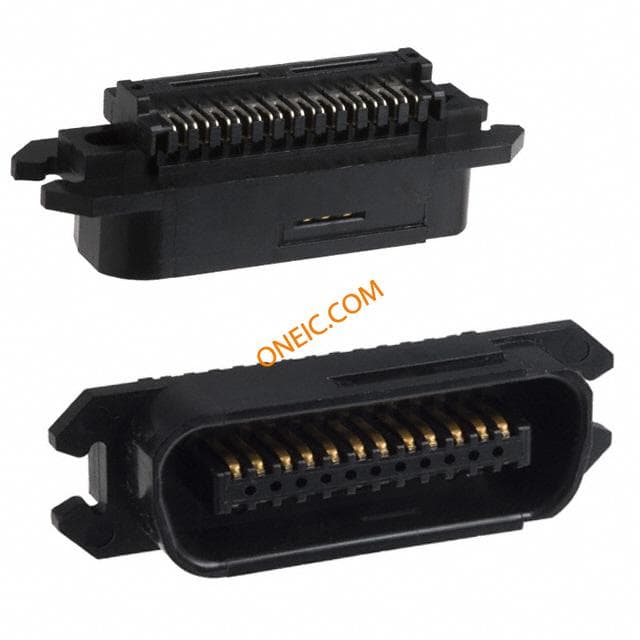

552469-1
