552032-1
| Manufacturer | |
| Description | Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG BAIL Connector IDC 50 way Plug 2.16mm Champ I/O Connectors PLUG 50P BAIL LOCK 24-26 AWG Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT CHAMPIDCConnector;Plug,50Position;BailLock TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 直角 公 IDC 连接器 , 电缆安装 ASSY, PLUG, 50 POS, B SLOT |
| Category |
Business
| Product | Micro Ribbon Connectors | Lead Time | 28 Days |
| Subcategory | Connector Interface | Product Category | Connectors |
| Standard Package | Trays | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.16 mm | Height | 17.4 mm |
| Weight | 0.009 | Packaging | Tray |
| Thickness | Thin | Cable Type | 7 Strand, Solid |
| Wire Gauge | 24-26AWG(Solid),24AWG(Stranded) | Copper Type | B |
| Shield Type | No | Termination | IDC |
| 2nd Connector | With | Housing Color | Blue |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Connector Style | PB | Locking Feature | Bail Lock |
| Profile (W x H) | Standard | Contact Material | Copper Alloy |
| Housing Material | PPO | Length - Overall | 3.056" |
| Package Quantity | Tray | Panel Mount Type | Without |
| Primary Material | Industrial | Pin Hole Diameter | 0.085" |
| Termination Style | Wire | Number of Contacts | 50 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 1.14 [.045] Max. |
| Number of Positions | 50 | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 0.20² [24] | Wire Gauge or Range - mm2 | 0.51-0.40 [24-26] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IEEE 488 | Gender | PL |
| Series | :Champ | Features | Bail Lock |
| Manufacturer | CHAMPIDC | Product Type | Connector |
| Number of Ports | 1 Port | ||
Documents & Media
Similar Parts
5552725-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 50POS RT ANG I/O Connectors RECPT 50P STANDARD R.A. mnt selftapping Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,50POSITION,RIGHTANGE,SELF-TAPPING TE Connectivity CHAMP 系列 50路 直角 2.16mm节距 印刷电路板安装 印刷电路板插座, Champ 连接器 ASSY,RCPT,50 POSN, RTANG, PCB
229975-1
te connectivity / amp
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RCPT FLANG Connector,IEE488,receptacle,4-40,50w I/O Connectors RECPT 50P SCREW LOCK thick flange Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, SOCKET 50POS IDC/IDT CHAMPIDCConnector;ScrewLockReceptacle;50Position TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 直角 母 IDC D-sub 连接器 , 电缆安装 ASSY,RCPT,50POS,B SLOT,BLK HSG
5553921-1
te connectivity / amp
Conn IDC Connector F 50 POS 2.16mm IDT Cable Mount Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 50 POSN, B SLOT I/O Connectors LOCKING LATCH 50P receptacle black Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPCONNECTORASSY,ASSY,RCPT,50POSN,BSLOT
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
554090-1
te connectivity / amp
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH RECEPT-BAIL I/O Connectors RECPT 50P PANEL MNT low profile plastic Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CONNECTOR,RECEPTACLE,IDC,50POSITION,PANELMOUNT TE Connectivity CHAMP Latch 系列 2行 50路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 RCPT ASSY,50 POS,PANEL MTG,LPF
2-552008-1
te connectivity / amp

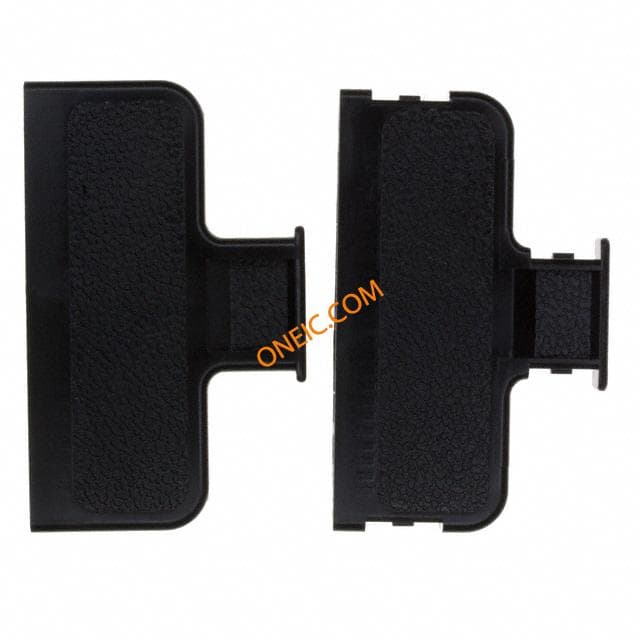

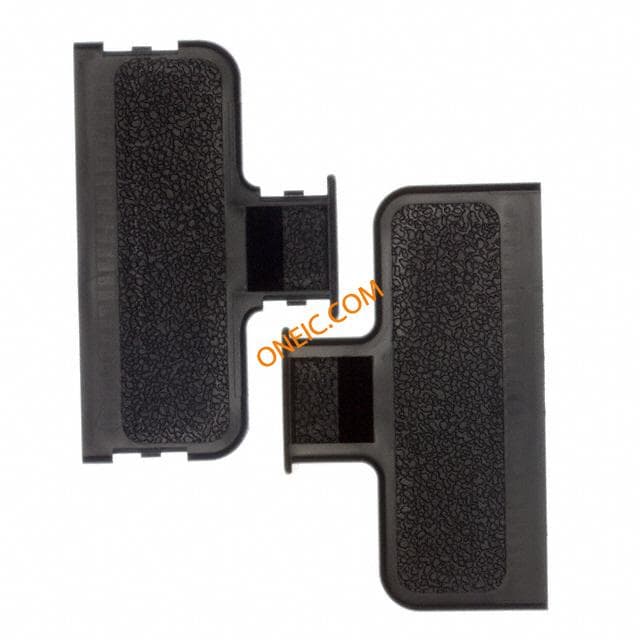

Connector Accessories Strain Relief Cover Kit Polyphenylene Oxide Black Bulk 2.16 [.085] Accessories and Hardware CONN CHAMP COVER 50 POS 180 DEG Headers & Wire Housings STRAIN RELIEF CVR 50 180 Snap-On Connector Accessories Strain Relief Cover Kit Polyphenylene Oxide Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 50Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics CHAMPIDC180degreeSnap-OnStrainReliefCover;50Position TE Connectivity 50路 10.92 mm 直径电缆 应力消除盖 , 使用于CHAMP 系列连接器 KIT, COVER, 180, 50 POS
