5229913-1
| Manufacturer | |
| Description | Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual 2.16 [.085] IDC Connectors CONNECTOR KITS Champ,rcp kit,B-slot,screw lock,50way I/O Connectors RCPT KIT 50 POS B SLOT Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPIDCCable-to-CableReceptacleKit;50Position;26-24AWG 2.16 [.085] IDC Connectors; Connector Classification: IDC Product Category: Connectors Kit Kit Type: Connector Kit 50 Positions TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 直角 母 IDC 连接器 , 电缆安装 KIT, RCPT, 50 POS, B SLOT |
| Category |
Business
| Product | Kits | Lead Time | 28 Days |
| Subcategory | Connector Interface | Product Category | Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Color | Black | Pitch | 2.16 mm |
| Weight | 0.023 | Packaging | Individual |
| Cable Type | 7 Strand, Solid | Wire Gauge | 24-26AWG(Solid),24AWG(Stranded) |
| Copper Type | B | Shield Type | No |
| Termination | IDC | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Cable Diameter | 0.35-0.425" |
| Connector Type | Receptacle | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | Free Hanging |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Profile (W x H) | Standard | Contact Material | Copper Alloy |
| Housing Material | PPO | Length - Overall | 3.28" |
| Package Quantity | Individual Kit | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.085" |
| Termination Style | Cable | Number of Contacts | 50 |
| Contact Termination | :IDC / IDT | Number of Positions | 50 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | 0.20² [24] |
| Wire Gauge or Range - mm2 | 0.51-0.40 [24-26] | 1st Connector Mounting Type | :Cable |
| Outside Cable Diameter (Min) | 8.89 â 10.80 [0.350 â 0.425] | ||
Product Info
| Type | IEEE 488 | Gender | RCP |
| Series | :- | Features | Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware |
| Manufacturer | CHAMPIDC | Product Type | Connector Kit |
| For Use With/Related Products | 229913-1 | ||
Environmental
| Protection Range | Without | ||
Similar Parts
556039-1
te connectivity / amp
Conn IDC Connector M 50 POS IDT Cable Mount Tray 2.16 [.085] IDC Connectors PLUG ASSY,50POS,SC/LK,CHAMP-LK I/O Connectors PLUG 50P SCREW LOCK large insulation Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
5552116-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG CHAMP 50POS VERT I/O Connectors PLUG 50P SCREW LOCK vertical mount Conn IEEE 488 PL 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,PLUG,CHAMP-LOK,50POSITION,PCB,VERTICAL 50 Position Dual Row Straight Plug Through Hole PCB Connector TE Connectivity CHAMP 系列 50路 直 2.16mm节距 印刷电路板安装 印刷电路板插座, Champ 连接器 ASSY, PLUG, 50 POS, VERT MTG
554337-1
te connectivity / amp
EMI PLUG ASSY, 50 POS, E SLOT CONN CHAMP PLUG 50POS .085 IDC Headers & Wire Housings EMI PLUG ASSY, 50 POS, E SLOT
229974-4
te connectivity / amp
Conn IDC Connector M 50 POS IDT RA Cable Mount Tray 2.16 [.085] IDC Connectors CONN CHAMP 50POS PLUG SCREW GRAY Conn IDC Connector M 50 POS 2.16mm IDT RA Cable Mount Tray Conn IDC Connector M 50 POS 2.16mm IDT RA Cable Mount Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY, PLUG, 50 POS, B SLOT
554758-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Headers & Wire Housings PLUG 50P EDGE MNT self retained term 2.16 [.085] Printed Circuit Board Connectors PLUG ASSY, 50 POSN, ACTION PIN Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
552390-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SCREW I/O Connectors PLUG 50P SCREW LOCK thick flange Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP-LOK 系列 2行 50路 2.16mm节距 公 IDC 连接器 , 电缆安装 ASSY, PLUG, 50 POS, E SLOT
229974-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SCREW I/O Connectors PLUG 50P SCREW LOCK thick flange Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT Connector,IDC;50-PinPlug;Unshielded;4-40Holes;B-Slot;RoHS ASSY, PLUG, 50 POS, B SLOT
552173-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 50 POS, C SLOT Headers & Wire Housings PLUG 50P SCREW LOCK 22AWG solid/stranded Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT CHAMPIDCConnector;Plug,50Position;ScrewLock TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 公 IDC 连接器 , 电缆安装
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
553444-4
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Headers & Wire Housings PLUG 50P EDGE MNT w/ACTION PIN 2.16 [.085] Printed Circuit Board Connectors ASSY PLUG,50 POSN, ACTION PIN Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR, ASSY PLU, 50 WAY PLUG ASSY,ACTION PIN,CHAMP-LOK
5229911-1
te connectivity / amp

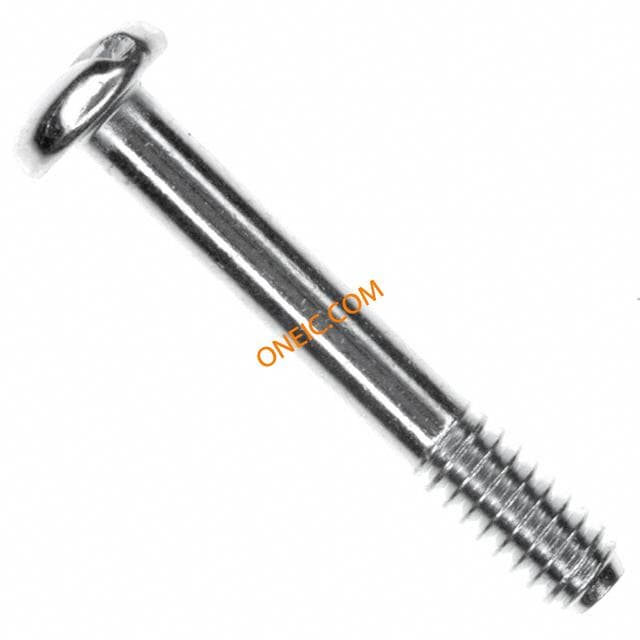

Connector Accessories Captive Pan Head Screw 2.16 [.085] Accessories and Hardware CONN JACKSCREW CAPTIVE #4-40 Screw Captive pan-head 4-40 CHAMP Screws & Fasteners 4-40 MOUNTING SCREW Connector Accessories Captive Pan Head Screw Product Highlights:Captive Pan Head ScrewCable-to-Cable Application, Panel Mount Application, PC Board-to-Cable ApplicationScrew Length = 19.05 mmThread Length = 6.35 mmSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics CHAMPIDCScrewLockHardwareKit;2RequiredperAssembly TE Connectivity UNC 4-40 槽式 Screw SCREW,PAN HD,''CHAMP PACKAGING
552686-1
te connectivity / amp
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP PLUG 50 POS VERT Headers & Wire Housings PLUG 50 POS B SLOT Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY, PLUG, 50 POS, B SLOT
553602-1
te connectivity / amp
Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 50P SCREW LOCK low profile plastic Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:Connector50 PositionsProduct Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT Connector,IDC;50-PinPlug;Unshielded;4-40Holes;Low-Profile;RoHS PLUG ASSY,50 POSN,SCR LK,L PF
5552561-3
te connectivity / amp

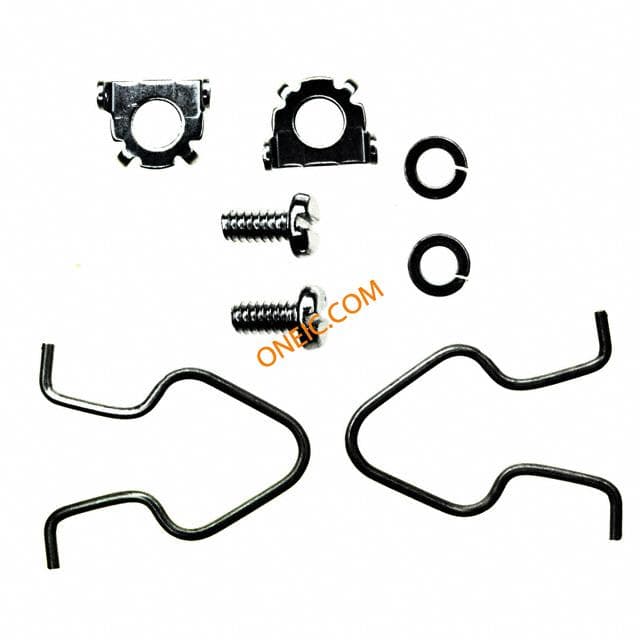

Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag 2.16 [.085] Accessories and Hardware CONN CHAMP BAIL LOCK KIT Hardware Kit, Bail lock CHAMP Headers & Wire Housings 085 IN. BAIL LOCK Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag Product Highlights:Hardware KitsHardware Type = Bail LockRight Angle Mount AngleCable-to-Cable Application, PC Board-to-Cable ApplicationSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics HardwareKit,CHAMPIC,BailLock TE Connectivity 5552561系列 硬件套件, 使用于180 度应力消除盖、ACTION PIN 连接器、CHAMP 闩锁薄型连接器、直角印刷电路板连接器 HDWARE ASSY KIT
